6v (6 Volt Max) Pre-Wired LEDs

6V pre-wired LEDs are built for projects powered by a 4×AA battery pack.

Read full description & FAQ ↓

19 Items

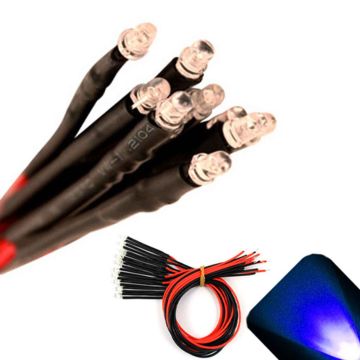

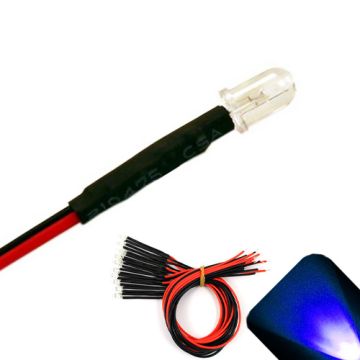

6V pre-wired LEDs are built for projects powered by a 4×AA battery pack. Four standard AA alkaline batteries in series produce 6V (4 × 1.5V = 6V), creating an inexpensive, widely available, and easy-to-replace power source. Each 6V pre-wired LED ships with a current-limiting resistor already soldered inline and 8 inches (20cm) of flexible stranded wire — drop the batteries into the holder, connect the red wire to positive and the black wire to negative, and the LED lights immediately. No soldering, no resistor calculations, no electronics knowledge required. We stock 6V pre-wired LEDs in 3mm and 5mm round-top sizes across the full color range: red, orange, amber, yellow, green, blue, white (warm and cool), UV, and pink.

Why choose 6V (4×AA battery power): AA batteries are the single most common consumer battery in the world. They are sold at every grocery store, gas station, dollar store, and pharmacy on the planet. A 4×AA battery holder with a built-in on/off switch costs under a dollar and provides a self-contained, family-safe power source — no wall adapters, no exposed mains wiring, no heavy 9V batteries. That accessibility makes 6V pre-wired LEDs the ideal choice for children’s craft projects, Cub Scout and Girl Scout STEM activities, classroom demonstrations, portable holiday decorations, toy modifications, and any battery-powered build where the user may not have access to specialty batteries or power supplies. A set of four quality AA alkaline batteries provides approximately 2500–3000mAh of capacity — far more than a 9V battery (~550mAh) — giving a single 20mA LED roughly 125–150 hours of continuous operation. That extended runtime makes 6V pre-wired LEDs practical for holiday displays that run for several weeks, permanent toy modifications, and always-on indicator lights in battery-powered equipment. For a complete comparison of when to use 6V vs. 9V vs. 12V, read the pre-wired LED voltage guide.

Children’s projects and STEM education: 6V pre-wired LEDs paired with a 4×AA battery holder create the safest and most approachable LED circuit for young learners. The 6V supply is well below any safety threshold, the AA batteries are familiar to every child, and the pre-wired LED requires no tools — just twist or clip the wires to the battery holder leads. Elementary teachers use them for basic circuit lessons: connect the LED to demonstrate a complete circuit, disconnect one wire to show an open circuit, add a second LED in parallel to demonstrate branching. Scout leaders use them for badge activities: build a simple flashlight, wire a cardboard robot with LED eyes, or create a light-up greeting card. Homeschool parents use them for kitchen-table experiments in the Snap Circuits tradition, but with real wire connections that introduce actual wiring skills. The soft 6V supply and 20mA current are completely safe for unsupervised use by children old enough to handle AA batteries (typically age 6+).

Toy modifications and portable crafts: Many battery-powered toys, handheld games, and flashlight-style devices run on 4×AA batteries internally. When a hobbyist wants to add LED eyes to a stuffed animal, LED headlights to a toy truck, a glowing power indicator to a homemade cardboard spaceship, or interior lighting to a model castle, a 6V pre-wired LED connects directly to the existing 4×AA battery compartment without any voltage conversion. Cosplayers building lightweight props sometimes prefer 4×AA over a 9V battery because AA cells distribute their weight across a longer holder, which can be shaped to follow the contour of a staff, sword handle, or armor piece — and the higher capacity (2500mAh vs. 550mAh) means the LEDs run all day at a convention without a battery change. Makers building light-up holiday ornaments, Mason jar lanterns, and decorative luminaries use 6V pre-wired LEDs with a small battery pack hidden in the base, providing weeks of intermittent use on a single set of AAs.

Vintage electronics and specialty equipment: Some older electronic devices, portable radios, and test instruments use a 6V supply rail derived from 4×AA or 4×C cell battery packs. A 6V pre-wired LED serves as a quick indicator light replacement in these systems without modifying the existing power circuit. Amateur radio operators building QRP (low-power) field kits that run from AA battery packs use 6V pre-wired LEDs as transmit and receive indicators. Geocache builders hide 6V pre-wired LEDs inside weatherproof containers powered by 4×AA — the high capacity batteries keep the LED glowing through weeks of outdoor exposure. Camping and survival kit builders use them as compact, long-lasting marker lights: a single warm white 6V pre-wired LED on 4×AA lithium batteries (rated for extreme temperatures) runs for 150+ hours and operates reliably from −40°F to 140°F.

NiMH rechargeable batteries: If you plan to use NiMH rechargeable AA batteries instead of disposable alkaline cells, note that each NiMH cell produces 1.2V instead of 1.5V, so four cells give 4.8V rather than 6V. The 6V pre-wired LED will still light at 4.8V — the reduced voltage simply means less current through the fixed resistor, so the LED will glow slightly dimmer than at full 6V. For most applications (indicators, ambient lighting, decorative accents) the brightness difference is barely noticeable. If maximum brightness is critical, use lithium AA cells (1.5V each, 6V total) or stick with alkaline. The pre-wired resistor protects the LED across the full expected voltage range of a 4×AA pack (4.8V NiMH to 6.4V fresh alkaline), so there is no risk of damage regardless of battery chemistry.

Related categories: If your project uses a 9V battery, 9V pre-wired LEDs are optimized for that voltage. For 12V power supplies, car batteries, or DCC model railroad track power, see 12V pre-wired LEDs — our largest selection with round top, flat top, diffused, and animated variants. For surface-mount LEDs small enough to hide inside LEGO bricks and Z-scale models, browse pre-wired SMD LEDs. For bare component LEDs where you choose your own resistor value, see component LEDs and use the LED resistor calculator to find the correct resistor for your supply voltage.

Frequently Asked Questions

No. Every 6V pre-wired LED includes a current-limiting resistor soldered inline on the wire, calculated for a 6V supply (4×AA alkaline batteries). Connect the red wire to positive and the black wire to negative — no external components needed.
A single 20mA pre-wired LED on four fresh alkaline AA batteries (~2500–3000mAh) will run for approximately 125–150 hours of continuous use. That is roughly 5–6 full days nonstop, or several weeks of intermittent evening use for holiday displays. Adding more LEDs in parallel divides the runtime proportionally: two LEDs give ~60–75 hours, five LEDs give ~25–30 hours.
Yes. Four NiMH rechargeable AA cells produce 4.8V (4 × 1.2V) instead of 6V. The LED will still light — just slightly dimmer than at full 6V because the lower voltage means less current through the fixed resistor. For most applications (indicators, decorative lighting, ambient glow) the difference is barely noticeable. The built-in resistor safely handles the full range from 4.8V (NiMH) to 6.4V (fresh alkaline).
Choose the voltage that matches your power source. 6V is ideal for 4×AA battery packs — AA batteries are the cheapest, most available battery type and offer far more capacity (~2500mAh) than a 9V battery (~550mAh). Use 9V pre-wired LEDs when a compact 9V battery is more convenient (science fairs, small props). Use 12V pre-wired LEDs for automotive, model railroad, and power supply applications. See the voltage guide for a detailed comparison.
It is not recommended. The built-in resistor is sized for 6V. Running on 9V will push significantly more current through the LED — roughly 50% more than rated — which shortens the LED’s lifespan and may cause premature failure. If your power source is a 9V battery, use 9V pre-wired LEDs. If your source is 12V, use 12V pre-wired LEDs.
The number refers to the lens diameter. 3mm (T-1 package) LEDs are smaller, fit tighter spaces, and are preferred for miniature craft projects and small enclosures. 5mm (T-1¾ package) LEDs are brighter, more visible, and easier for children to handle — the standard choice for science projects, toy modifications, and general-purpose indicators. Both draw the same 20mA, use the same wiring (red to +, black to −), and are available in the same range of colors.
