8mm LED Holders/Bezels

8mm LED holders and bezels are panel-mount clips designed specifically for 8mm straw hat LEDs.

Read full description & FAQ ↓

2 Items

8mm LED holders and bezels are panel-mount clips designed specifically for 8mm straw hat LEDs. Unlike the rounded-dome profile of standard 3mm and 5mm LEDs, straw hat LEDs have a wide, flat-top lens that emits light across a broad 100-120 degree viewing angle. This makes them ideal for applications where the LED needs to be visible from a wide range of directions — backlighting, wide-coverage indicator panels, and decorative installations where a soft, diffused glow is preferred over a tight, focused beam. These 8mm holders snap into an approximately 10mm (3/8") drilled hole and secure the straw hat LED flush with the panel surface.

The straw hat LED profile creates a distinct visual effect that differs from what you get with standard round-dome LEDs. Where a round-dome 5mm LED concentrates most of its light into a forward-facing beam (even diffused models have some fall-off at extreme angles), a straw hat LED distributes light much more evenly across its wide, flat emitting surface. When mounted in a holder and viewed from the front, an 8mm straw hat LED appears as a large, uniformly lit disc rather than a bright point. This makes it particularly effective for backlight applications where the LED sits behind a translucent panel, diffuser, or label and needs to illuminate the surface evenly. It is also useful for indicator applications where the panel is viewed from varying angles — the wide output ensures the indicator is clearly visible whether you are looking at it straight on, from the side, or from above.

Applications for 8mm straw hat holders overlap with both the 5mm indicator market and the 10mm decorative market, occupying a middle ground that appeals to builders who want more coverage than a 5mm LED but do not want the large 12mm mounting hole required by 10mm holders. Automotive modders use 8mm straw hat LEDs in dashboard and console accent lighting, where the wide viewing angle illuminates a broader area behind translucent gauge cluster lenses. Control panel builders use them for high-visibility status indicators that need to be readable from a wider range of positions than a standard 5mm indicator allows. Model railroad builders use 8mm straw hat LEDs for building interior lights mounted in the roof of scale structures — the wide output angle fills the building interior with light instead of creating a harsh downward spot like a narrow-beam 5mm LED would.

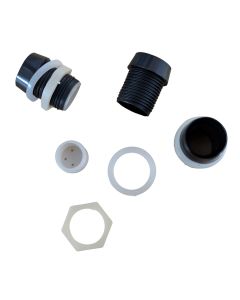

Installing an 8mm holder requires an approximately 10mm (3/8") mounting hole. A 3/8" drill bit is a standard size in most sets, making this a convenient dimension. For metal panels, center-punch the location, drill a pilot hole, step up to 10mm, and deburr the edges. For wood and plastic, drill at moderate speed with a standard twist bit. The holder presses in from the front of the panel, and the rear tabs or retainer lock against the back face. The straw hat LED then presses into the holder from the front — the flat-top profile sits flush with the bezel opening, creating a clean, finished look that is slightly different from the protruding dome of a standard round LED in its holder. Some builders prefer the flush straw hat aesthetic precisely because the LED does not extend beyond the panel surface, reducing the risk of physical damage to the lens.

Color selection for 8mm straw hat LEDs follows the same logic as other LED sizes, but the wide viewing angle of the straw hat lens makes color temperature and tint especially important for backlighting applications. Warm white straw hat LEDs (~3000-4000K) produce a soft, incandescent-like glow that works well behind warm-toned diffuser panels and in decorative applications where a cozy, inviting look is desired. Cool white (~5500-6500K) gives a crisp, modern appearance for instrument backlighting and status panels. Red, green, blue, amber, and other colors are available for standard indicator use. All 8mm straw hat LEDs in our component LED catalog use the same body diameter and fit these holders regardless of color or manufacturer.

Pairing 8mm holders with the right power setup completes the installation. Bare 8mm straw hat LEDs require a current-limiting resistor appropriate for the LED's forward voltage and your supply voltage — use our LED resistor calculator to find the exact value. Solder the resistor to one of the LED leads, attach hookup wire, and cover all connections with heat-shrink tubing before mounting the LED in its holder. For the simplest installation, pre-wired LEDs include the resistor and wire leads already attached — check our pre-wired selection for 8mm options. New to LEDs? Pre-wired LEDs are the easiest starting point — the resistor is already built in, so you just connect power and ground.

The 8mm holder fills the gap between our 5mm holders (the most popular general-purpose size) and 10mm holders (for maximum visual impact). If you are deciding between an 8mm straw hat and a standard 5mm LED for a given application, the key questions are: does the indicator need to be visible from a wide range of angles (favor 8mm straw hat), and do you want the LED to sit flush with the panel surface (favor 8mm straw hat) or protrude slightly with a rounded dome (favor 5mm standard)? For projects that use multiple LED sizes — indicator panels with both status dots and backlighting zones, for example — you can combine 5mm, 8mm, and 10mm holders on the same panel with consistent snap-in installation across all sizes. Browse the holder products below and see our 3mm and 10mm holder categories for additional sizes.

Frequently Asked Questions

An 8mm LED holder requires approximately a 10mm (3/8”) mounting hole. A standard 3/8” drill bit works for wood and plastic panels. For metal, use a center punch first and drill at moderate speed, or use a step drill bit for the cleanest results. Deburr the edges before pressing the holder into place.
A straw hat LED has a wide, flat-top lens profile (resembling a straw hat) instead of the rounded dome of a standard 3mm or 5mm LED. The 8mm body diameter is wider than a standard 5mm LED, so it does not fit in a 5mm holder — it requires its own 8mm-sized holder and mounting hole. The flat-top lens distributes light across a wide 100–120° viewing angle, making straw hat LEDs ideal for backlighting, wide-coverage indicators, and building interior lighting in model railroad layouts.
No — 8mm straw hat LEDs have a wider body diameter than standard 5mm LEDs and will not fit into a 5mm holder. You need an 8mm holder with a 10mm (3/8”) mounting hole. Always match the holder size to the LED diameter: 3mm LEDs use 3mm holders, 5mm LEDs use 5mm holders, 8mm straw hats use 8mm holders, and 10mm LEDs use 10mm holders.
Not necessarily in terms of total light output, but straw hat LEDs spread their light over a much wider area. A clear-top 5mm LED may have a higher peak brightness (millicandela) measured straight ahead because it concentrates its beam into a tight 15–30° angle. A straw hat LED distributes comparable total output across 100–120°, so it appears less intense head-on but is visible from a much wider range of positions. For backlighting and wide-coverage indicator applications, the straw hat is the better choice despite its lower peak mcd rating.
Straw hat LEDs excel in backlighting (behind translucent panels, gauge clusters, and diffuser sheets), model railroad building interiors (the wide angle fills rooms with light instead of creating harsh spots), automotive accent lighting where the LED illuminates a broad area behind a dashboard or console panel, and high-visibility status indicators that need to be readable from multiple directions. They are also popular for decorative projects where a soft, uniform glow is preferred over a tight spotlight beam.
Yes — like all standard component LEDs, 8mm straw hat LEDs require a current-limiting resistor unless you are using a pre-wired version that already includes one. Use our LED resistor calculator to find the correct resistor value for your supply voltage and the LED’s forward voltage. Without a resistor, the LED will overdraw current and burn out immediately.
