3mm 6v Pre-Wired Blue LED - Ultra Bright (4v, 5v, 6v)
In stock
- SKU
- 6V3MMPREWIREDBLUE
- Color
- Blue
- Size
- 3mm Pre-Wired Round Top
Description / 3mm 6v Pre-Wired Blue LED - Ultra Bright (4v, 5v, 6v)

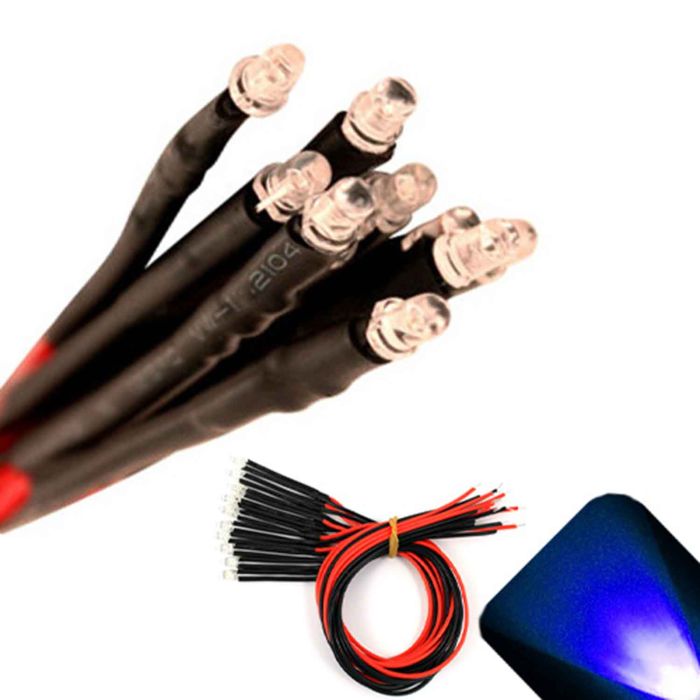

The 3mm 6V Pre-Wired Blue LED ships ready to install with Approximately 15cm (6 inches) leads and a built-in current-limiting resistor. Connect directly to USB power bank (5V), 4×AA battery pack (6V), Lemax Christmas village adapter (4.5V), Arduino 5V pin, or Raspberry Pi GPIO — no resistor calculation and no extra components needed. A crisp blue for accent lighting, cosplay prop effects, and arduino/maker project indicators.
Blue is the go-to accent color for cosplay armor, sci-fi props, and modern electronics builds. Also used for aquarium moonlighting effects.

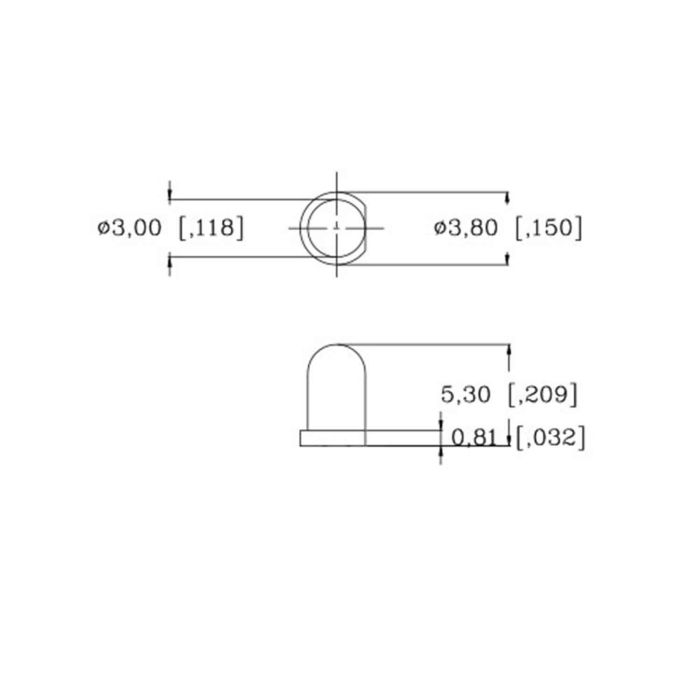

The 3mm (T-1) head is the smallest standard DIP size — scales realistically at HO (1:87) and N (1:160) scale. Small enough to hide inside model structures, dollhouses, and tight enclosures. Fits all standard 3mm LED holders and bezels.
| Size | 3mm (T-1) |
| Operating Voltage | 3V – 6V DC (3V, 4V, 5V, and 6V) |
| LED Forward Voltage | 4v-6v (volts) |
| Drive Current | 20mA typical |
| Brightness | 10,000-12,000mcd |
| Viewing Angle | 20-30 Degrees |
| Wire | Approximately 15cm (6 inches) leads, heat-shrink protected connections |
| Resistor | Built-in — no external resistor needed |
Designed for
- Christmas village displays: Compatible with Lemax 4.5V DC adapters. Light up building interiors, storefronts, and scene accessories with a warm, even glow. Most village builders use 10–30 LEDs per display scene.
- USB-powered projects: Connect to any 5V USB power bank, wall adapter, or computer port for portable displays, desk builds, and travel dioramas.
- Arduino and Raspberry Pi: Direct-connect indicator for 5V GPIO output or 3.3V logic — no breadboard resistor needed. Simplifies wiring for beginner maker projects.
- Dollhouse and miniature interiors: 3mm head fits 1:12 scale rooms without overwhelming the space. Battery-powered (4×AA pack = 6V) for cord-free operation.
- Cosplay and props: Hide a 4×AA battery pack inside a costume piece and wire directly — no resistor calculations, no bulky controllers. Blue and white are the most popular for armor and weapon glow effects.
- Portable dioramas and displays: Battery-powered military, architectural, and scale model displays for shows, competitions, and trade presentations.
Note: Department 56 village accessories use 2.5–3V adapters, which are at the very bottom of this LED’s operating range. We recommend our standard component LEDs with a matching resistor for Department 56 builds.
Wiring
Red wire = positive (+). Black wire = negative (−). Reversing the wires will not damage the LED, but it will not light. Factory leads are Approximately 15cm (6 inches) leads with heat-shrink protected joints. For wiring tips, extending leads, and connecting multiple LEDs, see our Pre-Wired LED Voltage Guide.
Which voltage do I need?
Not sure which voltage tier matches your power source? See our complete Pre-Wired LED Voltage Guide — covers automotive, model railroad, USB, Arduino, Christmas village, guitar pedal, and battery-powered projects with a quick-reference table.
Department 56 village accessories use 2.5–3V adapters, which are below the operating range of these pre-wired LEDs.
Complete your project
- Hook-up wire — extend your leads with 24–26 AWG stranded wire, splice with solder + heat shrink
- Switches — toggle, rocker, and mini slide for on/off control
- Power supplies — wall adapters and battery holders for your voltage
- 3mm LED Holders / Bezels — snap-in panel-mount clips
- Heat shrink tubing — protect extended wire joints
Frequently Asked Questions
Sold individually (1 LED per quantity ordered).
More Information
| Size | 3mm Pre-Wired Round Top |
|---|---|
| Color | Blue |
| Operating Voltage | 4v-6v (volts) |
| Wire Length | Approximately 15cm (6 inches) |
| Resistor Built In | Yes |
| Additional Resistors Required | No |
| Luminosity/Brightness | 10,000-12,000 mcd |
| Forward Voltage | 4v-6v (volts) |
| Shrink Wrapped Connections | Yes |
| Current | 20mA |
| Wavelength | 460-465nm |
| Viewing Angle | 20-30 Degrees |
| Mount Style | Custom |
| Lens Color | Clear |
| LED Brightness Class | Super/Ultra/Extreme |
