3mm 6v Pre-Wired Pure Green LED - Ultra Bright (4v, 5v, 6v)


Availability: In stock


Quick Overview

The 6v 3mm pure green pre-wired LED makes it almost the easiest way to add light nearly any project.

3mm 6v Pre-Wired Pure Green LED - Ultra Bright (4v, 5v, 6v)

More Views


Our pre-wired LEDs are nothing but quality. The 6v 3mm pure green led puts out a nice color that is sure the illuminate your product or project. Our 3mm pre-wired leds have built in resistors so that they will work with the voltage that they are rated for. There is no need for you to add any additional resistors. The only thing you need to do is add power / ground and they will illuminate. It doesn't get much easier than that.

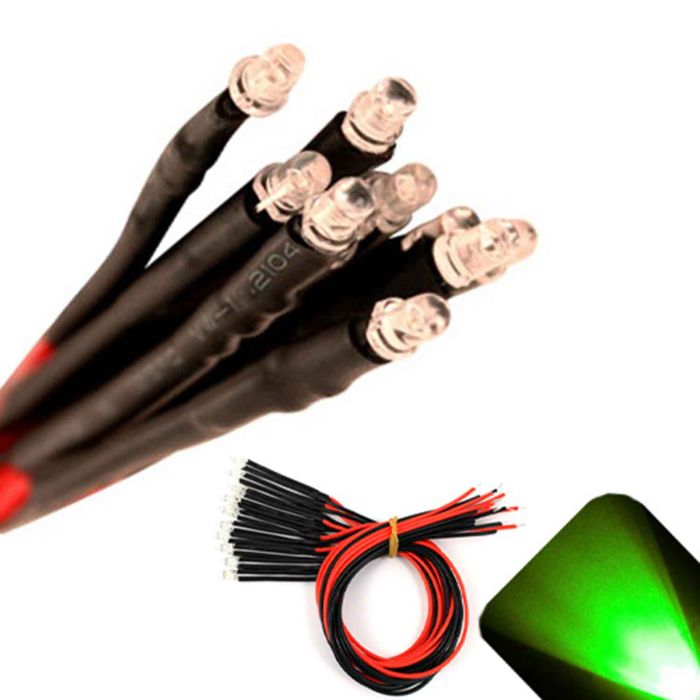

The 3mm pre-wired leds come with a built in resistor, all connections are heat shrinked in order to protect them and there is sufficient wire lead on all of them.

This single setup works well with the following voltages (you don't have to select a voltage when ordering): 4v, 5v, and 6v. If you are looking for a higher voltage setup then take a look at our 9v or 12v pre-wired LEDs that go up to 15v.

Additional Information

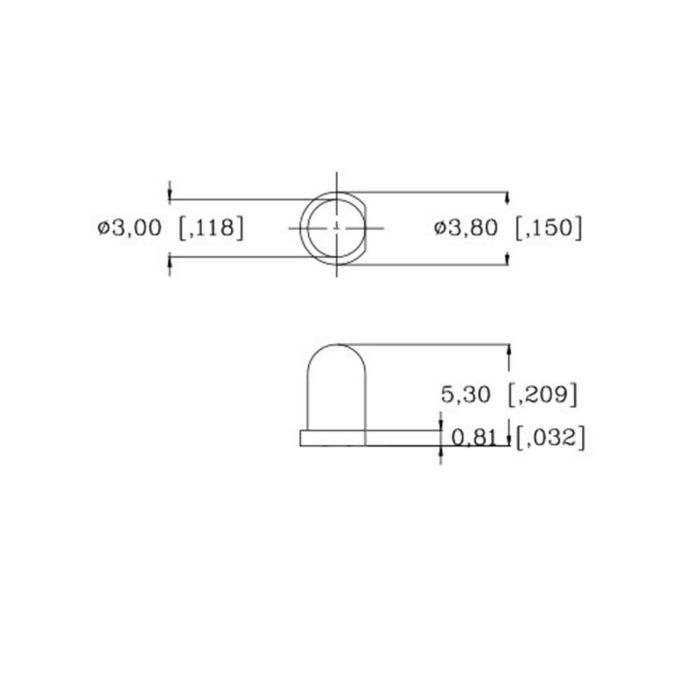

Size 3mm Pre-Wired Round Top
Color Pure Green
Operating Voltage 4v-6v (volts)
Wire Length Approximately 15cm (6 inches)
Resistor Built In Yes
Additional Resistors Required No
Luminosity/Brightness 10,000-12,000 mcd
Forward Voltage 4v-6v (volts)
Shrink Wrapped Connections Yes
Current 20mA
Wavelength 515-525nm
Viewing Angle 20-30 Degrees
Mount Style Custom
Lens Color Clear
LED Brightness Class Super/Ultra/Extreme
