Fiber Optics

Fiber optic lighting delivers light anywhere a bare wire or LED physically cannot reach.

Read full description & FAQ ↓

9 Items

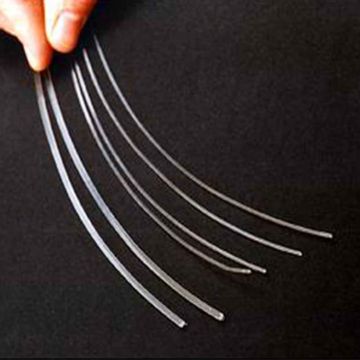

Fiber optic lighting delivers light anywhere a bare wire or LED physically cannot reach. A single LED or illuminator pumps light into one end of a flexible PMMA (acrylic) optical fiber, and that light travels the full length of the strand with minimal loss, emerging at the tip or along the surface depending on the fiber type. The fiber itself carries no electrical current, generates no heat at the emission point, and poses no shock risk — making it uniquely suited for wet locations, confined spaces, children's sensory rooms, and installations where code prohibits live electrical connections at the light-exit point. We stock fiber optic filament in two fundamental types: end-glow fiber, which emits light only from its polished tip, and side-glow fiber, which radiates light along its entire length like a luminous line. Browse the Fiber Optic Filament subcategory to find the right diameter and glow type for your project.

End-glow fiber is the backbone of star ceiling installations — the single most popular fiber optic project for both DIY builders and professional installers. Hundreds or even thousands of individual fiber strands are bundled at the illuminator end, then routed through a ceiling panel so each strand tip protrudes as a tiny point of light on the finished surface. One high-output white LED can drive an entire bundle, and swapping to an RGB color-cycling LED turns a static starfield into a slowly shifting aurora. Strand diameters from 0.25mm to 3.0mm let you mix apparent star sizes in the same panel for a realistic night-sky effect. The fibers themselves are nearly invisible during daylight hours — only the pinpoint tips are exposed — so the ceiling looks clean and uncluttered when the lights are off. Because the LED driver can be mounted in an accessible attic or closet space, maintenance never requires touching the finished ceiling surface.

Side-glow fiber is the less common but visually dramatic option. Instead of concentrating all emission at the tip, the fiber's cladding is engineered (or mechanically scored) to leak light continuously along its length, producing a glowing line that looks similar to EL wire or neon tubing but is far easier to drive — any standard LED serves as the light source, no high-voltage inverter required. Side-glow fiber is popular for Tron-style costumes and cosplay, pool and spa edge lighting, bar countertop accent lines, stair-riser outlines, and architectural contour lighting where a continuous luminous line is the desired effect. It can be cut to length, bent around moderate curves, and driven in either white or color-changing modes depending on the source LED.

The key specification when choosing fiber optic filament is the outer diameter. Thinner fibers (0.25mm, 0.50mm, 0.75mm) are extremely flexible and nearly invisible when unlit, making them the standard choice for dense star ceiling layouts and miniature model lighting — model railroad builders use 0.25mm fiber to simulate lit windows and signal lamps at HO and N scale. Thicker fibers (1.5mm, 2.0mm, 2.5mm, 3.0mm) transmit substantially more light per strand, producing brighter individual points but sacrificing some flexibility and requiring wider drill holes in mounting panels. A 3.0mm fiber driven by a high-output white LED produces a remarkably bright endpoint that can serve as a task-level reading light in a headliner or a conspicuous indicator in a control panel. For star ceilings, most builders use a mix of 0.75mm and 1.0mm fiber with a handful of 1.5mm or 2.0mm strands scattered in to simulate brighter first-magnitude stars.

Coupling the fiber bundle to the LED source is straightforward: strip the fiber jackets (if any), gather the polished ends into a tight bundle, and press them against the LED lens face inside a short heat-shrink sleeve or a drilled ferrule. Clear-top DIP LEDs with narrow beam angles (15-30 degrees) are the best coupling partners because they concentrate output into the fiber acceptance cone. For large bundles or long runs, a dedicated fiber optic illuminator with a focused lens and heat sink delivers more lumen throughput than a bare LED. Color selection is entirely determined by the source — swap the LED and the entire bundle changes color instantly, no need to replace any fiber. RGB LEDs or color-cycling animated LEDs let you shift through the spectrum automatically.

PMMA plastic optical fiber handles indoor temperatures without issue, but prolonged outdoor UV exposure will yellow the material and reduce transmission over time. For permanent outdoor installations (pool edges, landscape accent), protect exposed fiber runs with UV-stabilized conduit or select UV-rated fiber if available. Indoor installations are virtually maintenance-free — PMMA fiber does not degrade under interior lighting conditions and can last decades. The fibers can be cut with sharp scissors, a hobby knife, or a purpose-built fiber cutter. After cutting, polishing the end face with fine-grit sandpaper (400-grit wet, then 800-grit) or briefly flame-polishing with a lighter produces a smooth, optically clear surface that maximizes light output at the tip. Rough-cut ends scatter light and appear dimmer — a quick polish makes a visible difference.

Fiber optic lighting requires no electrical knowledge at the emission point, making it one of the safest lighting methods for wet areas, children's rooms, and decorative installations where exposed wiring is a concern. Pair your chosen fiber with a component LED or pre-wired LED as the light source, and you have a complete system with no transformers, no high-voltage connections, and no heat at the light output. Browse Fiber Optic Filament to select your diameter and glow type, then match it with a source LED from our clear top DIP LED selection for the tightest optical coupling.

Frequently Asked Questions

End-glow fiber transmits light through its core and emits it only from the polished tip at the far end. The fiber itself appears dark along its length. This is the type used for star ceilings, model railroad signal lights, and any application where you need a precise point of light at a remote location. Side-glow fiber emits light along its entire length, creating a continuous glowing line similar to neon tubing or EL wire. Side-glow is used for contour lighting, pool edges, costume accents, and architectural outlines where a luminous line is the desired effect.
A clear-top DIP LED with a narrow beam angle (15-30 degrees) provides the best coupling efficiency because it concentrates its output into the fiber's acceptance cone. For single-strand or small-bundle applications, a standard 5mm clear white LED paired with a current-limiting resistor works well. For large star ceiling bundles (50+ strands), use a high-output LED or dedicated illuminator module with a focusing lens. To change the color of the entire fiber bundle, simply swap the source LED — the fiber transmits whatever color is fed into it.
Cut the fiber cleanly with sharp scissors, a hobby knife, or a dedicated fiber cutter — avoid crushing or tearing. After cutting, polish the end face by wet-sanding with 400-grit sandpaper followed by 800-grit, or briefly flame-polish by passing the tip through a lighter flame for one to two seconds (just long enough to melt the surface smooth without melting the fiber body). A polished end face can transmit 30-50% more light than a rough-cut end. Always polish both ends — the coupling end (where the LED meets the fiber) and the emission end (the visible tip).
Most star ceiling builders use a mix of diameters for a realistic look. The bulk of the field (70-80% of strands) is typically 0.75mm or 1.0mm fiber. Scatter in 10-15% of 1.5mm strands for medium-brightness stars, and 5-10% of 2.0mm or 2.5mm strands for the brightest anchor stars. Use 0.25mm or 0.50mm fiber for very faint, dense background stars if desired. Mixing diameters creates the depth and variation of a real night sky rather than a uniform grid of identical dots.
Yes — fiber optic filament carries no electrical current, so it is inherently safe in wet and submerged environments. The fiber tips can be embedded in pool walls, spa surrounds, fountain basins, and outdoor landscape features with no shock risk. However, standard PMMA fiber will yellow over time with prolonged UV exposure. For permanent outdoor installations, protect exposed fiber runs with UV-stabilized conduit or tubing. The LED light source must still be housed in a dry, protected enclosure — only the passive fiber strands go into the wet zone.
Side-glow fiber optic filament produces a similar continuous-line glow effect as EL wire but has several advantages for wearable projects. Fiber is driven by a simple LED and battery — no high-voltage AC inverter needed, which eliminates the audible whine that EL wire inverters produce. Fiber is also brighter per unit length than most EL wire, does not degrade in brightness as quickly over time, and can be driven in any color by simply changing the source LED. The main trade-off is that fiber is slightly stiffer than EL wire in equivalent diameters, so very tight bends require thinner strands.
