1206 Pre-wire SMD LEDs 9-18v

1206 pre-wired SMD LEDs are the largest surface-mount package in our pre-wired lineup, measuring approximately 3.2mm x 1.6mm.

Read full description & FAQ ↓

9 Items

1206 pre-wired SMD LEDs are the largest surface-mount package in our pre-wired lineup, measuring approximately 3.2mm x 1.6mm. That extra surface area makes the 1206 the easiest pre-wired SMD to handle, position, and glue into place, which is why it has become the go-to choice for modelers who want the brightness and flat profile of a surface-mount LED without the microscopic challenge of working with pico or nano packages. Each LED ships with ultra-thin magnet wire (enameled copper) already soldered to the pads. The wire is flexible enough to thread through tight spaces in a model railroad building, a dollhouse room box, or a LEGO interior, yet strong enough to hold a secure solder joint once you sand or scrape the enamel coating from the tips. Every order ships as a pack of 5 LEDs with matched wire lengths, giving you enough units to light an entire structure or scene in a single purchase.

The 9-18V operating range means these LEDs include an integrated current-limiting resistor on the wire, so you can connect them directly to a 9V battery, a 12V DC power supply, or DCC track voltage (after rectification) without any additional components. That voltage flexibility is critical for model railroaders who run DCC systems at 12-16V, architectural modelers powering scenes from a 12V wall adapter, and diorama builders who want to use a single 9V battery to light multiple LEDs in parallel. The built-in resistor eliminates the most common point of failure in miniature lighting projects: miscalculating resistance values and burning out an LED that took twenty minutes to install. You connect positive and negative, and the LED lights up at its rated brightness immediately.

Because the 1206 package is large enough to see clearly with the naked eye, it is particularly well suited to applications where the LED itself will be partially visible. Model railroaders use 1206 pre-wired SMDs to light platform canopies, station interiors, and signal bridges where the LED sits in a shallow recess and the broad, even light output fills the space naturally. Dollhouse builders favor the 1206 for ceiling fixtures and wall sconces because the flat package can be recessed into a foam-core or basswood ceiling with a drop of CA glue, producing a convincing overhead light source without the bulk of a through-hole LED. LEGO builders use 1206 LEDs to illuminate modular building interiors, positioning the LED behind a translucent brick or window element where the 3.2mm width fits comfortably within the stud grid. Diorama and wargaming terrain builders mount 1206 LEDs inside ruined buildings, campfire scenes, and sci-fi consoles where the slightly larger glow adds visual interest at tabletop viewing distance.

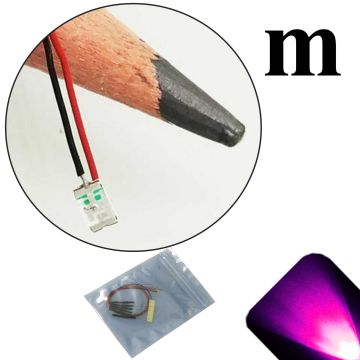

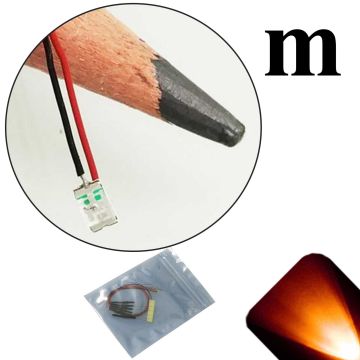

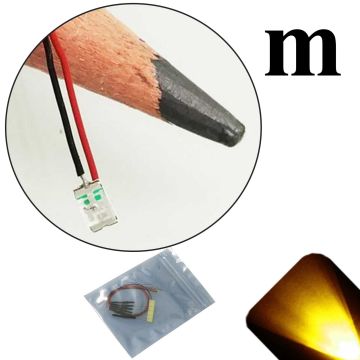

The color range available in the 1206 pre-wired format covers the most common miniature lighting needs. Warm white is the default choice for interior lighting in HO, N, and O scale structures because it replicates the soft, yellowish tone of incandescent bulbs. Cool white works well for modern or commercial buildings, fluorescent-style lighting effects, and any scene set in a contemporary era. Red and green 1206 LEDs are used for signal lights, vehicle brake and marker lamps, and holiday-themed displays. Blue serves as moonlight ambiance, emergency vehicle accents, and electronic-panel glow effects. Each product page lists the exact peak wavelength in nanometers and the typical luminous intensity, so you can match colors precisely when mixing LEDs from different orders or building color-coded indicator systems.

Installation follows the same process as all pre-wired SMDs, but the 1206's larger size makes each step more forgiving. First, plan the wire routing path through your model, drilling small holes where the wire will pass from the LED mounting surface to the underside where connections are made. Apply a small dot of CA glue (cyanoacrylate) or white glue to the mounting location and press the LED into position, holding it for a few seconds until the adhesive sets. The flat bottom of the 1206 package sits flush against most surfaces, so no additional mounting hardware is needed. Route the magnet wire along interior walls, through floors, or along structural members, keeping it out of sight lines. At the connection end, sand approximately 5-10mm of enamel coating from each wire using fine-grit sandpaper or a hobby knife until you see bright copper. Tin the exposed copper with solder, then connect to your power bus. If you are running multiple LEDs in parallel from the same power supply, each LED has its own built-in resistor, so you can wire them all to a common positive and negative rail without additional per-LED resistance calculations.

For power source selection, a regulated 12V DC adapter is the most common choice for permanent installations. Model railroaders running DCC should add a bridge rectifier between the track bus and the LED leads to convert the alternating DCC signal to smooth DC. A 9V battery works well for portable dioramas and competition display pieces where you need a self-contained power source. The 9-18V tolerance means you do not need to match the supply voltage precisely, which simplifies wiring when tapping into existing layout power buses that may vary under load. Browse the full pre-wired SMD LED collection for smaller packages, or explore animated pre-wired LEDs for flashing and flickering effects that add motion to static scenes.

Compared to the smaller 0805 and 0603 packages, the 1206 trades compactness for ease of use. In N scale (1:160), a 1206 LED is roughly equivalent to a 500mm (half-meter) square light fixture, which is realistic for a ceiling panel light or a large wall-mounted fixture. In HO scale (1:87), it scales to about 280mm, still a reasonable size for a ceiling light or illuminated sign. In O scale (1:48), the 1206 virtually disappears, making it ideal for hidden interior lighting. If your project demands an even smaller light source for tight spaces or higher scale accuracy, step down to the 0805 or 0603 pre-wired SMD LEDs. For projects where the LED needs to be completely invisible at viewing distance, consider the 0402 pico package. All pre-wired SMD packages share the same 9-18V input range and magnet wire connection method, so you can mix sizes within a single project and power them all from the same bus.

Frequently Asked Questions

The magnet wire on pre-wired SMD LEDs is coated with a thin layer of enamel insulation that must be removed before soldering. Use fine-grit sandpaper (400+), a hobby knife, or a soldering iron blob method to strip approximately 5–10mm of enamel from the wire tips. Once you see bright copper, tin the exposed end with solder. The wire will then accept solder joints to bus wires, terminal strips, or header pins just like standard hookup wire. The 1206 package has the largest solder pads of any pre-wired SMD, so the factory wire bond is the most robust in the lineup.
No. Every pre-wired SMD LED in this category includes a current-limiting resistor built into the wire lead. You connect the LED directly to any DC power source between 9V and 18V without adding an external resistor. This is the primary advantage of pre-wired LEDs over bare component LEDs — no resistor math, no extra parts, and no risk of overcurrent damage.
The numbers refer to the LED body dimensions in imperial units (hundredths of an inch). A 1206 measures 3.2mm x 1.6mm and is the largest and easiest to handle. An 0805 is 2.0mm x 1.25mm, still manageable with tweezers. An 0603 is 1.6mm x 0.8mm, tiny enough to hide in N scale structures. An 0402 is just 1.0mm x 0.5mm — nearly invisible to the naked eye. Choose based on how much space you have and how visible the LED can be in your finished model. All four packages are available as pre-wired SMD LEDs with the same 9–18V operating range.
Yes, but DCC track power is not pure DC — it is a bipolar square wave. You need a bridge rectifier (such as the MB1S) to convert the signal to DC before feeding it to the LED. DCC track voltage typically runs between 12V and 16V, which falls within the 9–18V operating range of these pre-wired LEDs. See the voltage guide for wiring diagrams and recommended components.
Apply a tiny drop of CA glue (cyanoacrylate / super glue) or white PVA glue to the mounting surface and press the flat bottom of the 1206 package into it. The LED will bond within seconds with CA glue or a few minutes with PVA. Route the magnet wire along walls, through pre-drilled holes in floors, or behind structural elements to keep it hidden. For ceiling-mounted lights, glue the LED face-down and consider adding a small square of diffusion material (tissue paper, frosted tape) to spread the light evenly across the room below.
Each pre-wired SMD LED draws approximately 20mA. A typical 12V 1A power supply can handle up to 50 LEDs wired in parallel. A 12V 2A supply supports approximately 100 LEDs. Because each LED has its own built-in resistor, you simply connect all positive wires to the positive rail and all negative wires to the negative rail — no per-LED resistance calculations needed. For large layouts with dozens of LEDs, use a power bus with solder terminal strips to keep connections organized and serviceable.
