3mm 6v Pre-Wired UV / Purple LED - Ultra Bright (5v, 6v)

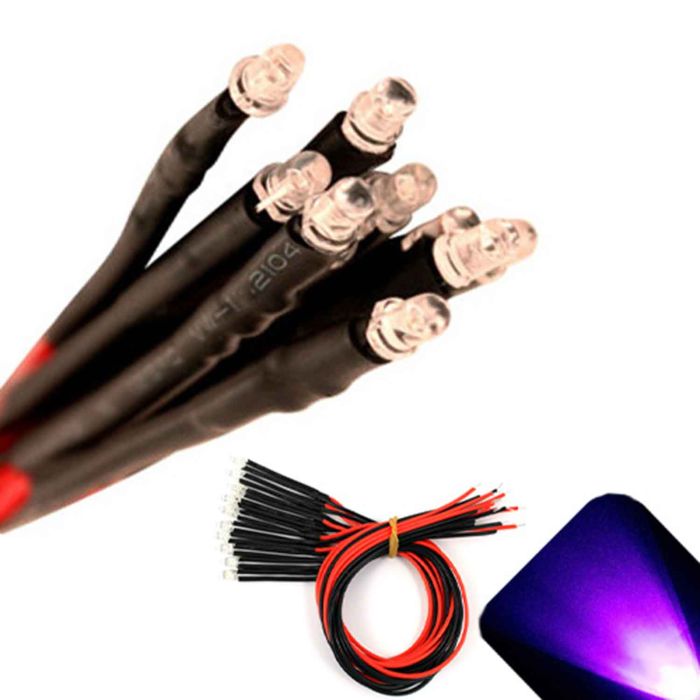

The 3mm 6V Pre-Wired UV Purple LED ships ready to install with Approximately 15cm (6 inches) leads and a built-in current-limiting resistor. Connect directly to USB power bank (5V), 4×AA battery pack (6V), Lemax Christmas village adapter (4.5V), Arduino 5V pin, or Raspberry Pi GPIO — no resistor calculation and no extra components needed. A uv/purple for blacklight effects, escape room props, and fluorescent material activation.

UV/purple creates blacklight effects that activate fluorescent paints, inks, and materials. A staple in escape room puzzles and cosplay glow effects.

The 3mm (T-1) head is the smallest standard DIP size — scales realistically at HO (1:87) and N (1:160) scale. Small enough to hide inside model structures, dollhouses, and tight enclosures. Fits all standard 3mm LED holders and bezels.

Designed for

• Christmas village displays: Compatible with Lemax 4.5V DC adapters. Light up building interiors, storefronts, and scene accessories with a warm, even glow. Most village builders use 10–30 LEDs per display scene.
• USB-powered projects: Connect to any 5V USB power bank, wall adapter, or computer port for portable displays, desk builds, and travel dioramas.
• Arduino and Raspberry Pi: Direct-connect indicator for 5V GPIO output or 3.3V logic — no breadboard resistor needed. Simplifies wiring for beginner maker projects.
• Dollhouse and miniature interiors: 3mm head fits 1:12 scale rooms without overwhelming the space. Battery-powered (4×AA pack = 6V) for cord-free operation.
• Cosplay and props: Hide a 4×AA battery pack inside a costume piece and wire directly — no resistor calculations, no bulky controllers. Blue and white are the most popular for armor and weapon glow effects.
• Portable dioramas and displays: Battery-powered military, architectural, and scale model displays for shows, competitions, and trade presentations.

Note: Department 56 village accessories use 2.5–3V adapters, which are at the very bottom of this LED’s operating range. We recommend our standard component LEDs with a matching resistor for Department 56 builds.

Wiring

Red wire = positive (+). Black wire = negative (−). Reversing the wires will not damage the LED, but it will not light. Factory leads are Approximately 15cm (6 inches) leads with heat-shrink protected joints. For wiring tips, extending leads, and connecting multiple LEDs, see our Pre-Wired LED Voltage Guide.

Which voltage do I need?

Not sure which voltage tier matches your power source? See our complete Pre-Wired LED Voltage Guide — covers automotive, model railroad, USB, Arduino, Christmas village, guitar pedal, and battery-powered projects with a quick-reference table.

Department 56 village accessories use 2.5–3V adapters, which are below the operating range of these pre-wired LEDs.

Complete your project

• Hook-up wire — extend your leads with 24–26 AWG stranded wire, splice with solder + heat shrink
• Switches — toggle, rocker, and mini slide for on/off control
• Power supplies — wall adapters and battery holders for your voltage
• 3mm LED Holders / Bezels — snap-in panel-mount clips
• Heat shrink tubing — protect extended wire joints

Sold individually (1 LED per quantity ordered).
