PLCC2 / 3528 Pre-wire SMD LEDs 9-18v

PLCC2 / 3528 pre-wired SMD LEDs occupy a unique position in the pre-wired lineup: the 3528 package (3.5mm x 2.8mm) is one of the most recognizable…

Read full description & FAQ ↓

9 Items

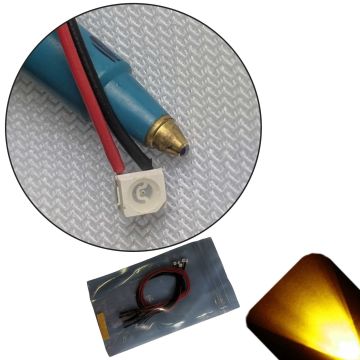

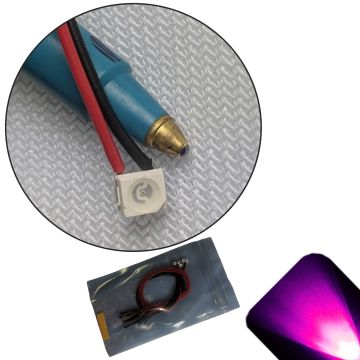

PLCC2 / 3528 pre-wired SMD LEDs occupy a unique position in the pre-wired lineup: the 3528 package (3.5mm x 2.8mm) is one of the most recognizable surface-mount LED formats in the electronics world, used in everything from commercial LED strip lighting to automotive instrument clusters. In pre-wired form with magnet wire leads, the PLCC2 / 3528 brings that same proven package to model builders, automotive restorers, and hobbyists who need a reliable, bright, and flat-profile light source that can be glued, press-fit, or wedged into tight spaces. Each LED ships with enameled magnet wire already soldered to the pads, and every order includes a pack of 5 LEDs with matched wire lengths. The built-in current-limiting resistor supports any DC power source from 9V to 18V, so you connect directly to a 9V battery, 12V adapter, or DCC track power (with rectification) without any additional components.

The most distinctive application for PLCC2 / 3528 pre-wired LEDs is automotive gauge cluster backlighting replacement. Many vehicles from the 1990s through 2010s used 3528-size SMD LEDs or small incandescent twist-lock bulbs behind the instrument cluster to illuminate the speedometer, tachometer, fuel gauge, and warning indicators. When those original lights fail or the owner wants to change the backlight color from factory green to blue, white, or red, a PLCC2 pre-wired LED can be soldered or positioned behind the gauge face as a direct replacement. The pre-wired format simplifies the job because you do not need surface-mount soldering skills or a reflow station: you sand the magnet wire ends, tin them, and solder to the cluster PCB pads or connect to the existing wiring harness. The 9-18V tolerance accommodates the 12-14.4V range typical of automotive electrical systems, including the voltage spikes that occur during engine cranking and alternator charging.

Beyond automotive gauge work, the PLCC2 / 3528 is popular in model railroad and architectural miniature projects where its size falls between the compact 0805 and the larger through-hole alternatives. In HO scale (1:87), a 3528 LED scales to roughly 300mm x 240mm, which corresponds to a ceiling panel light, an illuminated sign, or a large window backlight. In O scale (1:48), it becomes nearly invisible. The broad light-emitting surface of the 3528 package produces a wide viewing angle, typically 120 degrees, which means the LED fills a model room with light more evenly than a narrow-beam through-hole LED would. This makes it an excellent choice for overhead ceiling lights in model buildings, where you want uniform illumination across the entire floor space rather than a focused spotlight in one corner. Dollhouse and miniature room box builders appreciate the same characteristic: a single PLCC2 LED glued to the ceiling can illuminate an entire room with a natural-looking spread that mimics a real overhead fixture.

The magnet wire used on these pre-wired LEDs is ultra-thin enameled copper, the same type used in motor windings and transformer coils. The enamel coating serves as insulation, preventing short circuits when wires cross or run alongside metal structural elements in your model. To make a solder connection, you must first remove the enamel from the wire tips. The most common methods are sanding with 400-grit or finer sandpaper, scraping with the flat edge of a hobby knife, or using the solder-blob technique where you dip the wire tip into a pool of molten solder and let the heat burn through the enamel. The third method is fastest but requires a temperature-controlled soldering iron set to at least 350 degrees Celsius. Once the enamel is removed, the bare copper tins easily and forms strong solder joints to bus wires, PCB pads, or terminal strips. The wire is thin enough to be virtually invisible when routed along baseboard edges, behind wall panels, or through pre-drilled holes in model structures.

For automotive gauge cluster projects, the installation process typically involves removing the instrument cluster from the vehicle, disassembling the housing to access the back of the printed circuit board, and identifying the original LED or bulb locations. Each PLCC2 pre-wired LED can be positioned to replace a failed unit by either soldering the magnet wire leads to the existing pads or by gluing the LED into a bulb socket recess and connecting the wires to the socket contacts. Color selection matters in this context: green matches the factory backlight color of many Japanese and European vehicles; blue is a popular aftermarket upgrade for a modern appearance; white provides the highest contrast for gauge markings and is the preferred choice for custom gauge faces with dark backgrounds; red matches the factory color of many American trucks and performance vehicles. The LED's rated voltage range means it will operate safely across the full range of automotive system voltage without dimming or overcurrent damage.

If you are using PLCC2 / 3528 pre-wired LEDs for model railroad layout buildings and structures, the wiring approach is straightforward. Run a 12V DC power bus under your layout using heavier gauge wire (22-24 AWG is standard for layout bus wiring). At each building location, drill a small hole through the layout surface, thread the magnet wire leads down through the hole, and connect to the bus. Because each LED has its own built-in resistor, you wire all LEDs in parallel to the same bus without per-LED resistance calculations. This makes it easy to add lights incrementally as you build and detail new structures. For DCC-powered layouts, tap the track bus through a bridge rectifier to convert the bipolar DCC waveform to smooth DC before feeding it to your lighting bus. The voltage guide covers wiring diagrams for both DC and DCC power sources.

The PLCC2 / 3528 package is also the foundation of most commercial LED strip lighting, which means replacement 3528 LEDs are in demand for strip repair work. If a section of 12V LED strip has individual dead LEDs, a pre-wired 3528 can be soldered in as a replacement. The pre-wired magnet wire provides enough length to reach from the strip to a convenient solder point, and the 3528 footprint matches the pad layout used on standard-density (60 LED/m) strips. This repair application extends the useful life of LED strips that would otherwise be discarded due to a few failed emitters. Browse the full pre-wired SMD LED collection for alternative package sizes, or explore the pre-wired LED parent category for through-hole options with standard hookup wire.

Frequently Asked Questions

Yes. The 3528 / PLCC2 package is the same format used in many factory instrument clusters. You can position a pre-wired 3528 LED behind the gauge face and solder the magnet wire leads to the existing PCB pads or socket contacts. The 9–18V operating range covers the full automotive electrical system range (12–14.4V nominal). Choose white for maximum gauge readability, or green, blue, or red to match factory colors or customize the backlight appearance.
They refer to the same physical package. “3528” is the metric dimension (3.5mm x 2.8mm), while “PLCC2” is the industry package designation (Plastic Leaded Chip Carrier, 2-terminal). You will see both names used interchangeably in datasheets, LED strip specifications, and automotive parts listings. The LEDs in this category are the same component regardless of which name is used.
No. Each pre-wired LED includes a built-in current-limiting resistor in the wire lead. Connect the LED directly to any DC power source between 9V and 18V and it will operate at its rated brightness without risk of overcurrent damage. No external resistor needed, no resistance calculations required.
Three reliable methods: (1) Sand 5–10mm of the wire tip with 400-grit or finer sandpaper until bright copper is visible. (2) Scrape the enamel off with the flat side of a hobby knife blade. (3) Dip the wire tip into a blob of molten solder on your iron — the heat burns through the enamel and tins the wire in one step (requires iron temperature of 350°C or higher). Once stripped, the wire accepts solder like any standard copper conductor.
The 3528 / PLCC2 package typically produces a 120-degree viewing angle. This wide angle spreads light broadly, making it well suited for room illumination in model buildings, even backlighting behind gauge faces, and any application where you want the light to fill a space rather than project as a narrow beam. The exact angle varies slightly by color and is listed on each product page.
Yes. Wire all LEDs in parallel — all positive leads to the positive rail, all negative leads to the negative rail. Because each LED has its own built-in resistor, no additional per-LED resistance is needed. Each LED draws approximately 20mA, so a 12V 1A power supply can support up to 50 LEDs in parallel. For large layouts, use solder terminal strips or a power distribution board to keep connections organized.
