5mm Flat Top LED

5mm flat-top LEDs replace the standard dome lens with a flat, level surface that spreads light over a wide 100–160° viewing angle.

Read full description & FAQ ↓

10 Items

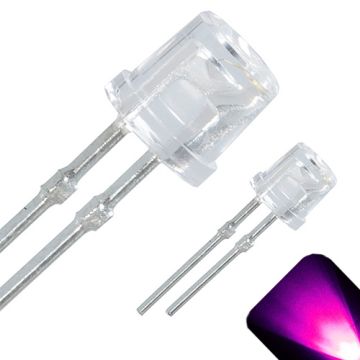

5mm flat-top LEDs replace the standard dome lens with a flat, level surface that spreads light over a wide 100–160° viewing angle. This makes them the preferred LED for three major applications: automotive instrument cluster backlighting, guitar pedal indicator lights, and arcade button illumination. Anywhere you need even coverage behind a panel, flush mounting in a bezel, or visibility from steep off-axis angles, flat-top LEDs outperform dome-top round-tops. We stock 5mm flat-top LEDs in multiple colors including red, orange, amber, yellow, green, blue, cool white, warm white, UV, and pink.

Automotive gauge cluster backlighting: When replacing incandescent T10 or T5 wedge bulbs behind an instrument cluster, flat-top LEDs eliminate the hot-spot problem that plagues dome-top round-top LEDs. A round-top creates a bright center and dark edges behind the gauge face because the dome lens focuses light forward. A flat-top disperses light sideways across the full dial face, producing even illumination from the speedometer needle to the outer tick marks. This is the #1 reason automotive enthusiasts on GM Truck Club, Honda-Tech, JeepForum, Mustang6G, and CivicX forums specify flat-top LEDs for instrument cluster conversions on Silverado/Sierra, Civic, Wrangler TJ/JK, and Mustang SN95/S197/S550 platforms. Cool white produces a modern look; blue gives a sporty tint; green matches factory gauge lighting on many Hondas. The same principle applies to HVAC climate control backlighting, radio display panels, and center console switch lighting.

Guitar pedal indicator lights: DIY pedal builders on DIYPB, freestompboxes.org, r/diypedals, and TGP (The Gear Page) choose flat-top LEDs because the flat lens sits flush in a panel-mount bezel on the enclosure top, giving a clean, professional look. More importantly, the wide viewing angle makes the on/off bypass indicator visible from a standing position looking straight down at a pedalboard on stage. A narrow round-top LED appears dim or invisible from that steep angle. Diffused flat-tops are especially popular — they glow evenly without a blinding hotspot under bright stage lighting. Red and blue are the standard bypass indicator colors; green signals buffered or active mode. Most builders use a 3PDT foot switch wired to toggle the LED circuit with the effect loop.

Arcade buttons and display panels: Translucent Sanwa OBSC, Seimitsu PS-14-DN, and Happ/IL Competition pushbuttons require full-face illumination from inside the button housing. A flat-top LED lights up the entire translucent button cap evenly; a round-top creates a single bright dot in the center surrounded by dimmer areas. The BYOAC (Build Your Own Arcade Controls) community and Paradise Arcade Shop specifically recommend flat-top LEDs for pushbutton illumination in MAME cabinets, fight sticks, and custom control panels. RGB flat-top LEDs allow per-button color changes controlled by a LED controller board or microcontroller.

Colors, wavelengths, and lens characteristics: The flat surface eliminates the dome that normally focuses light forward, instead dispersing it nearly hemispherically (100–160°). Each product page lists the peak wavelength in nanometers and brightness in millicandela (mcd). Because the light spreads so widely, the mcd rating will be lower than a round-top LED of the same color at the same current — but the perceived illumination behind a panel or gauge face is dramatically more even. White LEDs come in warm white (~3000–4000K) and cool white (~5500–6500K). UV flat-tops (395–405nm) work for wide-area fluorescent paint activation in escape rooms and haunted house panels.

Electrical specs and resistor selection: Forward voltage: red/orange/yellow/amber ≈ 2.0–2.2V; blue/green/white/UV ≈ 3.0–3.2V. Maximum forward current: 20mA. Every bare LED needs a series current-limiting resistor. Common values: 12V → 510Ω for red, 470Ω for white/blue; 5V → 150Ω for red, 100Ω for white; 9V → 330Ω for red, 300Ω for white. Use our LED resistor calculator for any supply voltage. For automotive gauge cluster conversions where LEDs tap into 12–14V vehicle power, the resistor handles the voltage difference automatically. For AC-powered applications, add a bridge rectifier to convert to DC. See the AC/DCC wiring guide. New to LEDs? Pre-wired LEDs are the easiest starting point — the resistor is already built in.

Mounting, physical dimensions, and related products: The 5mm flat-top body fits a standard 5.2mm (13/64″) panel-mount hole and standard 5mm LED holders and bezels. Lead spacing is 2.54mm (0.1″) for breadboard and perfboard compatibility. The flat top sits flush against a panel or bezel face instead of protruding as a dome — a cosmetic advantage for guitar pedal enclosures and clean panel-mount installations. For even wider lateral emission approaching omnidirectional output, see our 5mm flat-top concave LEDs — optimized for Christmas string lights and decorative applications where the LED is visible from all sides. For similar wide-angle coverage with a different lens profile, browse 5mm straw hat LEDs (120–140°). For focused forward beams, 5mm round-top LEDs concentrate light in 15–30°. For frosted-lens wide-angle, see diffused 5mm LEDs. For plug-and-play wiring, pre-wired LEDs come ready for 5V, 6V, 9V, or 12V operation.

Frequently Asked Questions

Typically 100–160°, compared to 15–30° for a clear round-top 5mm LED. The flat lens eliminates the dome that normally focuses light forward, instead dispersing it nearly hemispherically. This makes flat-tops visible from the side and at steep off-axis angles where a dome-top round-top would appear dim or invisible.
Two reasons. First, the flat lens sits flush in a panel-mount bezel, giving a clean, professional look on the pedal enclosure top. Second, when standing over a pedalboard on stage, you are looking down at a steep angle — a round-top LED appears very dim from that vantage point because its beam shoots forward, not upward. A flat-top is fully visible from above because the wide 100–160° beam covers steep angles. Diffused flat-tops are especially popular to avoid a blinding hotspot under bright stage lights.
Yes — flat-tops are the most widely recommended LED type for instrument cluster backlighting on car enthusiast forums. The wide viewing angle distributes light evenly behind the gauge face, eliminating the bright-center-dark-edges hot-spot problem that round-top LEDs cause. For even more uniform coverage, flat-top concave LEDs refract light outward even further, approaching omnidirectional emission behind the gauge face.
Yes. The base diameter is 5mm, identical to a round-top LED. Flat-tops fit in standard 5mm LED holders, 5.2mm panel holes, and breadboards. The only difference is the lens shape — the flat surface sits flush against a panel or bezel face instead of protruding as a dome. This flush profile is actually an advantage for guitar pedal enclosures and arcade button housings.
A flat-top LED has a smooth, level lens surface that spreads light 100–160° — wide, but still with slight forward bias. A flat-top concave LED has a center depression that acts as a diverging lens, refracting light outward past 160° and approaching true omnidirectional emission. Concave LEDs are optimized for decorative and Christmas light string applications where the LED is visible from all sides. Standard flat-tops are better for panel backlighting, gauge clusters, and indicator bezels.
The same resistor values as any standard 20mA 5mm LED — the flat lens changes only the light pattern, not the electrical specs. At 12V: red ≈ 510Ω, white/blue ≈ 470Ω. At 5V: red ≈ 150Ω, white/blue ≈ 100Ω. Use our LED resistor calculator for any supply voltage. For automotive 12–14V vehicle power, the resistor handles the full voltage difference automatically.
