High Power LEDs

High power LEDs deliver dramatically more light output than standard 20mA indicator LEDs, making them the right choice when you need real…

Read full description & FAQ ↓

36 Items

High power LEDs deliver dramatically more light output than standard 20mA indicator LEDs, making them the right choice when you need real illumination — not just a visible dot. We stock high power LEDs across four subcategories: star LEDs in 1 watt and 3 watt configurations on aluminum PCB star boards, DIP high power LEDs rated at 0.5W in 5mm, 8mm straw hat, and 10mm packages, surface/custom mount LEDs including 10 watt LEDs for floodlight and grow light builds, and high power SMD LEDs in the 5630/5730 footprint at 0.5W per chip. Whether you are building a custom flashlight, assembling architectural accent panels, designing a reef aquarium light, constructing a UV curing station, or upgrading automotive lighting, this category covers every high power LED form factor we carry.

What makes an LED "high power"? Standard through-hole LEDs operate at 20mA and produce 15,000–25,000 millicandela (mcd) — bright enough for indicator lights, model railroad headlamps, and panel status displays, but nowhere near enough for area illumination. High power LEDs operate at 150mA to 1A or more, producing tens to hundreds of lumens per emitter. A single 1W star LED outputs more usable light than a dozen standard 5mm LEDs combined. A 10W LED module can replace a 75W halogen flood lamp at a fraction of the energy cost. The tradeoff is heat: high power LEDs generate significant thermal energy that must be dissipated through a heatsink, aluminum PCB, or thermal management system. Without adequate cooling, the LED junction temperature rises, reducing both light output and lifespan. Every product page in this category lists the forward voltage, drive current, and recommended thermal management approach for that specific emitter.

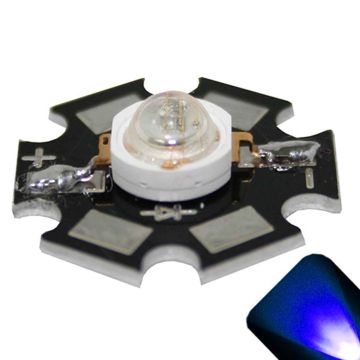

Star LEDs (1W and 3W): Star LEDs are the most popular high power format for custom builds. Each emitter is pre-mounted on a 20mm aluminum star PCB that serves as both an electrical connection pad and a primary heat spreader. The star board bolts directly to a heatsink with thermal paste or a thermal pad between them. 1 watt star LEDs run at 300–350mA and produce 80–130 lumens depending on color and efficiency class — ideal for flashlight builds, under-cabinet accent lights, and architectural recessed lighting. 3 watt star LEDs run at 600–700mA and produce 150–260+ lumens — used in stage lighting, reef aquarium arrays (royal blue + cool white for coral growth spectra), DJ effects, and high-output custom flashlights where maximum beam intensity matters. Both 1W and 3W stars are available in colors across the visible spectrum plus UV and infrared, and both share the same 20mm star PCB footprint for easy swapping and array building.

DIP high power LEDs (0.5W): DIP high power LEDs bridge the gap between standard 20mA through-hole LEDs and watt-class emitters. Rated at 0.5W (typically 100–150mA), they deliver 3–5 times the light output of a standard LED while retaining the familiar two-lead through-hole package that plugs into breadboards, perfboard, and standard PCB holes. The 5mm 0.5W package produces an intensely bright focused beam — popular for automotive gauge cluster upgrades, high-visibility indicator panels, and anywhere a standard 5mm LED is not bright enough. The 8mm straw hat 0.5W spreads that output across a wider 100–120° viewing angle for display backlighting and signage. The 10mm 0.5W delivers the most visible emitting area of any DIP high power package, suitable for large panel indicators, G-scale model railroad headlights, and decorative accent lighting.

Surface mount and 10W LEDs: Surface/custom mount high power LEDs are bare emitter modules designed for integration into custom PCBs, reflector housings, and optical assemblies. The 10 watt LEDs are the highest output emitters we carry — each module packs multiple die bonded to a single substrate and is rated for 900mA–1A drive current. Applications include custom floodlights for landscape and security lighting, horticultural grow lights for indoor plant cultivation, UV curing stations for resin printing and adhesive bonding, and industrial optical inspection systems. A 10W LED requires a substantial aluminum heatsink (often with active fan cooling) and a constant-current LED driver — a simple resistor is not adequate at these power levels. Our high power SMD LEDs in the 5630/5730 footprint operate at 0.5W per chip (150mA) and are widely used in LED strip manufacturing, commercial panel light assemblies, and architectural cove lighting where dozens or hundreds of chips are arrayed on a linear PCB.

Driving high power LEDs — constant current vs. resistors: Standard 20mA LEDs are safely driven through a simple current-limiting resistor. High power LEDs above 0.5W strongly benefit from a dedicated constant-current LED driver instead. A constant-current driver regulates the current regardless of voltage fluctuations and temperature-induced changes in forward voltage, protecting the LED from overcurrent damage and ensuring consistent brightness. For the 0.5W DIP and 5630/5730 SMD LEDs, a properly rated resistor can work if the supply voltage is stable and well above Vf, but a driver is still preferred for longest life. For 1W, 3W, and especially 10W LEDs, a constant-current driver is effectively mandatory — the power dissipation in a resistor at these current levels wastes significant energy as heat and provides poor current regulation. Use our LED resistor calculator to size a resistor for 0.5W LEDs; for watt-class emitters, match the driver to the LED’s rated forward current and forward voltage.

Choosing the right high power LED: For custom flashlight and spotlight builds, start with 1W star LEDs — they offer the best balance of output, thermal manageability, and cost. For maximum single-emitter output in stage lighting, reef tanks, and UV curing, step up to 3W star LEDs. For flood/grow light builds where you need the absolute highest lumen output, 10W LEDs deliver the most light per module. For a brighter drop-in replacement that uses the same through-hole footprint as standard LEDs, the 0.5W DIP high power LEDs are the easiest upgrade path — no heatsink required, same two-lead wiring. If you are new to LEDs entirely and want zero circuit design, pre-wired LEDs are the simplest starting point — the resistor is already built in. For standard 20mA indicator and model lighting projects, browse our full component LEDs catalog.

Frequently Asked Questions

Standard through-hole LEDs (3mm, 5mm, 10mm) operate at 20mA and are designed as indicator lights — visible dots, not area illumination. High power LEDs operate at 100mA to over 1A and produce tens to hundreds of lumens per emitter, enough to replace incandescent bulbs, illuminate rooms, or drive grow light panels. The tradeoff is heat management: high power LEDs require heatsinking, and watt-class emitters (1W, 3W, 10W) strongly benefit from a constant-current LED driver rather than a simple resistor.
It depends on the wattage. The 0.5W DIP high power LEDs (5mm, 8mm, 10mm packages) dissipate modest heat and typically do not require a dedicated heatsink for normal duty cycles. The 1W and 3W star LEDs must be mounted to an aluminum heatsink with thermal paste or a thermal pad — without it, junction temperature rises rapidly and the LED dims or fails. 10W LEDs require a substantial heatsink, often with active fan cooling, to stay within safe operating temperature.
For the 0.5W DIP LEDs and 5630/5730 SMD LEDs, a properly sized resistor works if the supply voltage is stable. Use our LED resistor calculator to find the right value. For 1W, 3W, and 10W LEDs, a constant-current LED driver is strongly recommended. At these current levels (300mA–1A+), a resistor wastes significant power as heat and provides poor current regulation as the LED’s forward voltage shifts with temperature. A constant-current driver maintains consistent brightness and protects the LED from thermal runaway.
Star LEDs are high power emitters pre-soldered to a 20mm aluminum-core PCB shaped like a star. The aluminum substrate conducts heat away from the LED die far more efficiently than standard FR4 fiberglass. The star board provides solder pads for electrical connections and mounting holes for bolting to a heatsink. This format is the industry standard for custom flashlight, stage light, and architectural lighting builds — the 20mm diameter is compatible with most aftermarket heatsinks, reflectors, and optic lens holders.
We stock high power LEDs in red, orange, amber, yellow, green, blue, cool white, warm white, natural white, UV (ultraviolet), and RGB across the various subcategories. Color availability varies by wattage and package type — the star LEDs and 0.5W DIP LEDs have the widest color selection. Each product page lists the exact peak wavelength in nanometers and the color temperature for white LEDs (warm ~3000–4000K, natural ~4000–4500K, cool ~5500–6500K).
All LEDs require DC power. If your source is AC — a 12V landscape transformer, model railroad transformer, or DCC track power — you need a bridge rectifier and a smoothing capacitor to convert to clean DC before feeding the LED circuit. See our AC/DCC wiring guide for a complete wiring diagram. For the 0.5W DIP LEDs on DC, a resistor is sufficient; for 1W+ emitters, use a constant-current driver rated for the LED’s forward current.
