SPST LED Lit Switches - 12v

SPST LED-lit switches are panel-mount toggle and rocker switches with a built-in LED indicator that lights up when the switch is in the ON position…

Read full description & FAQ ↓

9 Items

SPST LED-lit switches are panel-mount toggle and rocker switches with a built-in LED indicator that lights up when the switch is in the ON position and current is flowing through the circuit. The indicator LED and its current-limiting resistor are pre-wired inside the switch body — no external indicator circuit, no additional components, no extra wiring. Connect the switch into your 12V DC circuit, flip it on, and the indicator glows to confirm the circuit is live. This at-a-glance status confirmation is why LED-lit switches are the default choice for automotive custom consoles, gaming rig control panels, model railroad dispatcher boards, escape room prop panels, marine instrument dashboards, and any multi-switch installation where the operator needs to know which circuits are active without individually testing each one.

The SPST topology — single-pole, single-throw — is the simplest switching configuration: one input terminal, one output terminal, two states (on and off). When the switch is closed (ON), current flows from the input terminal through the switch contacts to the output terminal, powering both the load and the internal indicator LED simultaneously. When the switch is open (OFF), the circuit is broken and both the load and the indicator are de-energized. This makes SPST the natural choice for controlling a single circuit — an LED strip run, a bank of accent lights, an auxiliary fan, or any load that needs a dedicated on/off switch. For applications that require selecting between two circuits rather than simply turning one on and off, SPDT switches (available in our mini switches subcategory) provide a third terminal for the alternative output.

We carry LED-lit switches in multiple indicator colors — red, blue, green, and yellow — so you can color-code your control panel by circuit function. Red for power or critical systems, green for operational/ready status, blue for accent or accessory circuits, yellow for caution or auxiliary functions. Color-coded indicator panels are standard practice in professional control room design and translate directly to hobbyist and DIY panels: a row of colored LED toggles on a model railroad dispatcher panel, an automotive console where each accessory (lights, fan, stereo, amplifier) has its own color-coded switch, or an escape room control box where the game master can see the state of every prop circuit at a glance. The indicator color is fixed by the internal LED — it does not change with load color and is not user-adjustable.

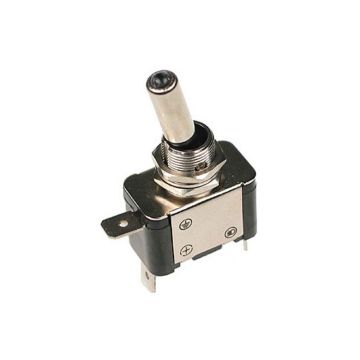

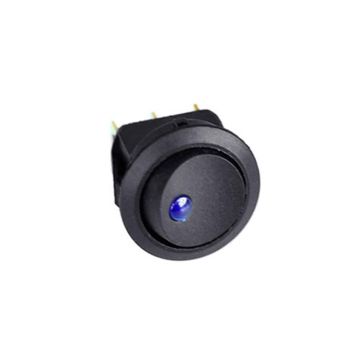

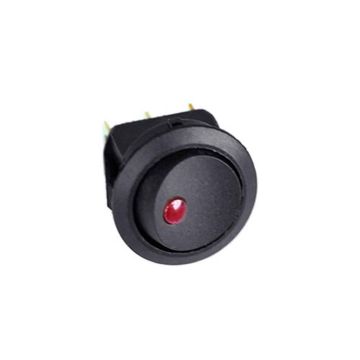

LED-lit switches are available in two body styles: toggle and rocker. Toggle switches have a bat-handle actuator that moves in an arc between the ON and OFF positions — the classic switch format that provides strong tactile feedback and a definitive, unambiguous position indication (handle up = on, handle down = off). Toggle switches mount through a round 12mm panel cutout and secure with a lock washer and threaded nut. Rocker switches have a wide, flat actuator that pivots on a center fulcrum — one end is pressed for ON, the other for OFF. Rockers mount in a rectangular cutout (typically 20mm x 13mm) and sit flush with the panel surface for a clean, modern appearance. The choice between toggle and rocker is primarily aesthetic and ergonomic: toggles offer more definitive feel and are easier to operate with gloves; rockers provide a sleeker panel appearance and are less likely to snag on passing objects.

Wiring an LED-lit switch requires three connections: the positive 12V supply wire connects to the input (power) terminal, the load wire connects to the output (accessory) terminal, and a ground wire connects to the ground terminal. The ground connection is necessary for the internal indicator LED circuit — without it, the switch will still control the load but the indicator will not illuminate. Polarity matters: reversing the power and ground connections will not damage the switch, but the indicator LED will not light because it is reverse-biased. Terminal identification is stamped or printed on the switch body — look for markings such as "+" or "PWR" (power input), "ACC" or "LOAD" (accessory output), and "-" or "GND" (ground). Use appropriately gauged wire for the load current and protect the circuit with an inline fuse upstream of the switch.

These switches are rated for 12V DC circuits and designed for panel-mount installation in automotive consoles, project enclosures, equipment panels, and control boxes. The current rating of the switch contacts (typically 20A for full-size models) far exceeds the demands of LED lighting circuits, which typically draw 0.5-3A per strip run. However, if the switch is controlling a high-current load (a large bank of LED modules, a cooling fan, or a motor), verify that the load current does not exceed the switch contact rating. For loads that exceed the switch rating, use the switch to control a relay — the switch triggers the relay coil (low current), and the relay contacts handle the high-current load circuit.

For protective accessories that add safety and environmental protection to your switch installation, browse Switch Covers / Guards / Boots. Hinged missile-style guards prevent accidental toggling, and rubber boots seal the actuator against moisture and dust ingress. For non-LED switches where no indicator is needed, see SPST Non-LED Switches. For compact toggle switches in tight panel spaces, see SPST/SPDT Mini Switches. Browse this category for the indicator color and body style that matches your project.

Frequently Asked Questions

The switch body contains a small LED and a current-limiting resistor wired internally between the power input and ground terminals. When the switch is closed (ON), current flows through the indicator circuit and the LED lights up. When the switch is open (OFF), the indicator is dark. No external resistor or indicator wiring is needed — the entire indicator circuit is self-contained inside the switch. You just need to connect the three terminals (power, load, ground) and the indicator takes care of itself.
We carry LED-lit switches with red, blue, green, and yellow indicators. The indicator color is fixed by the LED installed inside the switch body and cannot be changed by the user. Choose colors that match your panel design or circuit function — for example, red for main power, green for ready/operational, blue for accessories, yellow for caution circuits. Multiple colors on the same panel provide instant visual identification of circuit status without labels.
Three connections are required. Connect the positive 12V supply wire to the power/input terminal (marked "+" or "PWR"). Connect your load (LED strip, light, accessory) to the output/accessory terminal (marked "ACC" or "LOAD"). Connect a wire from the ground terminal (marked "-" or "GND") to the negative/ground bus of your circuit. The ground connection is required for the indicator LED — without it, the switch will still control the load but the indicator will not light. Polarity matters: reversed connections will not damage the switch, but the indicator will not illuminate.
Toggle-style LED-lit switches require a 12mm (approximately 1/2 inch) round hole drilled in the panel. Rocker-style LED-lit switches require a rectangular cutout approximately 20mm x 13mm. Both styles secure to the panel with a lock washer and threaded nut from the back side. Check the specific product page for exact cutout dimensions, as sizes may vary slightly between models. Use a step drill bit or chassis punch for clean, burr-free panel holes in metal enclosures.
Yes — these switches are rated for 12V DC and are widely used in automotive custom consoles, off-road accessory panels, boat dashboards, and other vehicle applications. The LED indicator is especially useful in vehicle environments where switches may be mounted below the dashboard or in locations where the operator cannot easily see the switch position. For marine and outdoor vehicle applications, add a rubber boot or switch guard to protect against moisture ingress and accidental activation. Always protect the switched circuit with an appropriately rated inline fuse.
The two most common causes are a missing ground connection and reversed polarity. The indicator LED requires a dedicated ground wire connected to the ground terminal — if this terminal is not connected, the switch will still control the load but the LED has no return path and will not light. The second cause is reversed polarity: if the power and ground connections are swapped, the internal LED is reverse-biased and will not emit light. Check the terminal markings on the switch body and verify that positive voltage goes to the power terminal and ground goes to the ground terminal.
