Wire - Single and Mulit-Conductor

Wire for LED projects connects your power supply, switches, and LED circuits into a finished system.

Read full description & FAQ ↓

18 Items

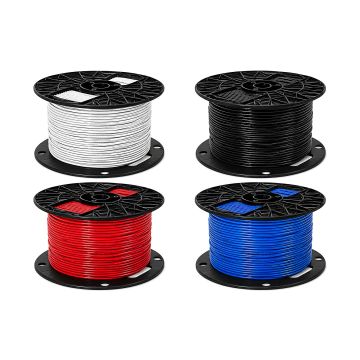

Wire for LED projects connects your power supply, switches, and LED circuits into a finished system. We carry a range of wire gauges and types organized by application: 18 AWG single-conductor stranded wire for high-current power runs and automotive feeds, 16 AWG 2-conductor stranded wire for LED strip main power feeds and speaker-wire-style runs, 30 AWG solid-core Kynar and 26 AWG solid-core Kynar for wire-wrap prototyping, SMD rework, and model railroad decoder wiring, and 24 AWG solid core for general-purpose hookup and breadboard jumpers. Selecting the right gauge for your application is essential — too thin, and the wire overheats or drops too much voltage over distance; too thick, and the wire is unnecessarily stiff and difficult to route in tight spaces.

Wire gauge basics: American Wire Gauge (AWG) numbers work inversely — the lower the number, the thicker the wire and the more current it can carry. 16 AWG is thicker than 18 AWG, which is thicker than 24 AWG, which is thicker than 30 AWG. For LED projects, current-carrying capacity is the primary concern because LEDs themselves draw relatively low current (20mA for a single standard LED, up to 2A or more for a full reel of LED strip). Voltage drop over distance is the secondary concern: a thin wire running 15 feet from a power supply to an LED strip will lose a measurable fraction of the supply voltage to the wire’s own resistance, which causes dimming at the far end of the circuit. Choosing a wire gauge appropriate for both the current draw and the wire run length eliminates these problems.

Stranded vs. solid core: We carry both types because they serve fundamentally different purposes. Stranded wire consists of multiple thin strands twisted together inside the insulation jacket. It is flexible, tolerant of vibration and repeated flexing, and ideal for runs that need to bend around obstacles, pass through flexible conduit, or connect to components that may move slightly in service (vehicle interiors, hinged cabinet doors, portable builds). Stranded wire is the standard choice for LED strip power leads, automotive wiring, and any run longer than a few feet. Solid-core wire consists of a single solid conductor inside the insulation. It holds its shape when bent, pushes cleanly into breadboard holes and wire-wrap posts, and is easier to route in tight PCB-level spaces. Solid-core wire is the standard choice for breadboard prototyping, wire-wrap construction, DCC decoder wiring in model railroad locomotives, and SMD rework where you need a stiff wire that stays where you place it. Solid core is not suitable for applications involving repeated bending — it will work-harden and snap after relatively few bend cycles.

Kynar insulation is a special-purpose insulation material used on our 30 AWG and 26 AWG solid-core wire. Kynar (polyvinylidene fluoride / PVDF) is thinner, tougher, and more heat-resistant than standard PVC insulation. It strips cleanly without stretching or bunching, does not melt back when touched briefly by a soldering iron tip, and allows the wire to maintain a very small overall diameter despite the insulation layer. These properties make Kynar-insulated wire the gold standard for wire-wrap prototyping, where dozens or hundreds of connections need to be made to closely spaced posts on a wire-wrap board, and for SMD rework, where the wire needs to route between surface-mount pads spaced fractions of a millimeter apart. We stock Kynar wire in multiple colors so you can color-code signal paths and quickly trace connections during debugging.

Choosing the right gauge for your specific project depends on two factors: current draw and run length. For a single LED circuit drawing 20mA with a short 12-inch wire run, even 30 AWG is adequate — the current draw is trivial and the run length is too short for voltage drop to matter. For an LED strip installation drawing 2A with a 15-foot power feed from the supply to the strip, 18 AWG stranded is the right choice: it handles 2A comfortably with minimal voltage drop over the distance. For a 2-conductor power feed to an LED strip mounted in a van or RV ceiling, 16 AWG 2-conductor gives you both supply and return in a single jacket, with enough cross-section to handle the current draw and distance. As a general rule: use 24–30 AWG for signal-level and low-current connections (under 500mA, runs under 3 feet), 18–20 AWG for moderate-current power runs (500mA to 3A, runs up to 15 feet), and 16 AWG or heavier for high-current or long-distance power distribution (3A+, runs over 15 feet).

Wire also plays a critical role in managing voltage drop on LED strip installations. The thin copper traces on a flexible LED strip have significantly higher resistance per meter than even the thinnest hookup wire in our catalog. When you run a 12V supply to an LED strip, most of the voltage drop happens on the strip itself — but the drop in the supply wire adds to it. If you run 10 feet of 24 AWG wire from a supply to a 5-meter LED strip, the wire alone might drop 0.3–0.5V before the current even reaches the strip, which compounds the voltage drop within the strip and makes the far-end dimming worse. Upgrading the supply wire to 18 AWG cuts that drop by roughly 75%, delivering more of the supply’s 12V to the strip’s input terminals. For any LED strip power run longer than 5 feet, use 18 AWG or heavier wire for the supply leads. See our LED strips category for detailed installation guidance on power injection and voltage drop management.

All of our wire is sold by the foot, letting you order exactly the length you need for each project without buying a full spool. Colors are available in each gauge to support color-coded wiring: red for positive, black for negative or ground, and additional colors for signal routing, multi-channel LED connections, and organized harness builds. Clean, color-coded wiring makes troubleshooting dramatically easier on multi-LED builds where a tangle of same-colored wires would make it nearly impossible to trace a fault. For permanent installations, protect wire junctions and splices with heat-shrink tubing to insulate exposed conductors and provide strain relief. For soldered connections, use rosin-core solder for a reliable bond that resists vibration and corrosion over time.

Frequently Asked Questions

For LED strip power feeds, use 18 AWG stranded wire for runs over 5 feet. The higher current draw of LED strips (up to 2–3A for a 5-meter reel) combined with longer run lengths means thinner wire will drop too much voltage, causing the far end of the strip to appear dim. For very short runs (under 3 feet), 20–22 AWG is acceptable. For 2-conductor applications where you want supply and return in a single jacket, 16 AWG 2-conductor wire is the best choice.
Stranded wire consists of multiple thin strands twisted together, making it flexible and vibration-tolerant. Use stranded for power runs, automotive wiring, and any connection that may flex in service. Solid-core wire is a single rigid conductor that holds its shape when bent and pushes cleanly into breadboard holes and wire-wrap posts. Use solid-core for breadboard prototyping, wire-wrap construction, PCB jumpers, and model railroad decoder wiring. Do not use solid-core wire where it will be repeatedly bent — it will fatigue and snap.
Kynar (PVDF) insulation is thinner, tougher, and more heat-resistant than standard PVC. It strips cleanly without stretching, resists melting from brief soldering iron contact, and keeps the wire’s overall diameter very small. 30 AWG Kynar and 26 AWG Kynar are the standard choices for wire-wrap prototyping, SMD rework, DCC decoder wiring in model railroad locomotives, and any application where you need a very thin, precise, heat-tolerant wire.
Thinner wire (higher AWG number) has more resistance per foot, which causes more voltage to be lost as heat rather than delivered to the load. On a 12V LED strip circuit, even a 0.5V drop in the supply wire means the strip is operating at 11.5V, which causes dimming and, on RGB strips, color shifting. Heavier gauge wire has less resistance and delivers more of the supply’s voltage to the strip. For power runs over 5 feet at currents above 1A, 18 AWG is the practical minimum to keep voltage drop under 3% of the supply voltage.
No. Vehicles experience constant vibration from the engine, road surface, and suspension, which causes solid-core wire to fatigue and eventually snap. Always use stranded wire for automotive and vehicle applications. 18 AWG stranded is a good general-purpose choice for automotive LED feeds, and 16 AWG 2-conductor is ideal for runs that need both supply and return conductors in a single jacket, such as feeds to trunk or underbody LED strips.
Measure the actual routing path from your power supply to each LED, strip segment, or connection point — not the straight-line distance, but the path the wire will actually follow along walls, through conduit, around obstacles, and up through ceilings. Add 6–12 inches extra at each end for termination (stripping, soldering, connecting to a terminal block). Our wire is sold by the foot, so you can order exactly the length you need without paying for a full spool. When in doubt, order 10–15% more than your measured total — having a few extra feet is far better than being 6 inches short.
