9v (9 Volt Max) Pre-Wired LEDs

9V pre-wired LEDs are designed specifically for 9-volt battery projects.

Read full description & FAQ ↓

19 Items

9V pre-wired LEDs are designed specifically for 9-volt battery projects. Each LED comes with a precision current-limiting resistor already soldered inline and 8 inches (20cm) of flexible stranded wire — snap a 9V battery connector onto a standard rectangular 9V battery, connect the red wire to positive and the black wire to negative, and the LED lights up immediately. No soldering iron, no resistor math, no breadboard prototyping. That instant plug-and-play simplicity makes 9V pre-wired LEDs the go-to choice for science fair projects, school demonstrations, quick prototypes, portable props, battery-powered art installations, and any build where a compact 9V battery is the most convenient power source. We stock 9V pre-wired LEDs in 3mm and 5mm round-top sizes across the full color range: red, orange, amber, yellow, green, blue, white (warm and cool), UV, and pink.

Why choose 9V over 12V or 6V: A standard 9V rectangular battery (PP3 / 6LR61) is the most recognizable and widely available battery form factor in the world. It snaps onto an inexpensive battery clip with integrated leads, creating a self-contained portable power source with no external power supply, no wall outlet, and no wiring harness. That portability makes 9V pre-wired LEDs ideal for projects that move: cosplay props carried at conventions, portable science fair displays that travel between school and competition, battery-powered Halloween decorations placed around a yard, emergency marker lights kept in a glove box, and handheld demonstration circuits used in classroom teaching. A fresh alkaline 9V battery has approximately 500–600mAh capacity, which means a single 20mA LED will run continuously for roughly 25–30 hours — more than enough for a weekend convention, a multi-day science fair, or several evenings of Halloween displays. For longer runtime, use a lithium 9V battery (1200mAh) which doubles the operating time. The built-in resistor is specifically calculated for a 9V supply, so the LED runs at its rated brightness and current without modification. For a deeper comparison of when to use 9V vs. 12V vs. 6V, read the pre-wired LED voltage guide.

Science fairs and educational projects: 9V pre-wired LEDs are the most recommended product for students and educators building their first LED circuit. Traditional LED projects require understanding forward voltage, current limiting, Ohm’s law, and resistor color codes before a single photon is emitted — a significant barrier for elementary and middle school students. A 9V pre-wired LED eliminates every one of those steps: the student connects two wires to a battery and immediately sees light. That instant success builds confidence and frees class time for the actual learning objectives — circuit concepts, series vs. parallel wiring, color mixing, light intensity measurement, or whatever the curriculum requires. Teachers ordering class sets can run 30 students simultaneously on inexpensive 9V batteries without any shared power supplies, extension cords, or safety concerns about mains voltage. Each station is fully self-contained: one battery, one LED, two alligator clip leads.

Cosplay, props, and portable lighting: Cosplayers building LED-lit props — lightsabers, magic staffs, Iron Man arc reactors, Mandalorian helmet visors, cyberpunk goggles, steampunk monocles — need a compact, lightweight power source that fits inside a costume piece. A 9V battery weighs just 46 grams and measures 48×26×17mm, small enough to hide inside a gauntlet, staff handle, helmet cavity, or belt pouch. The 8-inch pre-wired lead routes through the prop body to the LED mounting point, and a small toggle or slide switch wired in series provides on/off control. For multi-LED props, wire several 9V pre-wired LEDs in parallel from the same battery — three LEDs draw 60mA total, giving approximately 8–10 hours of runtime on a fresh alkaline battery, easily enough for a full day at a convention. Blue and white pre-wired LEDs are the most popular for sci-fi props; red for Sith-themed builds; green for magic and nature effects; UV for fluorescent paint activation on costumes.

Alarm panels, intercoms, and 9V electronics: Beyond hobby use, 9V pre-wired LEDs serve as drop-in indicator lights for 9V-powered electronic equipment. Vintage alarm panels, intercom systems, and some test instruments use a 9V supply rail — a 9V pre-wired LED provides an instant status indicator without designing a resistor network into the existing PCB. Building maintenance technicians use them as temporary fault indicators on 9V fire alarm circuits during testing. Amateur radio operators wire them as transmit/receive indicators on QRP (low power) rigs that run from 9V battery packs. The pre-wired resistor ensures the LED draws a safe, consistent 20mA regardless of minor battery voltage sag as the cell discharges (a fresh alkaline 9V measures ~9.6V; a partially discharged one may read 8.0–8.5V — the LED still lights reliably across this range).

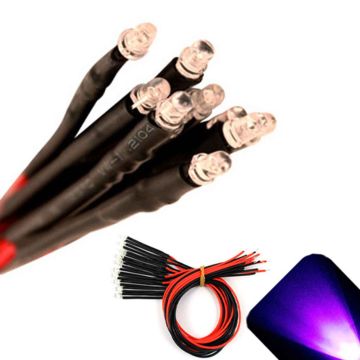

Available sizes and colors: We stock 9V pre-wired LEDs in two DIP sizes: 3mm (T-1 package) for tight spaces, miniatures, and small-scale indicators, and 5mm (T-1¾ package) for general-purpose use where a larger, brighter LED is preferred. Both sizes have a clear round-top lens with a 15–30° focused beam. All standard colors are available — red, orange, amber, yellow, green, blue, cool white, warm white, UV, and pink — with each product page listing the exact peak wavelength in nanometers and typical brightness in millicandela (mcd). The 5mm size is the most popular for general prop and indicator use; 3mm is preferred for miniatures, small enclosures, and projects where a subtler light point is needed.

Related categories: If your project uses a 12V power supply, car battery, or DCC model railroad system instead of a 9V battery, 12V pre-wired LEDs are the better match — they are available in more sizes, lens styles, and animated variants. For 4×AA battery packs (6V), see 6V pre-wired LEDs. If you need an LED small enough to hide inside a LEGO brick or Z-scale building, browse our pre-wired SMD LEDs (0402, 0603, and 0805 packages). For bare LEDs where you select your own resistor, see component LEDs and use the LED resistor calculator to find the correct resistor value for any voltage.

Frequently Asked Questions

No. Every 9V pre-wired LED includes a current-limiting resistor soldered inline on the wire, calculated for a 9V supply. Just connect the red wire to the positive terminal and the black wire to the negative terminal of a 9V battery. No external resistor, no soldering, no calculations needed.
A single 20mA pre-wired LED on a fresh alkaline 9V battery (~550mAh) will run for approximately 25–30 hours of continuous use. Two LEDs in parallel draw 40mA, giving roughly 12–15 hours. Three LEDs draw 60mA, giving 8–10 hours. For longer runtime, use a lithium 9V battery (~1200mAh), which approximately doubles operating time at a slightly higher cost per battery.
Yes. Wire them in parallel — all red wires to the battery’s positive terminal, all black wires to the negative terminal. Each LED has its own built-in resistor, so every LED in the parallel circuit receives the correct current independently. A 9V alkaline battery can comfortably supply 3–5 LEDs in parallel (60–100mA) with reasonable battery life for portable projects.
The number is the lens diameter. 3mm (T-1) LEDs are smaller and fit tighter spaces — ideal for miniature props, small enclosures, and projects where a subtle light point is needed. 5mm (T-1¾) LEDs are brighter, easier to handle, and more visible — the standard choice for general-purpose indicators, science fair displays, and larger props. Both sizes use the same wiring (red to +, black to −) and draw the same 20mA current.
It is not recommended. The built-in resistor is calculated for 9V, and running on 12V will push significantly more current through the LED, reducing its lifespan or causing premature failure. If your power source is 12V, use 12V pre-wired LEDs instead — they are available in more sizes and styles, including flat top, diffused, and animated variants.
Yes — they are our most recommended product for student projects. A 9V pre-wired LED eliminates the need to understand resistor calculations, forward voltage, or Ohm’s law before getting a working circuit. The student connects two wires to a 9V battery and immediately sees light. This frees class time for the actual learning objective — whether that is series vs. parallel circuits, color mixing, light intensity measurement, or energy efficiency comparisons. Each station needs only one battery and one LED, with no shared power supplies or mains voltage safety concerns.
