Pre-Wired SMD LEDs

Pre-wired SMD LEDs bring the miniature size of surface-mount LED packages to the pre-wired format — each LED ships with a current-limiting resistor…

Read full description & FAQ ↓

Items 1-36 of 63

Pre-wired SMD LEDs bring the miniature size of surface-mount LED packages to the pre-wired format — each LED ships with a current-limiting resistor and fine magnet wire (enameled copper) already attached, sold in packs of 5. These are the smallest pre-wired LEDs available anywhere, purpose-built for miniature applications where even a 3mm DIP LED is too large: N and Z scale model railroad interiors, 1:87 and smaller architectural models, LEGO lighting modifications, book nook details, dollhouse miniature fixtures, and any project that demands invisible light sources. We carry three SMD sizes: 0402 Pico (1.0×0.5mm — the smallest), 0603 Nano (1.6×0.8mm — the most popular for model railroad), and 0805 Micro (2.0×1.25mm — the easiest to work with). All operate on 12V DC and include a built-in resistor, so there are no resistor calculations needed.

What makes SMD pre-wired LEDs different from DIP pre-wired LEDs: Traditional DIP pre-wired LEDs (3mm, 5mm, 10mm) use through-hole LED packages with rigid wire leads soldered to stranded hookup wire. They are easy to handle, easy to mount in drilled panel holes, and visible to the naked eye. SMD pre-wired LEDs use surface-mount packages that are millimeter-scale — the 0402 package is literally the size of a grain of sand. The wire attached to these LEDs is magnet wire (enameled copper), which is extremely thin and nearly invisible once routed along a baseboard, through a building wall, or underneath a LEGO baseplate. The trade-off is that magnet wire has an enamel insulation coating that must be sanded or scraped off at the connection end before you can solder it to your power bus or connector. This is a 30-second step with fine sandpaper (400-grit or higher) but it is an extra step that DIP pre-wired LEDs do not require.

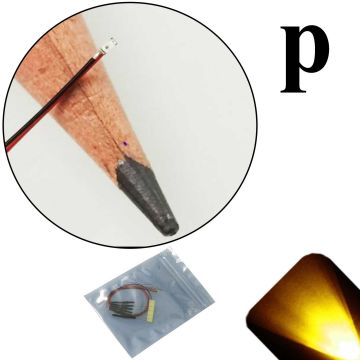

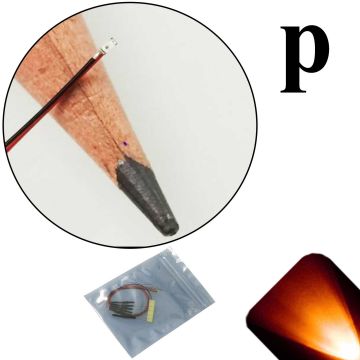

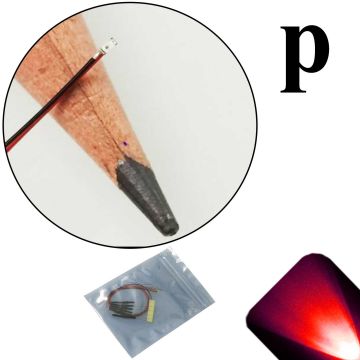

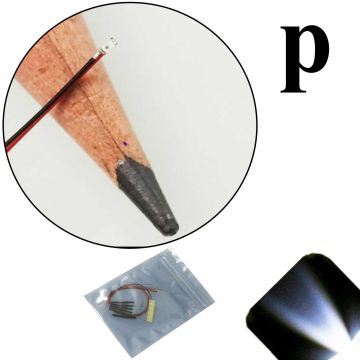

0402 Pico (1.0×0.5mm): The 0402 Pico is the smallest pre-wired LED in existence. At 1.0mm × 0.5mm, it is virtually invisible once installed — smaller than a grain of salt. This is the LED of choice for LEGO lighting mods where the LED must fit inside a 1×1 LEGO brick or stud without being seen. Book nook builders use 0402 LEDs for individual fairy lights, tiny window glows in distant background buildings, and pinpoint star effects. Z scale (1:220) and T gauge (1:450) model railroaders use 0402 LEDs for building interiors where nothing larger will fit. The wire is ultra-fine magnet wire that routes invisibly along surfaces. Sold in packs of 5.

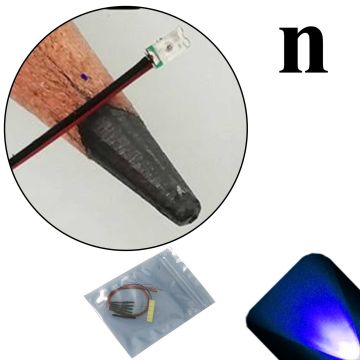

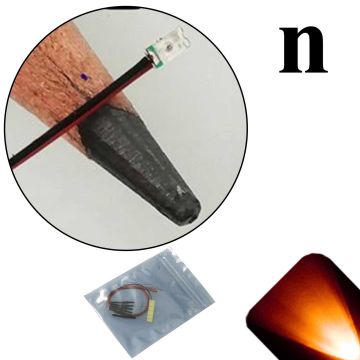

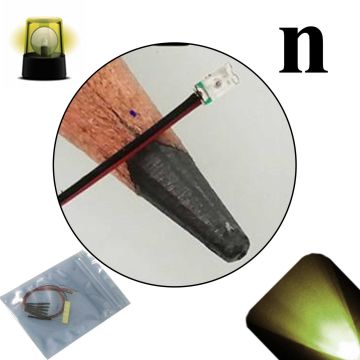

0603 Nano (1.6×0.8mm): The 0603 Nano is the most popular size for model railroad building lighting at N scale (1:160) and HO scale (1:87). At 1.6mm × 0.8mm, it is small enough to mount on a ceiling beam, behind a window frame, or inside a signal housing without being visible to the viewer. The 0603 produces slightly more light than the 0402 while remaining extremely compact. Model railroaders, dollhouse miniaturists, architectural model builders, and diorama artists rely on the 0603 as their go-to miniature light source. The magnet wire lead routes along baseboard edges, through walls, and under flooring without disrupting scale details. Sold in packs of 5.

0805 Micro (2.0×1.25mm): The 0805 Micro is the largest and easiest-to-handle SMD pre-wired LED we carry. At 2.0mm × 1.25mm, it is still dramatically smaller than a 3mm DIP LED but large enough to pick up with tweezers and position without magnification. The 0805 produces the brightest output of the three SMD sizes, making it the best choice when you want maximum light from a tiny package. HO scale modelers who find the 0402 and 0603 too fiddly often prefer the 0805 as a practical compromise between size and ease of handling. It also works well in larger dollhouse miniatures, LEGO lighting projects with slightly more room, and any application where the 3mm DIP LED is marginally too large. Sold in packs of 5.

Magnet wire: what you need to know: All pre-wired SMD LEDs use magnet wire (enameled copper) instead of the insulated stranded hookup wire found on DIP pre-wired LEDs. Magnet wire is coated with a thin enamel insulation that makes it nearly invisible and allows routing along surfaces without short-circuiting against adjacent wires or metal surfaces. However, this enamel coating must be removed at the connection point before you can solder the wire to your power bus, connector, or terminal strip. Use 400-grit sandpaper, a hobby knife, or a solder pot with flux to strip the enamel from the last 3–5mm of each wire end. Once stripped, the bare copper solders normally. This is a quick, one-time step per wire end. Many modelers pre-tin the stripped ends with solder immediately after sanding for fastest installation later.

Choosing the right SMD size: If your project demands absolute invisibility and you are comfortable working under magnification with tweezers, choose 0402 Pico. If you want the best balance of small size and practical handling, choose 0603 Nano — this is the default recommendation for most model railroad and miniature projects. If you want the easiest handling and maximum brightness from an SMD package, choose 0805 Micro. All three sizes operate on 12V DC, include a built-in resistor, and are sold in packs of 5. All three use magnet wire leads that require enamel removal before soldering.

Related categories: For standard DIP pre-wired LEDs that are larger and use insulated hookup wire (no sanding needed), see 12V pre-wired LEDs in 3mm, 5mm, and 10mm sizes. For animated pre-wired effects, browse animated pre-wired LEDs including flashing, flickering candle, and RGB. For battery-powered pre-wired LEDs, see 9V and 6V pre-wired LEDs. For bare SMD component LEDs (without pre-wired leads), browse SMD LEDs. For all pre-wired LED categories, return to the pre-wired LEDs hub page.

Frequently Asked Questions

The numbers refer to the physical package size in imperial units (hundredths of an inch). 0402 (1.0×0.5mm) is the smallest — nearly invisible, ideal for LEGO mods and Z scale. 0603 (1.6×0.8mm) is the most popular for model railroad and miniature work — small enough to hide, practical enough to handle with tweezers. 0805 (2.0×1.25mm) is the largest and easiest to work with — best for beginners and applications where brightness matters more than absolute minimum size. All three sizes operate on 12V and include a built-in resistor.
No. Each LED comes with a current-limiting resistor already attached. Connect the wires to 12V DC (observe polarity) and the LED lights up at its rated current. No external resistor calculations needed.
Magnet wire is thin copper wire coated with a transparent enamel insulation. It is used because it is extremely fine (nearly invisible when routed along surfaces) and the enamel prevents short circuits without adding bulk. The trade-off is that you must sand or scrape the enamel off the wire ends (about 3–5mm) before you can solder them to your power bus. This takes about 30 seconds per wire end with 400-grit sandpaper.
First, sand the enamel insulation off the last 3–5mm of each wire end using 400-grit (or finer) sandpaper until you see bare copper. Then tin the bare copper with solder. The pre-tinned end now solders to your power bus, connector, or terminal strip just like any other wire. Some modelers use a solder pot with flux, which strips the enamel and tins the wire in one step.
Pre-wired SMD LEDs are sold in packs of 5. This is different from DIP pre-wired LEDs (3mm, 5mm, 10mm), which are sold individually. The pack format reflects the typical use case — most miniature projects need multiple LEDs for building interiors, and the pack provides better value.
Yes. Convert DCC track power to DC using a bridge rectifier and smoothing capacitor, then connect the SMD LED wires to the DC output (observe polarity). See the AC/DCC wiring guide for a complete wiring diagram.
