Shrink Wrap Tubing

Heat-shrink tubing (also called shrink wrap tubing) is the professional standard for insulating solder joints, wire splices, and LED-to-wire…

Read full description & FAQ ↓

2 Items

Heat-shrink tubing (also called shrink wrap tubing) is the professional standard for insulating solder joints, wire splices, and LED-to-wire connections in every type of electronics project. A short piece of tubing slides over the wire before you solder, then after the joint cools, you slide the tubing over the bare connection and apply heat — from a heat gun, lighter, or even the side of a soldering iron tip — and the tubing contracts tightly around the joint, creating a permanent, snug, insulating sleeve. The result is a connection that is protected against short circuits, moisture, vibration, and abrasion for the lifetime of the build. Heat-shrink tubing is used universally in automotive wiring, aerospace, marine electronics, professional audio, and industrial controls — and it is equally essential for LED hobby work at every scale.

The shrink mechanism is straightforward: heat-shrink tubing is manufactured from polyolefin or similar thermoplastic material that has been expanded to a larger diameter during production. When you apply heat (typically 90-120 degrees Celsius / 200-250F, well below the melting point of solder or wire insulation), the tubing returns to its original, smaller diameter — typically shrinking to about half its pre-shrink size. This 2:1 shrink ratio means a piece of tubing that starts at 1/4" diameter will shrink down to about 1/8", conforming tightly to the wire and solder joint underneath. The tubing holds its shrunk shape permanently, creating a smooth, uniform insulation layer that is far more reliable than electrical tape, which can unwind over time, especially in hot or vibrating environments.

In LED work, heat-shrink tubing is used at every connection point in the circuit. When you solder a current-limiting resistor to an LED lead, both the resistor lead and the LED lead are bare metal on either side of the solder joint — heat-shrink tubing covers the entire bare area and prevents it from touching the other lead, the enclosure wall, or any adjacent wiring. When you extend the wire leads on a pre-wired LED, the splice point where you join the factory lead to your extension wire is insulated with heat-shrink tubing. When you connect hookup wire to a terminal strip, switch, or power supply, the wire end and any exposed conductor near the connection point get a piece of heat-shrink tubing. The general rule in professional wiring is: if bare metal is exposed at a connection point, cover it with heat-shrink tubing.

The application technique is simple but requires one important step that beginners often forget: slide the tubing onto the wire before you solder. Once a solder joint is made, you cannot slide tubing over it (the joint is larger than the wire diameter, and the tubing will not fit over connectors or large solder blobs). Cut a piece of tubing about 1.5x the length of the bare area you need to cover, slide it onto one of the wires before you bring the two wires together, push it a few inches away from the work area so it does not shrink from the soldering iron heat, make your solder joint, let it cool completely, slide the tubing over the joint so it extends at least 1/4" past the bare area on each side, and apply heat. A heat gun at low setting produces the most even, professional result — rotate the wire slowly to shrink the tubing uniformly around the entire circumference. A lighter works in a pinch but risks scorching the tubing if held too close. The side of a soldering iron tip works for very small pieces but tends to shrink one side more than the other.

Choosing the right diameter of heat-shrink tubing ensures a tight, gap-free fit. The tubing needs to be large enough (in its pre-shrink state) to slide freely over the solder joint or connector, but small enough that after shrinking, it fits snugly around the wire without leaving a loose, baggy sleeve. For standard LED lead wires (26-28 AWG), the smallest diameter tubing in our catalog provides a tight fit. For splices involving heavier gauge hookup wire (22-24 AWG) or inline resistors, step up to the next size. For covering connections on power supply terminals or switch lugs, you may need an even larger diameter. When in doubt, go one size larger — a slightly loose fit after shrinking is better than tubing that will not slide over the joint in the first place.

Specific LED project applications highlight why heat-shrink tubing is considered non-negotiable by experienced builders. Guitar pedal builds: every connection inside the aluminum enclosure needs heat-shrink coverage because bare wires that touch the grounded enclosure wall create ground loops, hum, and signal loss. The enclosed space and tight wire routing make accidental contact with the enclosure almost inevitable unless every joint is insulated. Automotive LED installations: vehicles vibrate constantly, wires flex as doors open and panels move, and under-dash temperatures can reach 60-70 degrees Celsius in summer — electrical tape loosens and unwinds under these conditions, while heat-shrink tubing stays permanently bonded to the wire. Model railroad layouts: the micro-vibration from running trains, the occasional bump from reaching under the table, and years of service life mean that every connection under the layout needs permanent insulation. A single bare joint that shorts against an adjacent wire can knock out an entire block of building lights or signal circuits.

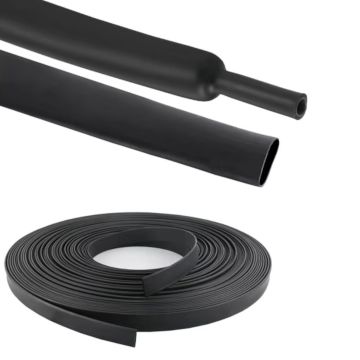

For outdoor LED installations and marine applications, adhesive-lined heat-shrink tubing provides an additional level of protection. Standard heat-shrink tubing creates a tight mechanical fit around the wire but does not form a waterproof seal — moisture can wick along the wire under the tubing through capillary action. Adhesive-lined tubing has a layer of hot-melt adhesive on the inside surface that melts during shrinking and flows around the wire, creating a watertight bond. This is essential for LED connections in outdoor landscape lighting, boat accent lighting, and any installation exposed to rain, condensation, or splashing. For indoor-only projects, standard (non-adhesive) tubing provides more than adequate insulation.

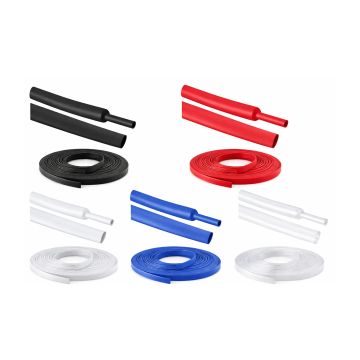

We stock heat-shrink tubing in multiple diameters to cover the full range of LED wiring tasks, from fine 26 AWG pre-wired LED leads to heavier power distribution wire. Each product listing specifies the pre-shrink diameter and the approximate post-shrink diameter so you can select the right size for your application. Order heat-shrink tubing alongside your LEDs, resistors, and solder — it ships at no additional cost with your LED order, and having it on hand before you start building means you can insulate every joint as you go rather than discovering halfway through that you need to make a separate order for supplies. Browse the products below and see our braided sleeving and electrical tape categories for the complete wire management toolkit.

Frequently Asked Questions

Slide the tubing onto the wire before you solder — this is the step most beginners forget. After the solder joint cools, slide the tubing over the bare connection so it extends at least 1/4” past the exposed area on each side. Apply heat evenly using a heat gun at low setting, rotating the wire slowly so the tubing shrinks uniformly around the entire circumference. A lighter works in a pinch (keep it moving to avoid scorching), and the side of a soldering iron tip works for very small pieces.
Match the pre-shrink diameter to the largest part of the connection it needs to cover. For standard LED lead wires (26–28 AWG) and small solder joints, the smallest available diameter provides the tightest fit. For splices with heavier hookup wire (22–24 AWG) or inline resistors, step up one size. The tubing shrinks to approximately half its original diameter (2:1 ratio), so a 1/4” pre-shrink tube becomes about 1/8” after heating. When in doubt, go one size larger — a slightly loose fit is better than tubing that will not slide over the joint.
For permanent connections, yes — heat-shrink tubing is significantly more reliable. Electrical tape adhesive degrades over time, especially in hot environments and under vibration, and can unwind from the connection. Heat-shrink tubing forms a permanent, tight mechanical bond that will not loosen or fall off. Use electrical tape for temporary test insulation, wire identification (color coding), and bundle wrapping. Use heat-shrink tubing for every permanent solder joint and wire splice.
Standard heat-shrink tubing provides a tight mechanical fit but is not fully waterproof — moisture can wick along the wire underneath. For outdoor, marine, and landscape LED installations where connections are exposed to rain or condensation, use adhesive-lined heat-shrink tubing. This type has a layer of hot-melt adhesive inside that melts during shrinking and seals around the wire, creating a waterproof bond. For indoor-only projects, standard tubing is more than adequate.
Once a solder joint is made, the joint is wider than the wire diameter, and tubing that fits snugly around the wire will not slide over the bulge of the solder joint. By sliding the tubing onto the wire first (and pushing it a few inches away from the work area so it does not shrink prematurely from the soldering iron’s heat), you ensure it is in position and ready to slide over the finished joint as soon as the solder cools. If you forget and the tubing cannot fit over the joint, you will have to desolder, slide the tubing on, and redo the joint.
Count the number of solder joints and wire splices in your project and multiply by about 1.5 inches (3–4 cm) per joint. A single LED with a resistor has at least two connection points (resistor-to-LED and wire-to-resistor), so two pieces of tubing per LED. For a 10-LED project, that is 20+ pieces. Tubing is inexpensive, so ordering extra is always worthwhile — you will use it in future projects. Add it to your LED order for combined shipping at no extra cost.
