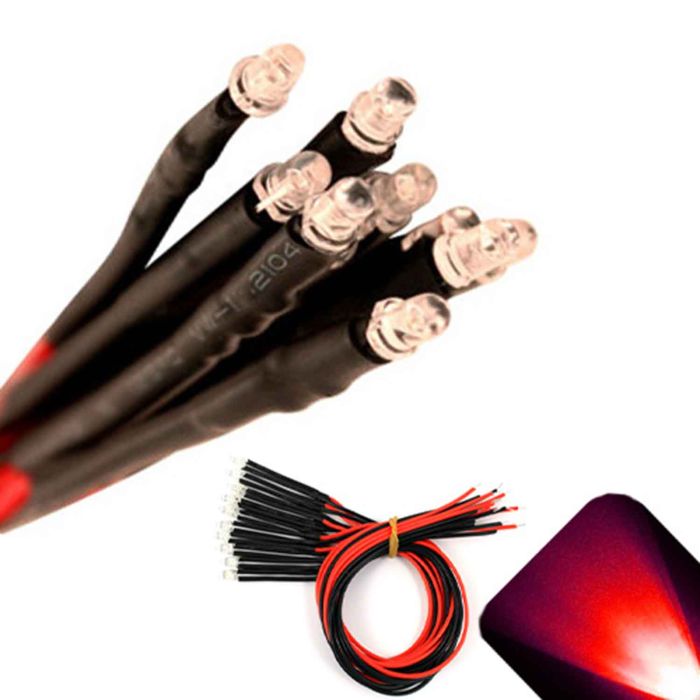

3mm 6v Pre-Wired Red LED - Ultra Bright (3v, 4v, 5v, 6v)

Rating:
100% of 100
$0.48
In stock
SKU
6V3MMPREWIREDRED

The 6v 3mm red pre-wired LED makes it almost the easiest way to add light nearly any project.

Our pre-wired LEDs are nothing but quality. The 6v 3mm red led puts out a nice color that is sure the illuminate your product or project. Our 3mm pre-wired leds have built in resistors so that they will work with the voltage that they are rated for. There is no need for you to add any additional resistors. The only thing you need to do is add power / ground and they will illuminate. It doesn't get much easier than that.

The 3mm pre-wired leds come with a built in resistor, all connections are heat shrinked in order to protect them and there is sufficient wire lead on all of them.

This single setup works well with the following voltages (you don't have to select a voltage when ordering): 3v, 4v, 5v, and 6v. If you are looking for a higher voltage setup then take a look at our 9v or 12v pre-wired LEDs that go up to 15v.

More Information

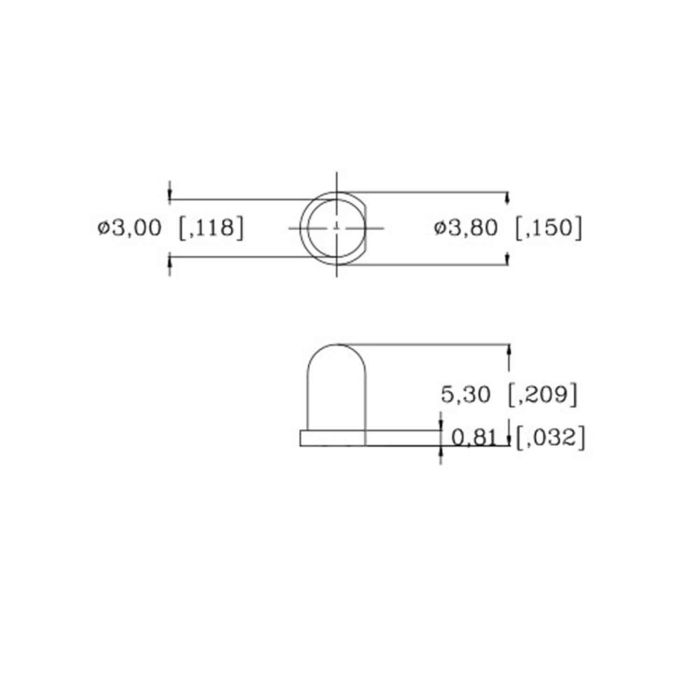

Size3mm Pre-Wired Round Top
ColorRed
Operating Voltage3v-6v (volts)
Wire LengthApproximately 15cm (6 inches)
Resistor Built InYes
Additional Resistors RequiredNo
Luminosity/Brightness8,000-10,000 mcd
Forward Voltage3v-6v (volts)
Shrink Wrapped ConnectionsYes
Current20mA
Wavelength620-630nm
Viewing Angle20-30 Degrees
Mount StyleCustom
Lens ColorClear
LED Brightness ClassSuper/Ultra/Extreme
