12v 5mm Frosted Cube LEDs - Built in Resistor (5-15v)

12V 5mm frosted cube LEDs are designed specifically for gauge cluster backlighting, HVAC control panel illumination, and any application where an LED…

Read full description & FAQ ↓

3 Items

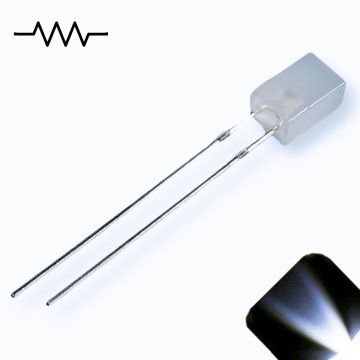

12V 5mm frosted cube LEDs are designed specifically for gauge cluster backlighting, HVAC control panel illumination, and any application where an LED must hide behind a translucent surface and produce even, diffused light in all directions. The rectangular frosted body scatters light broadly instead of focusing it into a forward beam, mimicking the omnidirectional glow of the miniature incandescent wedge bulbs that originally illuminated most automotive instrument clusters. Like all LEDs in our 12V built-in resistor category, these cube LEDs have an internal current-limiting resistor factory-calibrated for 12V DC — connect the anode (+) to 12V, connect the cathode (−) to ground, and the LED lights up with no external resistor needed. We stock 5mm frosted cube LEDs in every standard color: red, orange, yellow, green, blue, white (warm and cool), pink, UV, and RGB auto-cycling variants.

Automotive gauge cluster rebuilds are the primary use case for frosted cube LEDs. When factory incandescent gauge bulbs dim or burn out, the frosted cube LED is the ideal replacement because it distributes light evenly behind the gauge face — no hot spots, no dark bands, just smooth backlighting across the speedometer, tachometer, fuel gauge, and temperature gauge. GM trucks and SUVs (Silverado, Sierra, Tahoe, Suburban, Yukon), Ford F-series trucks, Dodge Ram, Toyota Tacoma, Honda Civic, and hundreds of other vehicles use similar cluster PCB layouts where cube LEDs solder directly into the factory LED positions. The frosted cube’s shape closely matches the T10 and T5 wedge bulb form factor used in many clusters, so it often requires only minor lead bending to fit the original socket or solder position. Popular color choices for gauge cluster work include ice blue for a modern appearance, green to match original GM OEM color, and cool white for maximum brightness and readability.

HVAC control panel and radio display backlighting is the second most common application. The buttons, sliders, and display panels on automotive HVAC controls, radio/infotainment units, and seat heater switches are typically backlit by small wedge bulbs or LEDs behind translucent plastic overlays. When these bulbs fail, the control markings become invisible at night, making the vehicle difficult to operate in the dark. Frosted cube LEDs restore illumination with brighter output, longer lifespan, and lower power draw than the original incandescent bulbs. The diffused body ensures the overlay is lit evenly, preventing the “flashlight behind plastic” look that round clear LEDs can create when used as backlights.

The 5mm frosted cube vs. the 3mm frosted cube: the 3mm frosted cube has a smaller body that fits tighter PCB positions, but produces slightly less light. The 5mm cube is the default choice for most gauge cluster and HVAC panel work — it fits the majority of factory LED positions and produces more light per LED. Measure the available space on your cluster PCB before ordering; if the 5mm cube’s body would contact adjacent components or the cluster housing, step down to 3mm.

Frosted cube vs. round top: if you need a focused indicator light that is meant to be seen directly (a status LED, a switch indicator, a signal lamp), our 5mm round top 12V LEDs are the better choice — their clear lens produces a concentrated forward beam. Frosted cubes are specifically for hidden backlighting where the LED is not directly visible to the user; instead, it illuminates the gauge face, control panel overlay, or diffuser panel from behind. Both types have the built-in resistor and connect directly to 12V DC with no external components.

RGB auto-cycling variants in the 5mm frosted cube form factor produce continuous color-changing effects behind gauge faces and control panels — a popular choice for custom show car builds where the instrument cluster cycles through colors for visual impact. The built-in IC automatically fades or jumps through red, green, blue, and blended colors from just two connections (12V and ground). No microcontroller or code required. For precise user-controlled color, use a standard RGB LED with an Arduino or ESP32 and external resistors on each channel.

Installation: desolder the factory LED or bulb from the cluster or panel PCB. Clear the solder holes with a solder sucker or desoldering braid. Insert the frosted cube LED with correct polarity — the longer lead is the anode (+), the shorter is the cathode (−). Solder both leads and trim flush with the back of the board. Test by applying 12V DC before reassembling the cluster. For a uniform appearance, replace all cluster LEDs at once in the same color. The frosted cube’s diffused body ensures consistent light color and intensity across the entire gauge face, eliminating the mismatched-brightness look that comes from mixing old and new LEDs. Browse the full 12V built-in resistor LED category to compare round top and cube form factors in both 3mm and 5mm sizes.

Frequently Asked Questions

Frosted cube LEDs are designed primarily for gauge cluster backlighting and HVAC control panel illumination. The frosted, rectangular body scatters light in all directions to evenly illuminate gauge faces, radio displays, and button overlays from behind. They replace dimmed or burnt-out factory incandescent wedge bulbs with brighter, longer-lasting LED backlighting. The built-in resistor means they connect directly to 12V DC with no additional components.
No. The current-limiting resistor is already built into the LED. Connect the anode (+, longer lead) to 12V DC and the cathode (−, shorter lead) to ground. The LED lights up at the correct brightness with no external components. Safe for 11–14V DC systems.
The 5mm cube has a larger body that produces more diffused light, making it the default for most gauge cluster positions. The 3mm cube has a smaller body for tighter PCB positions where the 5mm would contact adjacent components. Both have the same built-in resistor and connect directly to 12V DC. Measure your cluster’s LED positions before ordering to ensure proper fit.
Most gauge clusters from GM, Ford, Dodge, Toyota, and Honda use PCB-mounted LEDs in positions that accept the frosted cube form factor with minor or no lead bending. The cube shape approximates the T10/T5 wedge bulb size. Before ordering, remove your cluster and examine the factory LED or bulb positions — verify the solder pad spacing and available clearance. If the 5mm cube is too large for a particular position, the 3mm frosted cube fits tighter spots.
The most popular colors are ice blue for a modern, updated look; green to match factory OEM color on older GM trucks and SUVs; and cool white for maximum brightness and universal readability. Warm white gives a softer, amber-tinted appearance similar to the original incandescent bulbs. Red is common for sport-oriented gauges. Replace all cluster LEDs with the same color at once for a uniform appearance — mixing colors or mixing old and new LEDs creates an uneven look.
Not directly. DCC track power is bidirectional AC-like voltage. Add a bridge rectifier and smoothing capacitor to convert to DC first, then connect the frosted cube LED with no additional resistor needed. See the AC/DCC wiring guide for a step-by-step wiring diagram.
