Diffused LEDs

Diffused LEDs scatter light through a translucent lens instead of focusing it into a tight beam like clear-top DIP LEDs.

Read full description & FAQ ↓

Items 1-36 of 80

Diffused LEDs scatter light through a translucent lens instead of focusing it into a tight beam like clear-top DIP LEDs. The result is a soft, even glow visible from wide angles — typically 100–160° depending on the lens style — making diffused LEDs the go-to choice for panel indicators, model railroad building interiors, dashboard backlighting, guitar pedal status lights, dollhouse room lighting, and any application where you need the LED to be visible from the side rather than just straight-on. We stock diffused LEDs across four lens shape families and two lens tint styles, giving you fine-grained control over beam pattern, physical footprint, and off-state appearance.

Colored diffused vs. frosted (milky white) lens: This is the single most important distinction in the diffused LED catalog. A colored diffused LED has a tinted epoxy lens that matches the emitter color — a red LED has a red-tinted lens, a blue LED has a blue-tinted lens, and so on. The tint is visible even when the LED is off, which makes colored diffused LEDs easy to identify at a glance on a panel or dashboard. When lit, the color-matched tint reinforces the emitted color for a rich, saturated glow. A frosted (milky white) LED has a white or translucent-milky epoxy lens that appears neutral when the LED is off — you cannot tell the emitter color by looking at the unpowered LED. When lit, the milky lens diffuses the emitter color evenly across the entire dome, producing the widest, most uniform glow of any through-hole LED style. Frosted lenses are the top choice for model railroad building interiors and dollhouse lighting because the white lens is virtually invisible inside a scale structure when the lights are off, then produces a realistic warm or cool glow when powered. Colored diffused LEDs are preferred for control panels, guitar pedals, and status indicators where you want the LED color to be identifiable even before power is applied.

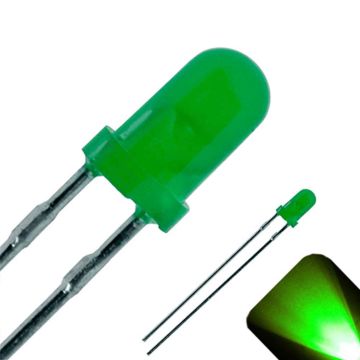

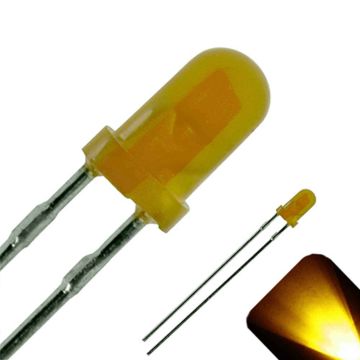

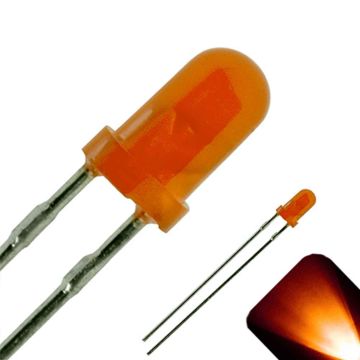

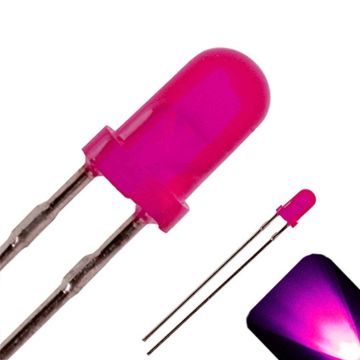

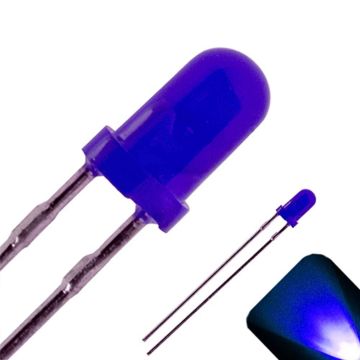

Lens shape families: We organize diffused LEDs into four shape groups, each offering a different physical profile and beam characteristic. Round top LEDs have the classic domed lens used in standard through-hole indicator circuits. Browse our round-top diffused LEDs in 3mm, 5mm, and 10mm sizes, in both colored and frosted lens options. Flat top LEDs have a flat, flush-mounted lens surface that sits level with the top of the LED body. The flat surface distributes light more evenly across the viewing hemisphere and provides a clean look in flush-mount panel applications — see our 3mm and 5mm flat-top diffused LEDs in colored and frosted variants. Straw hat LEDs have a low-profile, wide-brim lens shape that produces an extra-wide beam angle (often 120–140°) while maintaining a very low profile above the PCB. Browse our 5mm diffused straw hat LEDs for applications like backlighting panels, edge-lit signs, and display lighting. Tower LEDs have a rectangular body with a small, flat emitting face — our 2mm diffused tower LEDs are exceptionally compact and purpose-built for N and Z scale model railroad applications where even a 3mm LED would be oversized.

Size guide — 2mm, 3mm, 5mm, and 10mm: The millimeter measurement refers to the diameter of the LED lens (or the width of the body for tower-style LEDs). 5mm is the most popular size overall — bright, widely available in every color, and compatible with standard 5mm LED holders and panel bezels. 3mm LEDs fit tighter spaces and are proportionally correct for HO and N scale model railroad structures, guitar pedal enclosures with limited panel space, and miniature wargaming terrain. 10mm LEDs produce a larger visible glow area for decorative displays, large-scale panel indicators, and automotive cluster accents. 2mm tower LEDs are the smallest option in the catalog — designed specifically for N scale and Z scale model railroading where even 3mm would be visually oversized. All sizes share the same electrical characteristics by color: same forward voltage ranges, same 20mA maximum current, same resistor formulas.

Colors and wavelengths: Diffused LEDs are available across the full visible spectrum: red, orange, amber, yellow, green, blue, white (warm and cool), UV, and pink. Each product page lists the peak emission wavelength in nanometers, which is essential for color-matching across a build — for example, ensuring all red indicators on a control panel emit the same shade of red. White diffused LEDs come in two color temperatures: warm white (~3000–4000K) produces a soft, incandescent-like glow ideal for model railroad building interiors, dollhouse rooms, and accent lighting. Cool white (~5500–6500K) produces a crisp, daylight-toned output suited for modern commercial building interiors, task lighting simulations, and clean panel indicators. Color temperatures are approximate and vary by manufacturer lot.

Electrical specifications and resistor selection: Forward voltage depends on emitter color: red/orange/yellow/amber LEDs typically require 2.0–2.2V; blue/green/white/UV LEDs typically require 3.0–3.2V. Maximum forward current is 20mA for all standard diffused LEDs. Every bare LED must be paired with a current-limiting resistor — without one, the LED will draw excessive current and burn out almost instantly. Use our LED resistor calculator to find the correct resistor value for any supply voltage, or check the resistor table on each product page for common voltages (5V, 9V, 12V). For AC power sources — model railroad transformers, DCC track power, 12V landscape lighting wire — you need a bridge rectifier and smoothing capacitor to convert to clean DC before the LED circuit. See the AC/DCC wiring guide for a complete wiring diagram. New to LEDs? Pre-wired LEDs are the easiest starting point — the resistor is already soldered onto the wire, so you just connect power and ground.

Related categories: For maximum on-axis brightness with a tight beam, see clear-top DIP LEDs — their water-clear lens concentrates light into a 15–30° cone, producing much higher mcd readings on-axis. For automatic blinking, flickering, or color-cycling effects without a microcontroller, browse animated LEDs. For multi-color control from a single package, see RGB LEDs. If you need surface-mount components for high-density PCB layouts, check SMD LEDs. For 12V circuits where you want to skip the resistor entirely, our 12V built-in resistor LEDs connect directly to any 12V DC source.

Clear-top LEDs have a transparent, water-clear lens that focuses light into a narrow 15–30° beam. They produce the highest on-axis brightness (measured in millicandela) and are ideal for spotlights, fiber-optic coupling, and directional indicators. Diffused LEDs have a translucent lens that scatters light across 100–160°. The total light output is similar, but it is spread over a much wider area, producing a soft glow visible from the side. Diffused LEDs are preferred for panel indicators, model railroad building interiors, and any application where the LED needs to be seen from multiple angles rather than just straight-on.
Colored diffused LEDs have a tinted lens that matches the emitter color — a red LED has a red lens, a blue LED has a blue lens. The tint is visible when the LED is off, making it easy to identify on a panel. Frosted (milky white) LEDs have a neutral white lens that looks the same regardless of emitter color when unpowered. When lit, the frosted lens diffuses color evenly across the entire dome for the most uniform glow. Frosted is preferred for model railroad building interiors and dollhouses because the white lens is invisible inside a scale structure when the power is off. Colored diffused is preferred for indicators and status lights where you want the LED color identifiable at all times.
Forward voltage (Vf) is determined by the emitter color, not the lens type. Red, orange, amber, and yellow diffused LEDs typically need 2.0–2.2V. Blue, green, white, UV, and pink diffused LEDs typically need 3.0–3.2V. The exact Vf is listed on each product page. The diffused or frosted lens does not change the electrical requirements — a diffused red LED uses the same resistor value as a clear-top red LED at the same supply voltage.
For HO scale buildings, 3mm frosted warm white LEDs are the most popular choice — small enough to hide inside a structure while providing even, realistic room lighting. For N scale, 2mm diffused tower LEDs are even more compact and avoid the oversized appearance a 3mm LED can have at that scale. For O scale and larger structures, 5mm frosted warm white LEDs produce a bigger pool of light suitable for the larger interior volume. Frosted (milky white) lenses are strongly preferred over colored diffused for building interiors because the white lens is invisible inside the structure when the power is off.
Yes — every bare LED requires a current-limiting resistor in series to prevent overcurrent damage. The lens type (diffused, frosted, or clear) does not affect this requirement. Use our LED resistor calculator to find the correct value for your supply voltage and LED color. The only LEDs that skip the external resistor are 12V built-in resistor LEDs and pre-wired LEDs, which have the resistor already integrated.
All LEDs — diffused, frosted, and clear — are DC-only devices. Connecting an LED directly to AC will cause visible flicker and eventual damage from reverse voltage. For AC model railroad transformers or DCC track power, add a bridge rectifier and a smoothing capacitor to convert AC to clean DC. The same applies to 12V AC landscape lighting transformers. See our AC/DCC wiring guide for a complete diagram with component values.
