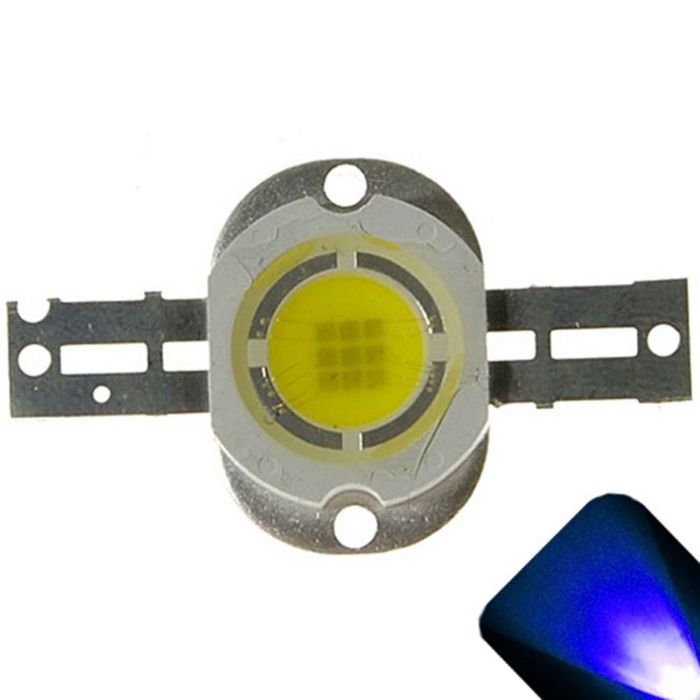

10 Watt High Power LED - Blue
In stock
- SKU
- 10WATTLEDBLUE
- Color
- Blue
- Size
- 10 Watt Power LED
Description / 10 Watt High Power LED - Blue
The 10 Watt High Power Blue High Power LED delivers significantly more output than standard 20mA indicator LEDs — built for applications where brightness matters: flashlight builds, grow lights, reef aquarium fixtures, stage lighting, and DIY fishing lights.
Blue/royal blue wavelength is critical for reef aquarium coral growth (zooxanthellae photosynthesis) and drives dramatic coral fluorescence.
| Type | 10 Watt High Power |
| Forward Voltage | 9.00-11.00v |
| Brightness | 200-300 lm (Lumens) |
| Viewing Angle | 140 Degrees |
| Drive Current | 700-1000mA (.7-1A) |
| Power | 10 Watt |
Mounting: Requires a substantial heatsink and active cooling (fan) for continuous operation. Thermal management is critical at 10W — without adequate heatsinking, the LED will overheat and fail rapidly.
Common applications
- Primary: DIY flashlight builds (BudgetLightForum, CandlePowerForums), reef aquarium lighting (royal blue 450–460nm drives coral growth and fluorescence — Reef2Reef community), UV curing setup accent
- DIY flashlight modification: Replace or upgrade the emitter in Convoy S2+, Emisar D4V2, Noctigon, Maglite, and P60 drop-in hosts. The flashlight modding community (BudgetLightForum, CandlePowerForums, r/flashlight) is the largest buyer of individual high-power star LEDs.
- Stage and theatrical lighting: Build RGBW par cans and spot fixtures with individually driven color channels. DMX-controllable with constant-current drivers.
- Machine vision and inspection: High-power illumination for camera inspection systems, UV fluorescence inspection, and industrial quality control.
Power and thermal management
At 10W, thermal management is critical. This LED requires a substantial aluminum heatsink and active cooling (fan) for continuous operation — without adequate heatsinking it will overheat and fail rapidly. Use thermal paste between the LED and heatsink. Use a constant-current LED driver (Meanwell LDD series, BuckPuck) rather than a simple resistor — constant-current drivers maintain consistent brightness and prevent thermal runaway.
Pair with
- Power supplies — constant-current LED drivers (Meanwell LDD recommended)
- TIR optics / reflectors — focus or spread the beam for your application (60° for flood, 15° for throw)
- Aluminum heatsink + thermal paste — essential for continuous operation
Frequently Asked Questions
Sold individually (1 LED per quantity ordered).
More Information
| Size | 10 Watt Power LED |
|---|---|
| Color | Blue |
| Luminosity/Brightness | 200-300 lm (Lumens) |
| Forward Voltage | 9.00-11.00v |
| Current | 700-1000mA (.7-1A) |
| Wavelength | 460-465nm |
| Viewing Angle | 140 Degrees |
| Mount Style | Surface / Custom Mount |
| Lens Color | Clear / Other |
| LED Brightness Class | Super/Ultra/Extreme |
| Documentation Link | Documentation: 10 Watt High Power Blue LED Datasheet / Specifications |
