SPST - 12v (Volt) LED Lit Switch / Toggle - Green LED


Availability: In stock


Quick Overview

These are great 12v green LED switches that can be used for a large range of applications.

SPST - 12v (Volt) LED Lit Switch / Toggle - Green LED

More Views


These are great 12v Green LED switches that can be used for a large range of applications! The switch has three "tabs", one for 12v +, one for ground -, and one for your 12v accessory item that you want to control the power to. The switch simply takes the 12v that you will use to light the LED and will apply that to your 12v switched accessory when the switch is "on" and it will remove it when the switch is in the "off" position.

Since the LED is made to work with 12v, it is recommend to use for 12v. If you need, you can use at a lower voltage, but the LED may or may not power on properly at smaller voltages. These work great in automotive applications. We have switch covers and guards available for these.

The mounting hole size and size for switch covers is 12mm or approximately 0.5" (inches).


  • ON/OFF built in led.
  • 12v applications

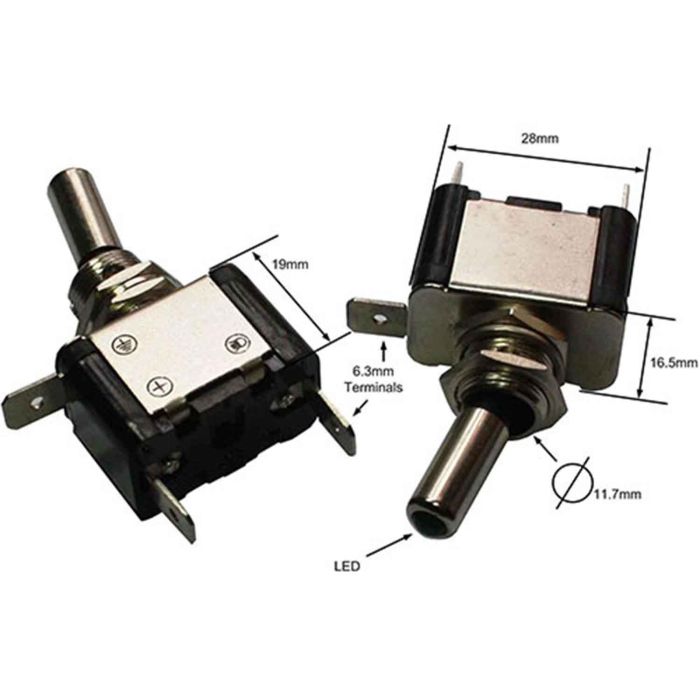

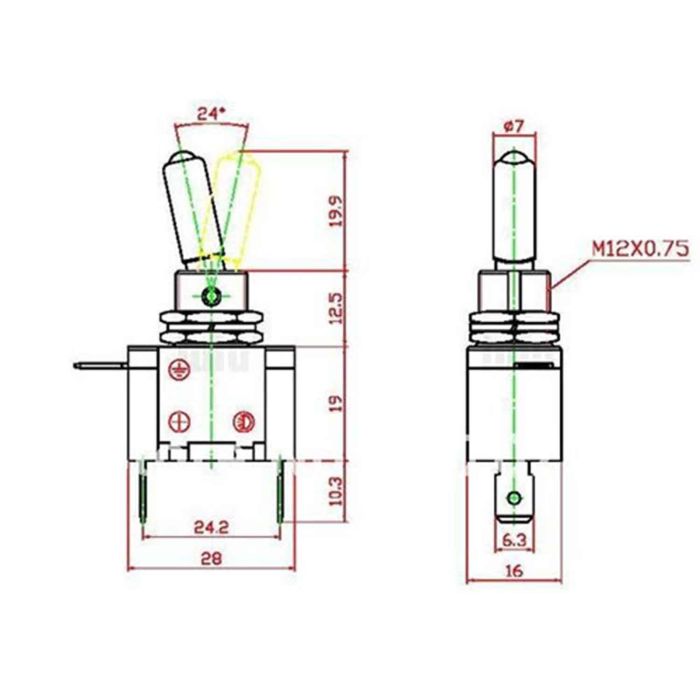

  • 16mm x 28mm. shaft lengh--18mm, 7mm diameter.
  • 12mm for screw hole.
  • 30A/12VDC

Additional Information

Current 30A at 12VDC
Mount Style Round Hole - 12mm / .5"
Color Pure Green
