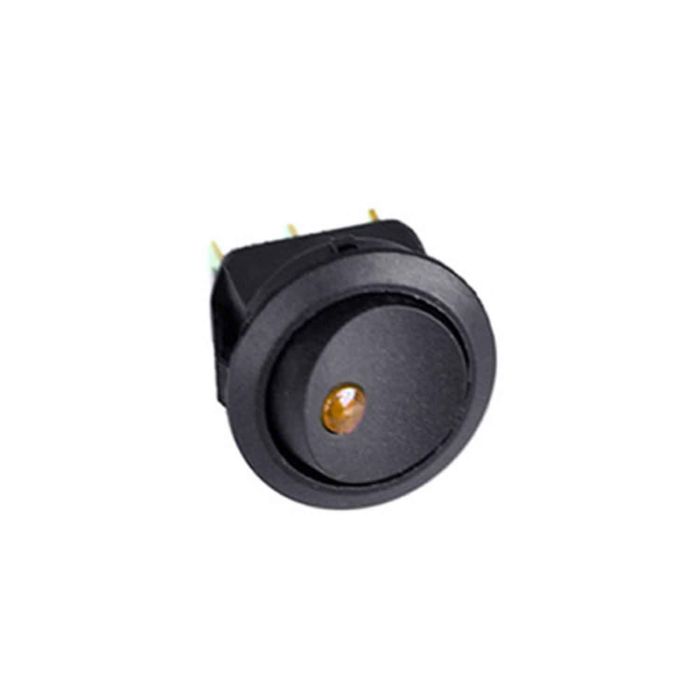

SPST - 12v (Volt) LED Lit Rocker Switch / Toggle - Yellow / Gold / Amber LED
These are great 12v Yellow / Gold / Amber LED rocker switches that can be used for a large range of applications! The switch has three "tabs", one for 12v +, one for ground -, and one for your 12v accessory item that you want to control the power to. The switch simply takes the 12v that you will use to light the LED and will apply that to your 12v switched accessory when the switch is "on" and it will remove it when the switch is in the "off" position.
Since the LED is made to work with 12v, it is recommend to use for 12v. If you need, you can use at a lower voltage, but the LED may or may not power on properly at smaller voltages. These work great in automotive applications.
The mounting hole size is approximately 3/4" (0.75 inches).
- ON/OFF built in led.
- 12v applications
- Easy setup. 3/4" hole is required and the switch will sit in nicely, don't need cut outs.
- The switch comes with a keyhole slot to prevent unwanted rotation.
- A yellow / gold / amber LED will be lighted up when the switch is turned on.
- 2 pole design (On/Off), 3rd pole is ground for the LED
|Current||16A at 12VDC|
|Mount Style||3/4" (Inch) Round Hole|
