5mm Flat Top Wide Angle Red LED - Wide Angle
- Buy 50 for $0.20 each and save 5%
- Buy 100 for $0.19 each and save 10%
- Buy 250 for $0.18 each and save 14%
- Buy 500 for $0.17 each and save 19%
- Buy 1000 for $0.16 each and save 24%

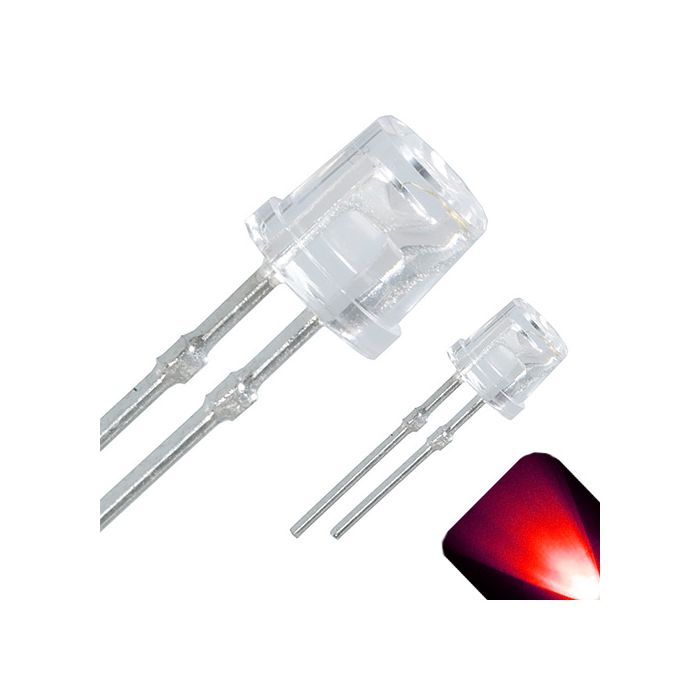

The 5mm flat top red led is one of the most popular wide angle leds available.
The red color 5mm flat top LED is a vibrant color that you can't go wrong with. This size led is commonly used in many custom projects, car lighting, models, and nearly every other project you can think of. They are also used for custom projects or in mass production products as well. This is a extremely popular size.
This size and type of led is so popular because it is bright, easy to use, small, and versatile. It can fit in most all spaces. The trait that sets this LED apart from others in a similar category is that it is a wide angle light. This means that the light is more spread out and not so direct. This can help out a lot when trying to illuminate something in small spaces.
We use and have only the highest quality leds out there.
Size | 5mm Flat Top |
---|---|
Color | Red |
Luminosity/Brightness | 10,000-12,000 mcd |
Forward Voltage | 1.9-2.1v |
Current | 20mA |
Wavelength | 620-630 nm |
Viewing Angle | 105-115 Degrees |
Mount Style | Through Hole (DIP) |
Lens Color | Clear |
LED Brightness Class | Super/Ultra/Extreme |
Documentation Link | Documentation: 5mm Flat Top Wide Angle Red LED - Wide Angle - Datasheet / Specifications |
