5mm Round Top Yellow / Gold Breathing / Fading LED - Super Bright
In stock
- SKU
- 5MMROUNDTOPFADINGLEDYELLOW
- Color
- Yellow/Gold
- Size
- 5mm Round Top Fading / Breathing / Pulsing LED
- Buy 50 for $0.21 each and save 5%
- Buy 100 for $0.20 each and save 9%
- Buy 250 for $0.19 each and save 14%
- Buy 500 for $0.18 each and save 18%
- Buy 1000 for $0.16 each and save 27%

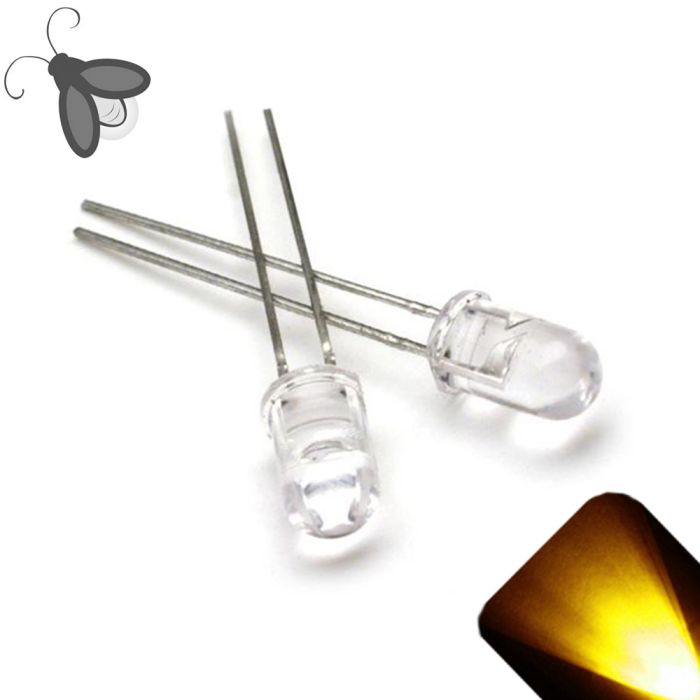

Description / 5mm Round Top Yellow / Gold Breathing / Fading LED - Super Bright
The 5mm Yellow Fading / Breathing LED smoothly ramps brightness up and down in a continuous breathing cycle — a slow, pulsing glow that never fully turns off. No 555 timer, no oscillator, no microcontroller required — just apply DC power through a current-limiting resistor and it starts immediately.
| Size | 5mm (T-1 3/4) |
| Effect | Smooth fade in/out (breathing cycle) |
| Forward Voltage | 1.9-2.1v |
| Brightness | 7,000-9,000mcd |
| Package | T-1 3/4 through-hole DIP |
| Drive Current | 20mA typical |
Built for
- Cosplay — Iron Man arc reactor: A breathing blue LED achieves the iconic slow-pulse glow with just a coin cell + resistor. Most Instructables builds use an Arduino Nano + PWM code — this LED replaces the Arduino entirely. Documented across therpf.com, Instructables, and r/cosplay.
- Energy cores and implants: Halo energy core (green), Mass Effect omni-tool (orange), cyberpunk implants, Terminator eye (red), lightsaber crystal chamber ambient glow.
- Sleep and standby indicators: The “MacBook sleep light” effect — a gentle pulse signaling a device is powered but idle. Use on custom PC builds, project enclosures, or prop electronics.
- Ambient mood lighting: Inside frosted glass, resin castings, or 3D-printed diffuser housings for a slow-pulse decorative effect. Nightlights, meditation room accents, aquarium scenery.
- Scale model reactor glow: Sci-fi spaceship engine nacelles, reactor cores, power crystals. The breathing effect suggests active energy without harsh steady-on.
Makeshift controller trick: Wire this fading LED in series with standard LEDs, and the entire string will breathe together in sync. One breathing LED makes a group of regular LEDs pulse without any controller.
Why this instead of Arduino PWM? An Arduino-based breathing effect requires a microcontroller ($5+), code, USB programming, and continuous MCU power. This LED achieves the same visual result with one component + one resistor. Trade-off: you cannot adjust the fade speed or curve.
Polarity matters — long lead is positive (anode). Add a current-limiting resistor matched to your supply voltage. Drop-in replacement for any standard 5mm LED — same footprint, no circuit changes.
Frequently Asked Questions
Complete your build
- Battery holders — AA, 9V, and coin cell for portable builds
- Switches — toggle, rocker, and mini slide
- Hook-up wire — 22–30 AWG for clean wiring
- LED Resistor Calculator — find the right resistor for your supply voltage
Sold individually (1 LED per quantity ordered).
More Information
| Size | 5mm Round Top Fading / Breathing / Pulsing LED |
|---|---|
| Color | Yellow/Gold |
| Animation Type | Fading / Breathing Style |
| Luminosity/Brightness | 7,000-9,000 mcd |
| Forward Voltage | 1.9-2.1v |
| Current | 20mA |
| Wavelength | 590-595nm |
| Viewing Angle | 20-30 Degrees |
| Mount Style | Through Hole (DIP) |
| Lens Color | Clear |
| LED Brightness Class | Super/Ultra/Extreme |
