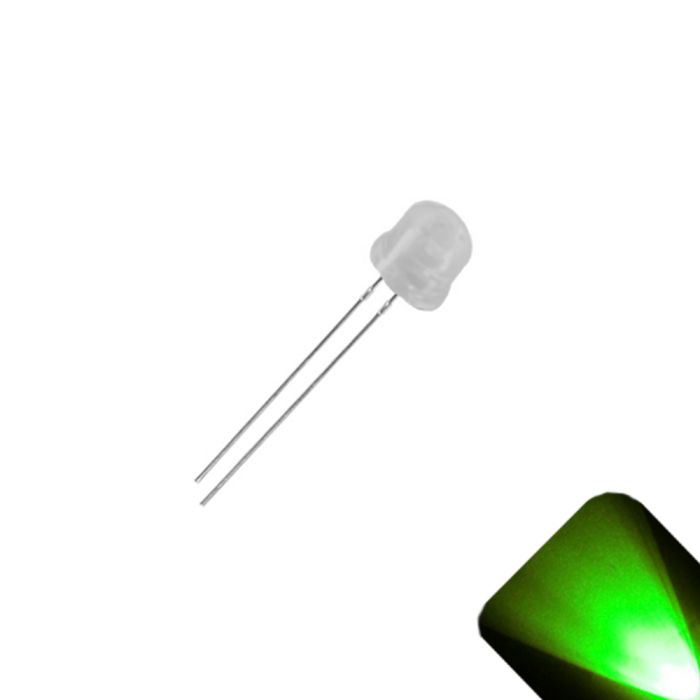

4.8mm / 5mm Straw Hat with Frosted Diffused Lens LED - Pure Green LED - Ultra Bright
In stock
- SKU
- 5MMSTRAWHATFROSTEDLEDGREENPURE
- Color
- Pure Green
- Size
- 4.8mm / 5mm Straw Hat Frosted / Milky Diffused LED
- Buy 50 for $0.21 each and save 5%
- Buy 100 for $0.20 each and save 9%
- Buy 250 for $0.19 each and save 14%
- Buy 500 for $0.18 each and save 18%
- Buy 1000 for $0.16 each and save 27%
Description / 4.8mm / 5mm Straw Hat with Frosted Diffused Lens LED - Pure Green LED - Ultra Bright
The 5mm Straw Hat Pure Green LED delivers a Diffused viewing angle from a low-profile, flat body — the widest beam of any standard non-concave DIP LED. Where round-top LEDs focus light into a narrow forward cone, the straw hat floods a wide area below and to the sides. This makes it the natural choice for area lighting in models, displays, and any build where you need light to spread rather than focus.
The diffused lens adds an extra layer of scatter for the softest possible area glow — no visible die point, no hotspot, just smooth omnidirectional illumination.

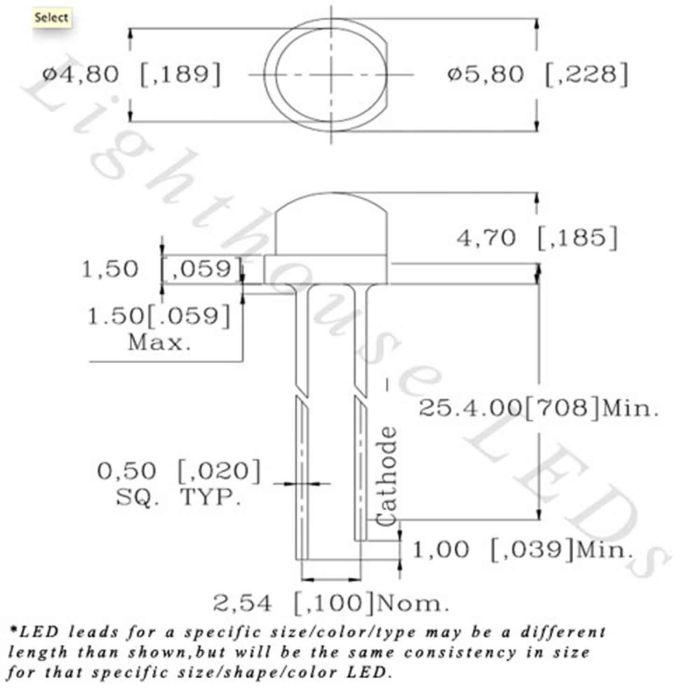

| Size | 5mm Straw Hat (4.8mm body width) |
| Forward Voltage | 3.0-3.4v |
| Brightness | 10,000-12,000mcd |
| Viewing Angle | Diffused |
| Lens | Diffused |
| Package | Straw Hat / Wide Angle through-hole DIP |
| Drive Current | 20mA typical |
Why straw hat?
A standard round-top 5mm LED concentrates its output into a 15–30 degree cone. The straw hat spreads that same output across Diffused. Think of it as flood vs. spot: the straw hat floods a wide area with even light, while a round-top spotlights a single point. Neither is “better” — they serve different purposes.
Common applications
- Model railroad streetlamps and area lighting: model railroad signal glow (proceed). Mount inverted inside a lamppost housing and the wide beam floods a realistic pool of light at ground level. One straw hat replaces 2–3 round-tops for the same coverage area. Scales: HO (1:87), N (1:160).
- Christmas village and holiday displays: traffic signal simulation. The wide angle means one LED lights up an entire miniature building interior.
- Automotive gauge cluster backlighting: The wide beam provides even illumination behind gauge faces without hotspots — same principle as flat top LEDs but with an even wider spread.
- Architectural models: Interior room lighting for presentation models. The wide angle fills rooms evenly at 1:100 and 1:200 scale.
- Cosplay and prop lighting: Behind translucent armor panels, inside helmet visors, under frost-effect prop surfaces. The wide spread creates an even glow without visible point sources.
- Aquarium moonlighting: Blue or purple straw hats provide soft lunar simulation — the wide angle avoids creating a visible bright spot on the substrate.
- LED throwies and art installations: The wide angle means each light point is visible from nearly any position in the room — ideal for magnetic art pieces and guerilla lighting.
Fits standard 5mm LED holders, bezels, and panel-mount clips.
Frequently Asked Questions
Sold individually (1 LED per quantity ordered).
More Information
| Size | 4.8mm / 5mm Straw Hat Frosted / Milky Diffused LED |
|---|---|
| Color | Pure Green |
| Luminosity/Brightness | 10,000-12,000 mcd |
| Forward Voltage | 3.0-3.4v |
| Current | 20mA |
| Wavelength | 515-525nm |
| Viewing Angle | Diffused |
| Mount Style | Through Hole (DIP) |
| Lens Color | Frosted / Milky / White - Not Colored |
| LED Brightness Class | Super/Ultra/Extreme |
| Documentation Link | Documentation: 5mm Frosted Straw Hat Green LED Datasheet / Specifications |
