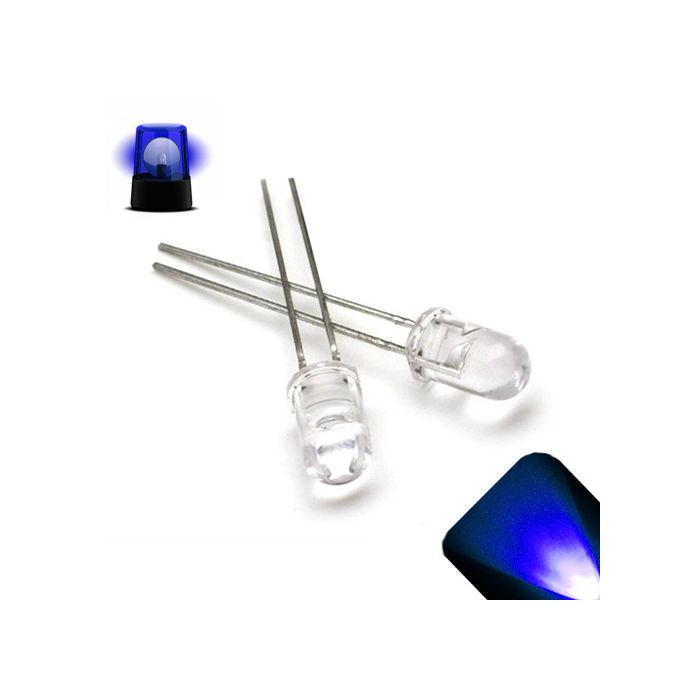

5mm Round Top Blue Slow Flashing 1Hz LED - Ultra Bright
In stock
- SKU
- 5MMROUNDTOPFLASHINGLEDBLUE
- Color
- Blue
- Size
- 5mm Round Top Clear Flashing
- Buy 50 for $0.21 each and save 5%
- Buy 100 for $0.20 each and save 9%
- Buy 250 for $0.19 each and save 14%
- Buy 500 for $0.18 each and save 18%
- Buy 1000 for $0.16 each and save 27%
Description / 5mm Round Top Blue Slow Flashing 1Hz LED - Ultra Bright
The 5mm Blue Slow Flashing 1Hz LED blinks on and off once per second with a steady, rhythmic pulse — the classic signal blink rate. No 555 timer, no oscillator, no microcontroller required — just apply DC power through a current-limiting resistor and it starts immediately.
| Size | 5mm (T-1 3/4) |
| Effect | ~1Hz (60 flashes/min) |
| Forward Voltage | 3.0-3.4v |
| Brightness | 12,000-14,000mcd |
| Package | T-1 3/4 through-hole DIP |
| Drive Current | 20mA typical |
Built for
- Model railroad grade crossings: Drop two red 1Hz LEDs into a crossbuck housing for prototypical alternating flashers — no Dallee board, no Azatrax controller, just wire and go. 3mm for HO/N scale, 5mm for O/G scale.
- Security system indicators: The classic slow-blink red LED that says “armed” — mount in a panel bezel on a project enclosure or alarm box.
- Caution and warning lights: Amber/yellow 1Hz for construction barricade models, runway edge markers, marine navigation buoys.
- Guitar pedal status blink: Self-blinks at power-up to confirm the pedal is active — no firmware, no PWM code.
- Beginner electronics project: The simplest possible blinking circuit — power + resistor + LED. No code, no IC, no breadboard. Instant reward for a first-time builder.
Makeshift controller trick: Wire this LED in series with standard LEDs, and the entire string will blink together at 1Hz. One flashing LED as the “master” drives several regular LEDs in a synchronized blink.
Why this instead of a 555 timer? A 555-based blinker needs the timer IC, two resistors, a capacitor, and a breadboard. This LED replaces all of that with a single component. Trade-off: you cannot adjust the blink rate. If 1Hz is what you need, this is the simplest solution.
Polarity matters — long lead is positive (anode). Add a current-limiting resistor matched to your supply voltage. Drop-in replacement for any standard 5mm LED — same footprint, no circuit changes.
Frequently Asked Questions
Complete your build
- Battery holders — AA, 9V, and coin cell for portable builds
- Switches — toggle, rocker, and mini slide
- Hook-up wire — 22–30 AWG for clean wiring

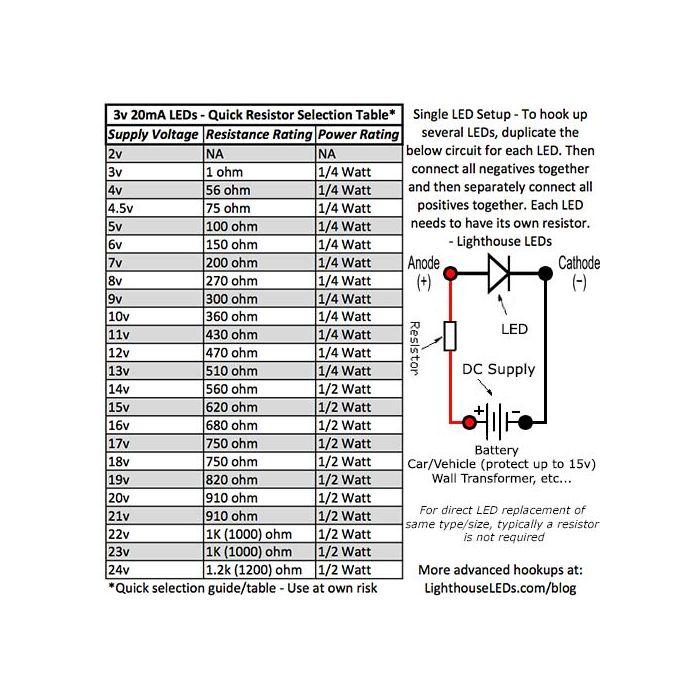

- LED Resistor Calculator — find the right resistor for your supply voltage
Sold individually (1 LED per quantity ordered).
More Information
| Size | 5mm Round Top Clear Flashing |
|---|---|
| Color | Blue |
| Animation Type | 1Hz Flashing / Blinking On / Off |
| Luminosity/Brightness | 12,000-14,000 mcd |
| Forward Voltage | 3.0-3.4v |
| Current | 20mA |
| Wavelength | 460-465nm |
| Viewing Angle | 20-30 Degrees |
| Mount Style | Through Hole (DIP) |
| Lens Color | Clear |
| LED Brightness Class | Super/Ultra/Extreme |
