5mm 9v Pre-Wired Warm / Soft White LED - Ultra Bright (7v, 8v, 9v)
In stock
- SKU
- 9V5MMPREWIREDWARMWHITE
- Color
- Warm / Soft White
- Size
- 5mm Pre-Wired Round Top
Description / 5mm 9v Pre-Wired Warm / Soft White LED - Ultra Bright (7v, 8v, 9v)

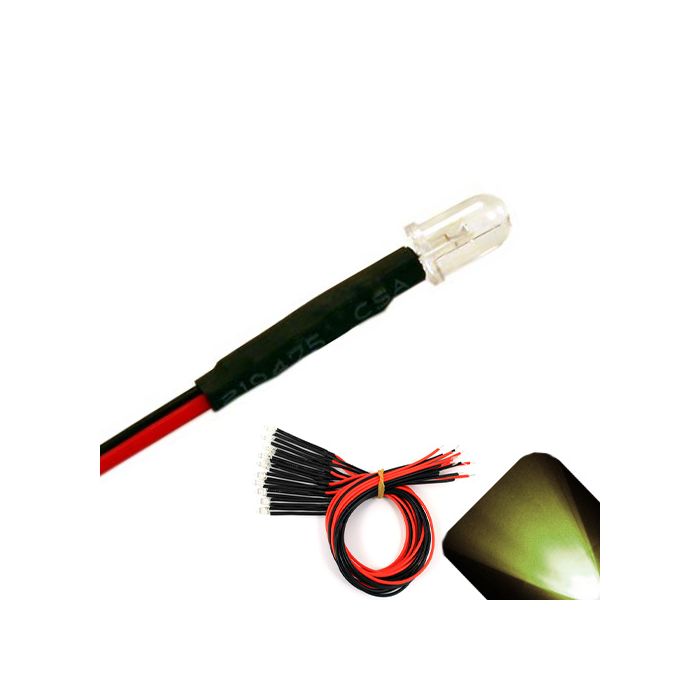

The 5mm 9V Pre-Wired Warm White LED ships ready to install with Approximately 15cm (6 inches) leads and a built-in current-limiting resistor. Connect directly to standard 9V battery (snap connector), guitar pedal 9V supply, or any 7–9V DC source — no resistor calculation and no extra components needed. The go-to led for 9v battery-powered diorama interiors, portable model displays, and warm indicator lighting.
Warm white (~3000K) produces a realistic incandescent glow — the natural choice for building interiors in portable dioramas and display models.
The 5mm (T-1¾) head is the most popular standard DIP size. Fits all standard 5mm LED holders, bezels, and panel-mount clips. Versatile for model railroad structures, automotive, RC vehicles, and panel indicators.
| Size | 5mm (T-1 3/4) |
| Operating Voltage | 7V – 9V DC (7V, 8V, and 9V) |
| LED Forward Voltage | 7v-9v (volts) |
| Drive Current | 20mA typical |
| Brightness | 13,000-16,000mcd |
| Viewing Angle | 20-30 Degrees |
| Wire | Approximately 15cm (6 inches) leads, heat-shrink protected connections |
| Resistor | Built-in — no external resistor needed |
Designed for
- Guitar pedal status indicator: Standard 9V pedal power means this LED connects directly to your circuit — no resistor, no regulator. Works with Boss, MXR, EHX, and all DIY stompbox builds. Visible from a standing position looking down at your pedalboard.
- Portable dioramas and displays: Single 9V battery powers the display for hours. Military dioramas, architectural models, and scale scenes at shows and competitions.
- Cosplay and wearable props: A 9V battery is small enough to hide inside armor, helmets, and weapon props. Pre-wired means no soldering to tiny resistor leads — just connect and go.
- Science fair and school projects: Safe, low-voltage, plug-and-play LED that works with a single 9V battery. No resistor math — perfect for students learning circuits for the first time.
- Hobby electronics enclosures: Power indicator for any project box, pedal, or instrument running on a 9V snap connector or wall adapter.
Wiring
Red wire = positive (+). Black wire = negative (−). Reversing the wires will not damage the LED, but it will not light. Factory leads are Approximately 15cm (6 inches) leads with heat-shrink protected joints. For wiring tips, extending leads, and connecting multiple LEDs, see our Pre-Wired LED Voltage Guide.
Which voltage do I need?
Not sure which voltage tier matches your power source? See our complete Pre-Wired LED Voltage Guide — covers automotive, model railroad, USB, Arduino, Christmas village, guitar pedal, and battery-powered projects with a quick-reference table.
Department 56 village accessories use 2.5–3V adapters, which are below the operating range of these pre-wired LEDs.
Complete your project
- Hook-up wire — extend your leads with 24–26 AWG stranded wire, splice with solder + heat shrink
- Switches — toggle, rocker, and mini slide for on/off control
- Power supplies — wall adapters and battery holders for your voltage
- 5mm LED Holders / Bezels — snap-in panel-mount clips
- Heat shrink tubing — protect extended wire joints
Frequently Asked Questions
Sold individually (1 LED per quantity ordered).
More Information
| Size | 5mm Pre-Wired Round Top |
|---|---|
| Color | Warm / Soft White |
| Operating Voltage | 7v-9v (volts) |
| Wire Length | Approximately 15cm (6 inches) |
| Resistor Built In | Yes |
| Additional Resistors Required | No |
| Luminosity/Brightness | 13,000-16,000 mcd |
| Forward Voltage | 7v-9v (volts) |
| Shrink Wrapped Connections | Yes |
| Current | 20mA |
| Wavelength | N/A Warm White |
| Viewing Angle | 20-30 Degrees |
| Mount Style | Custom |
| Lens Color | Clear |
| LED Brightness Class | Super/Ultra/Extreme |
