5mm 12v Pre-Wired Warm / Soft White LED - Ultra Bright (10v, 11v, 12v, 13v, 14v, 15v)
In stock
- SKU
- 12V5MMPREWIREDWARMWHITE
- Color
- Warm / Soft White
- Size
- 5mm Pre-Wired Round Top
Description / 5mm 12v Pre-Wired Warm / Soft White LED - Ultra Bright (10v, 11v, 12v, 13v, 14v, 15v)

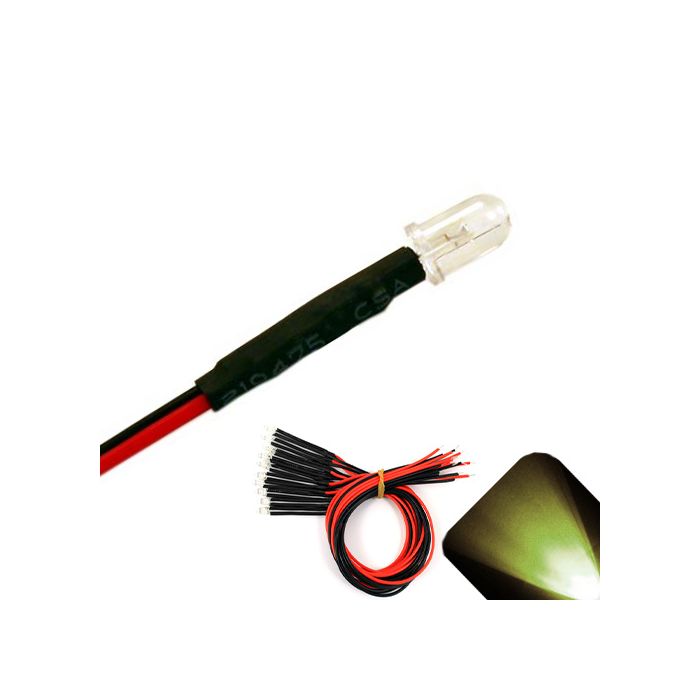

The 5mm 12V Pre-Wired Warm White LED ships ready to install with Approximately 15cm (6 inches) leads and a built-in current-limiting resistor. Connect directly to model railroad 12V accessory bus, automotive 12V system, RV house battery, marine 12V bus, or 12V DC power supply — no resistor calculation and no extra components needed. The most popular pre-wired led for model railroad building interiors — warm white (~3000k) produces the realistic glow of incandescent room lighting at ho and n scale.
Warm white is the #1 choice for model railroad structure lighting. The ~3000K color temperature simulates the warm glow of incandescent bulbs — exactly what residential building interiors look like at scale.
The 5mm (T-1¾) head is the most popular standard DIP size. Fits all standard 5mm LED holders, bezels, and panel-mount clips. Versatile for model railroad structures, automotive, RC vehicles, and panel indicators.
| Size | 5mm (T-1 3/4) |
| Operating Voltage | 10V – 15V DC (10V, 11V, 12V, 13V, 14V, and 15V) |
| LED Forward Voltage | 10v-15v (volts) (15v Not Recommended Continuous) |
| Drive Current | 20mA typical |
| Brightness | 13,000-16,000mcd |
| Viewing Angle | 20-30 Degrees |
| Wire | Approximately 15cm (6 inches) leads, heat-shrink protected connections |
| Resistor | Built-in — no external resistor needed |
Designed for
- Model railroad layouts: Wire directly to your 12V accessory bus — no resistor math, no external components. Warm white for building interiors, 5mm head works at HO (1:87) and O (1:48) scale. DCC and DC layouts alike.
- Automotive and motorcycle: Dashboard indicator relamp, footwell accent, instrument cluster backlight — connects directly to 12V vehicle electrical.
- RV and camper van: Dome light accent, reading light, porch light indicator — runs directly off your 12V house battery with no extra wiring.
- Marine and boat: Panel indicators for bilge pump, battery switch, and blower status. Note: these LEDs are not waterproof — mount in a protected location or inside a sealed enclosure.
- RC crawlers and scale vehicles: Headlights, taillights, and turn signals for Traxxas TRX-4, Axial SCX10, and 1/10 scale truck bodies. Direct-compatible with 7.2V–14.8V LiPo packs.
- Arcade cabinets and pinball: Illuminated pushbuttons (Sanwa/Seimitsu) from JAMMA 12V supply. Also backbox and playfield accent lighting for pinball restorations.
Wiring
Red wire = positive (+). Black wire = negative (−). Reversing the wires will not damage the LED, but it will not light. Factory leads are Approximately 15cm (6 inches) leads with heat-shrink protected joints. For wiring tips, extending leads, and connecting multiple LEDs, see our Pre-Wired LED Voltage Guide.
Which voltage do I need?
Not sure which voltage tier matches your power source? See our complete Pre-Wired LED Voltage Guide — covers automotive, model railroad, USB, Arduino, Christmas village, guitar pedal, and battery-powered projects with a quick-reference table.
Department 56 village accessories use 2.5–3V adapters, which are below the operating range of these pre-wired LEDs.
Complete your project
- Hook-up wire — extend your leads with 24–26 AWG stranded wire, splice with solder + heat shrink
- Switches — toggle, rocker, and mini slide for on/off control
- Power supplies — wall adapters and battery holders for your voltage
- 5mm LED Holders / Bezels — snap-in panel-mount clips
- Heat shrink tubing — protect extended wire joints
Frequently Asked Questions
Sold individually (1 LED per quantity ordered).
More Information
| Size | 5mm Pre-Wired Round Top |
|---|---|
| Color | Warm / Soft White |
| Operating Voltage | 10v-15v (volts) (15v Not Recommended Continuous) |
| Wire Length | Approximately 15cm (6 inches) |
| Resistor Built In | Yes |
| Additional Resistors Required | No |
| Luminosity/Brightness | 13,000-16,000 mcd |
| Forward Voltage | 10v-15v (volts) (15v Not Recommended Continuous) |
| Shrink Wrapped Connections | Yes |
| Current | 20mA |
| Wavelength | N/A Warm White |
| Viewing Angle | 20-30 Degrees |
| Mount Style | Custom |
| Lens Color | Clear |
| LED Brightness Class | Super/Ultra/Extreme |

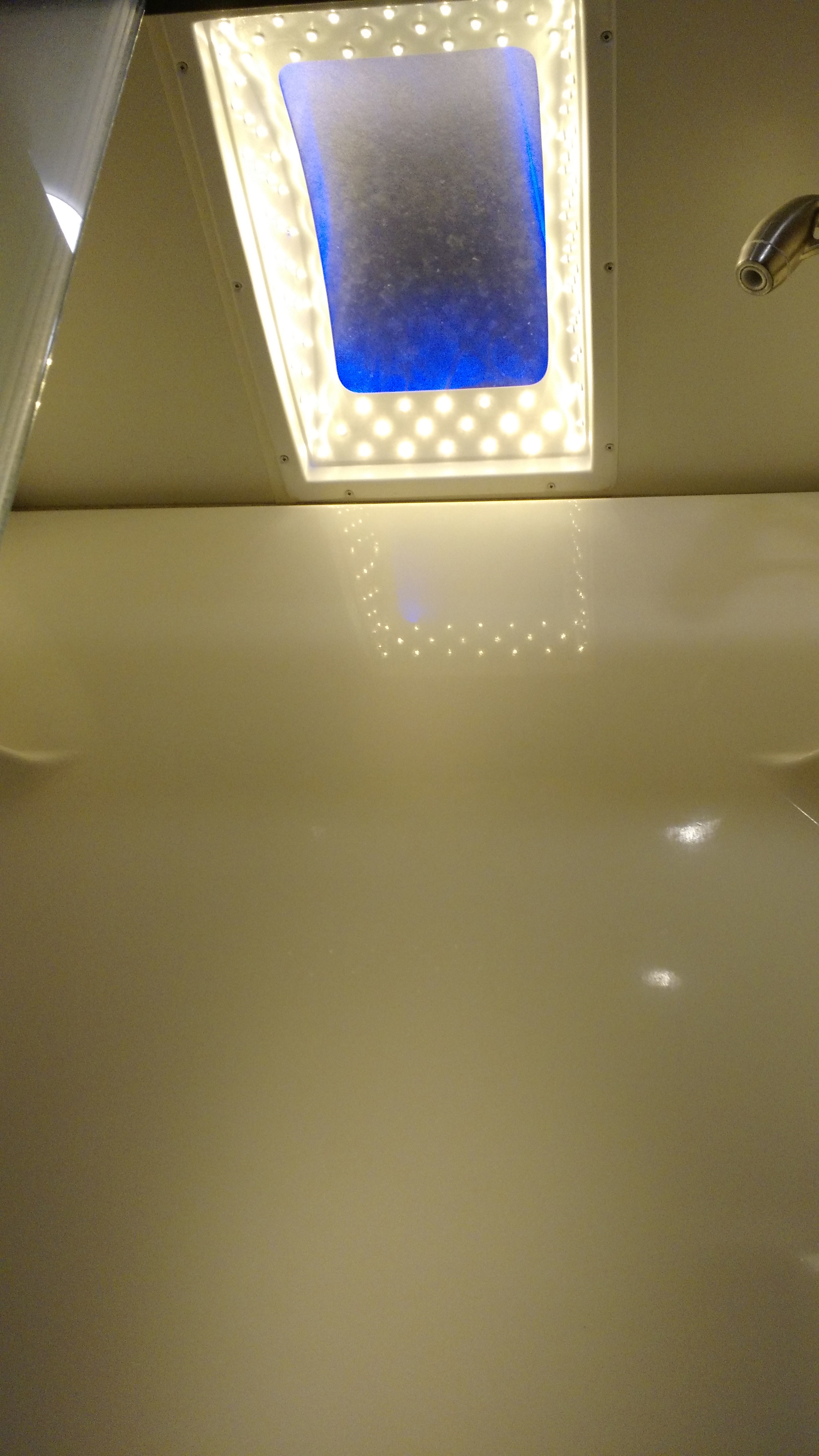

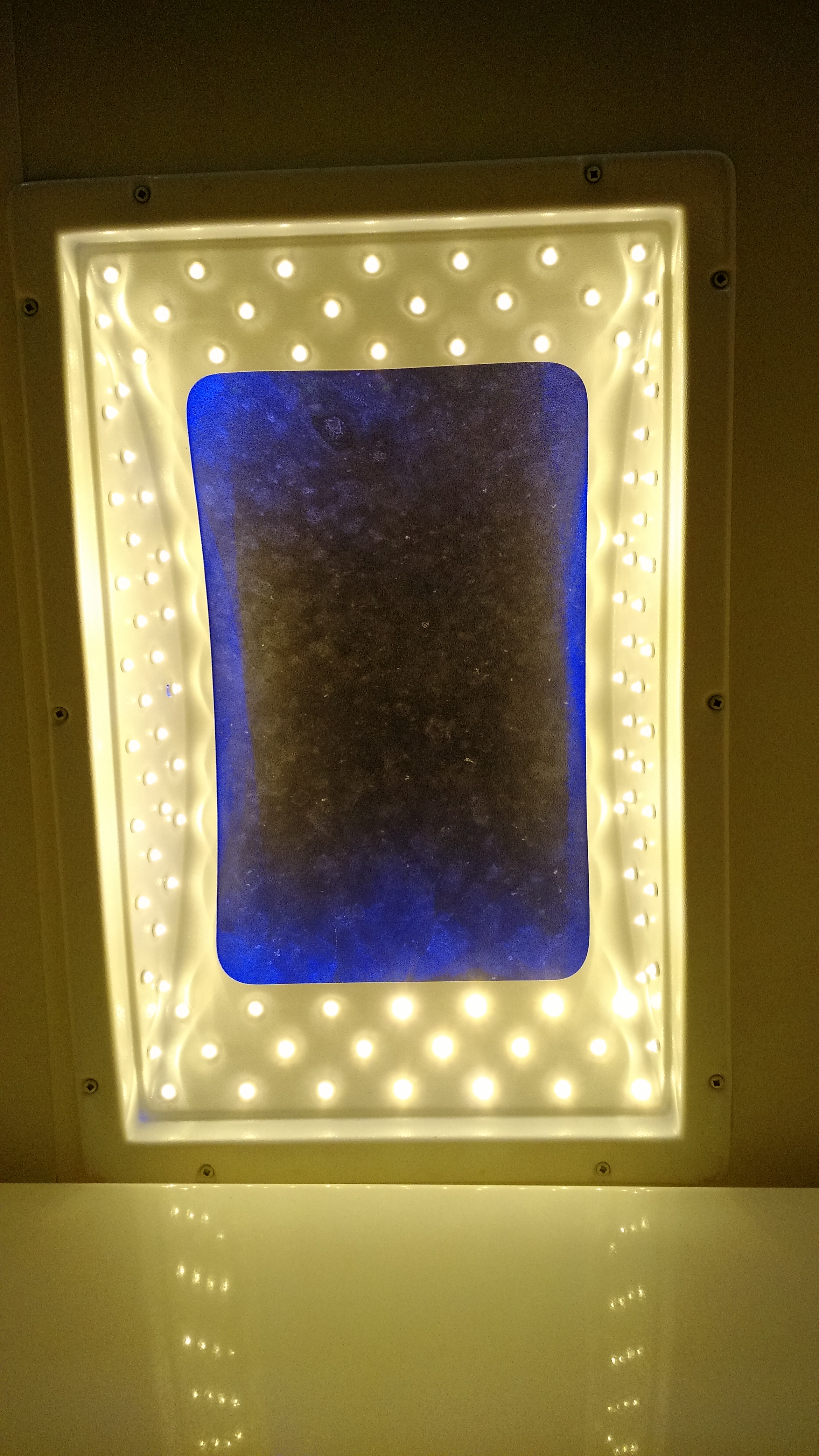

Customer Images
Share your photos of this product in action! Uploaded images require approval before display. Please do not include watermarks — watermarked images will be declined. By uploading, you agree that your images may be used as product photos, in tutorials, or related content. Customer photos may not exactly represent this product. Items shown may be modified, and LED colors may appear different due to the difficulty of capturing true light colors on camera.
