5mm 12v Pre-Wired UV / Purple LED - Ultra Bright (10v, 11v, 12v, 13v, 14v, 15v)
In stock
- SKU
- 12V5MMPREWIREDUVPURPLE
- Color
- UV / Purple
- Size
- 5mm Pre-Wired Round Top
Description / 5mm 12v Pre-Wired UV / Purple LED - Ultra Bright (10v, 11v, 12v, 13v, 14v, 15v)

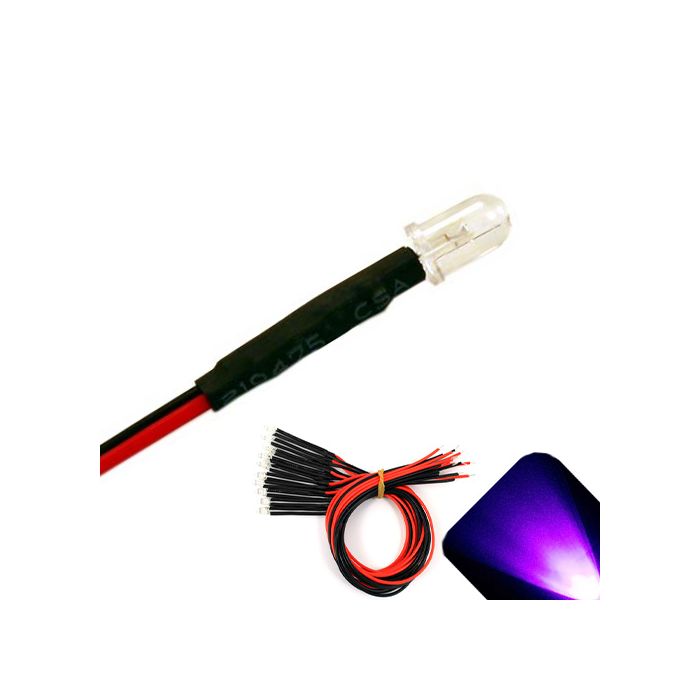

The 5mm 12V Pre-Wired UV Purple LED ships ready to install with Approximately 15cm (6 inches) leads and a built-in current-limiting resistor. Connect directly to model railroad 12V accessory bus, automotive 12V system, RV house battery, marine 12V bus, or 12V DC power supply — no resistor calculation and no extra components needed. A uv purple led for model railroad lighting, automotive projects, and 12v panel indicators.
The 5mm (T-1¾) head is the most popular standard DIP size. Fits all standard 5mm LED holders, bezels, and panel-mount clips. Versatile for model railroad structures, automotive, RC vehicles, and panel indicators.
| Size | 5mm (T-1 3/4) |
| Operating Voltage | 10V – 15V DC (10V, 11V, 12V, 13V, 14V, and 15V) |
| LED Forward Voltage | 10v-15v (volts) (15v Not Recommended Continuous) |
| Drive Current | 20mA typical |
| Brightness | 2,500-3,500mcd |
| Viewing Angle | 20-30 Degrees |
| Wire | Approximately 15cm (6 inches) leads, heat-shrink protected connections |
| Resistor | Built-in — no external resistor needed |
Designed for
- Model railroad layouts: Wire directly to your 12V accessory bus — no resistor math, no external components. 5mm head works at HO (1:87) and O (1:48) scale. DCC and DC layouts alike.
- Automotive and motorcycle: Dashboard indicator relamp, footwell accent, instrument cluster backlight — connects directly to 12V vehicle electrical.
- RV and camper van: Dome light accent, reading light, porch light indicator — runs directly off your 12V house battery with no extra wiring.
- Marine and boat: Panel indicators for bilge pump, battery switch, and blower status. Note: these LEDs are not waterproof — mount in a protected location or inside a sealed enclosure.
- RC crawlers and scale vehicles: Headlights, taillights, and turn signals for Traxxas TRX-4, Axial SCX10, and 1/10 scale truck bodies. Direct-compatible with 7.2V–14.8V LiPo packs.
- Arcade cabinets and pinball: Illuminated pushbuttons (Sanwa/Seimitsu) from JAMMA 12V supply. Also backbox and playfield accent lighting for pinball restorations.
Wiring
Red wire = positive (+). Black wire = negative (−). Reversing the wires will not damage the LED, but it will not light. Factory leads are Approximately 15cm (6 inches) leads with heat-shrink protected joints. For wiring tips, extending leads, and connecting multiple LEDs, see our Pre-Wired LED Voltage Guide.
Which voltage do I need?
Not sure which voltage tier matches your power source? See our complete Pre-Wired LED Voltage Guide — covers automotive, model railroad, USB, Arduino, Christmas village, guitar pedal, and battery-powered projects with a quick-reference table.
Department 56 village accessories use 2.5–3V adapters, which are below the operating range of these pre-wired LEDs.
Complete your project
- Hook-up wire — extend your leads with 24–26 AWG stranded wire, splice with solder + heat shrink
- Switches — toggle, rocker, and mini slide for on/off control
- Power supplies — wall adapters and battery holders for your voltage
- 5mm LED Holders / Bezels — snap-in panel-mount clips
- Heat shrink tubing — protect extended wire joints
Frequently Asked Questions
Sold individually (1 LED per quantity ordered).
More Information
| Size | 5mm Pre-Wired Round Top |
|---|---|
| Color | UV / Purple |
| Operating Voltage | 10v-15v (volts) (15v Not Recommended Continuous) |
| Wire Length | Approximately 15cm (6 inches) |
| Resistor Built In | Yes |
| Additional Resistors Required | No |
| Luminosity/Brightness | 2,500-3,500 mcd |
| Forward Voltage | 10v-15v (volts) (15v Not Recommended Continuous) |
| Shrink Wrapped Connections | Yes |
| Current | 20mA |
| Wavelength | 395-405nm |
| Viewing Angle | 20-30 Degrees |
| Mount Style | Custom |
| Lens Color | Clear |
| LED Brightness Class | Super/Ultra/Extreme |

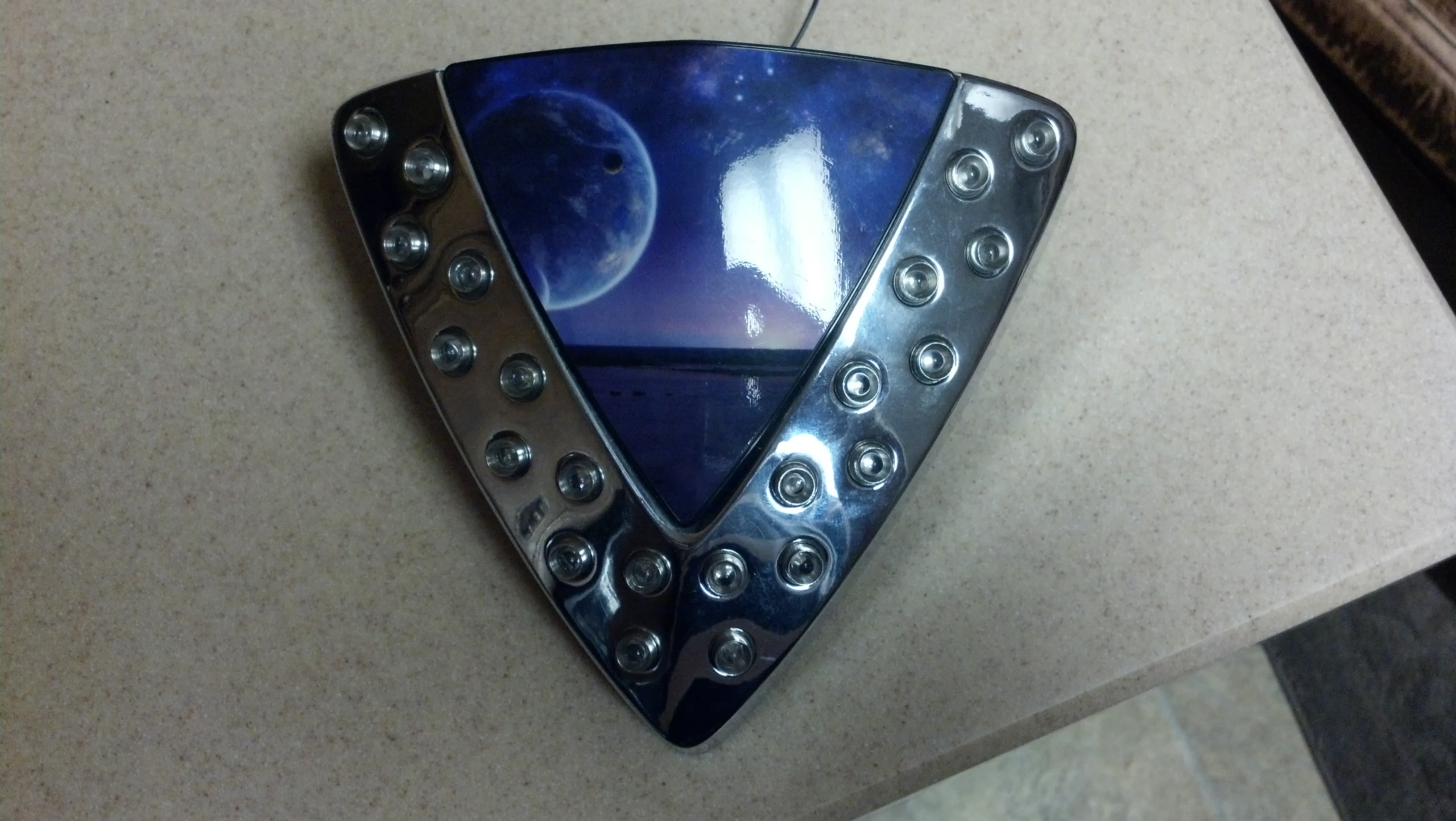

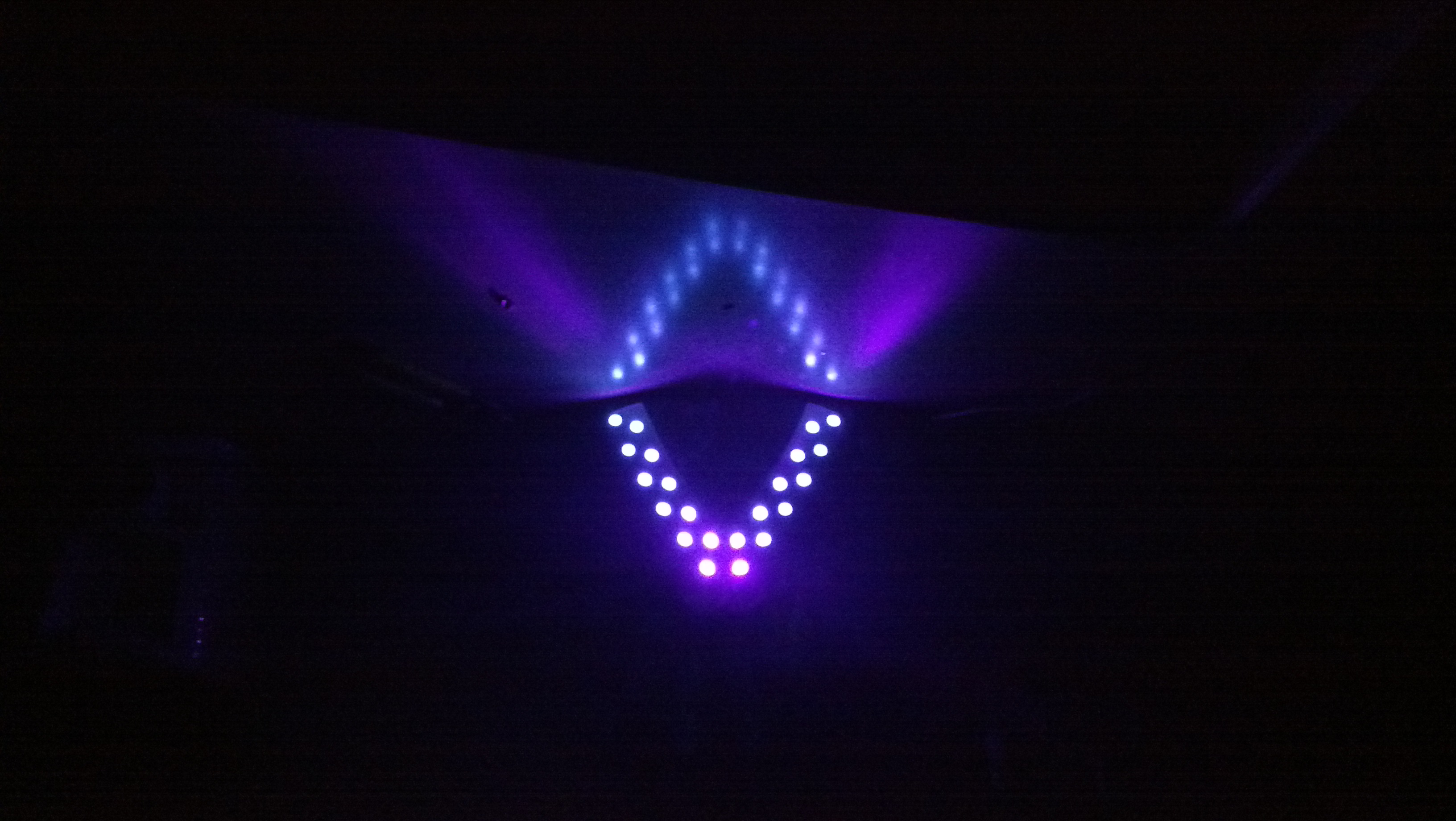

Customer Images
