12v 0807 / 0805 Micro Candle / Flickering SMD Wide Angle Pre-Wired Warm / Soft White LED - Ultra Bright - 5 Pack - (10v, 11v, 12v, 13v, 14v, 15v, 16v, 17v, 18v)

$4.99
In stock
SKU
12V0807FLICKERINGPREWIREDWARMWHITE

The 12v 0807 / 0805 Micro Candle / Flickering smd wide angle warm / soft white pre-wired LED makes it almost the easiest way to add light nearly any project.

Our pre-wired LEDs are nothing but quality. The 12v 0807 / 0805 Micro SMD pre-wired wide angle warm / soft white led puts out a nice color that is sure the illuminate your product or project. Our 12v 0807 / 0805 Micro SMD warm / soft white wide angle pre-wired leds have built in resistors so that they will work with the voltage that they are rated for. There is no need for you to add any additional resistors. The only thing you need to do is add power / ground and they will illuminate. It doesn't get much easier than that.

The 12v warm / soft white 0807 / 0805 Micro SMD pre-wired leds come with a built in resistor, all connections are heat shrinked in order to protect them and there is sufficient wire lead on all of them.

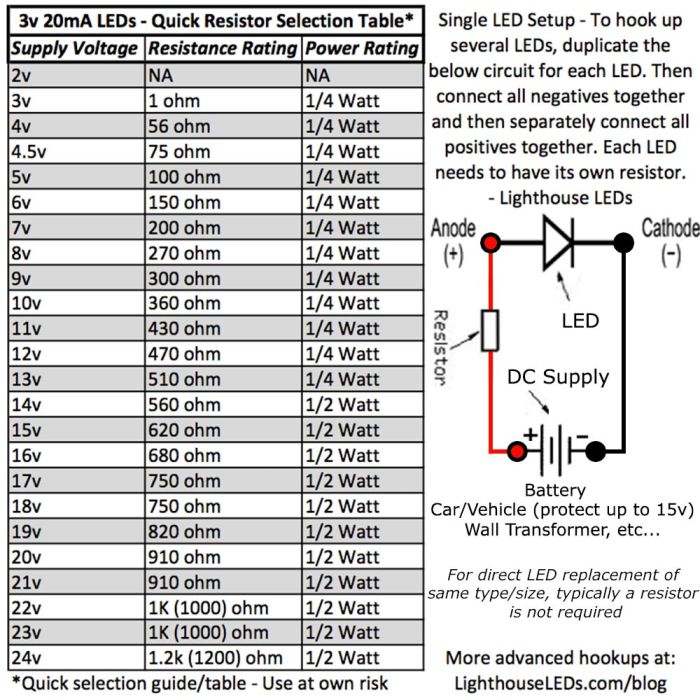

This single setup works well with the following voltages (you don't have to select a voltage when ordering): 9, 10v, 11v, 12v, 13v, 14v, 15v, 16v, 17v, and 18v. While we advertise 9v as the lowest they will work with, they still typically work well at lower voltages. If you want to optimize the light output for any specific voltage and you know what resistor you want then it is very easy to change the resistor because we have added it on to the end in this particular 0807 / 0805 Micro pre-wired led design. We have done it this way because the LED is obviously meant to be used in small or confined spaces and we don't want the resistor to get in the way. You can also ask us for suggestions on resistor selection for lower voltages or refer to our resistor charts on the specific LED product pages that will help with the optimal resistor to use with lower voltages.

These are provided in packs of 5. We typically do not believe in selling in preset packs, but in the case of the pre-wired LEDs it is best for us to package them this way for handling and ultimately it protects them during shipment.

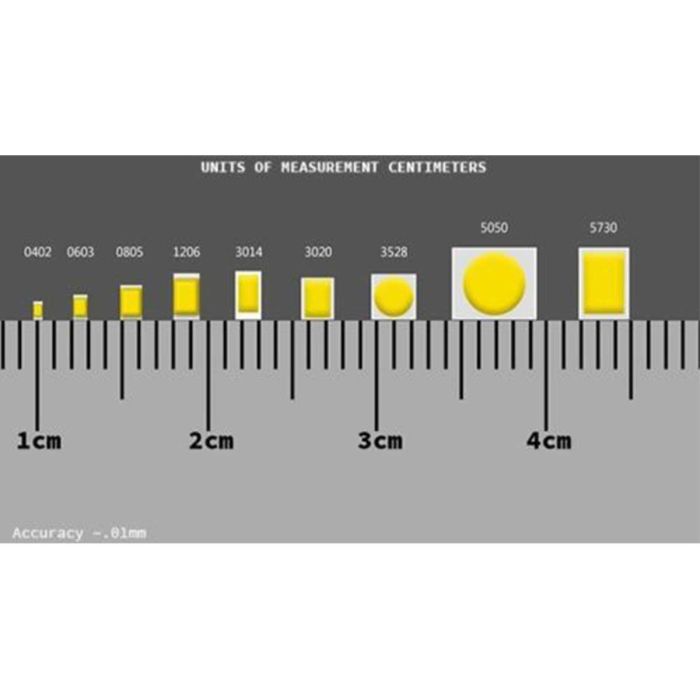

The 0805 / 0807 is close in size to the 0603 nano, but is a little wider to accommodate the IC that makes it flicker like a candle. The LED will begin to flicker like a flame as soon as you apply power to it. If you hook up more than one in parallel they will not flicker in sync. They may start off that way, but will quickly get out of sync. The warm / soft white color 0807 LED is a vibrant color that you can't go wrong with.

More Information

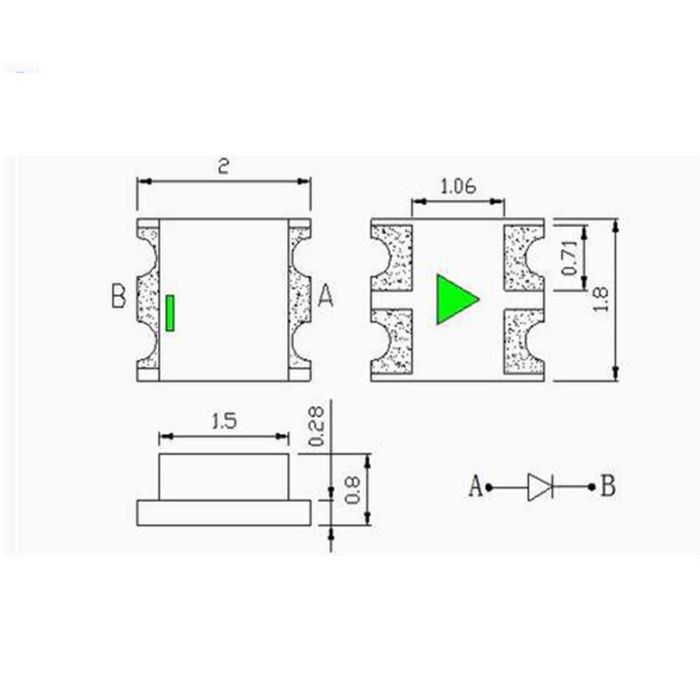

Size0807 / 0805 Pre-Wired SMD LED
ColorWarm / Soft White
Animation TypeFlickering / Candle / Flame
Operating Voltage9v-18v (Volts)
Wire LengthApproximately 15cm (6 inches)
Resistor Built InYes
Additional Resistors RequiredNo
Luminosity/Brightness550 mcd
Forward Voltage9v-18v (volts)
Shrink Wrapped ConnectionsYes
Current20mA
WavelengthN/A Warm White
Viewing Angle105-120 Degrees
Mount StyleCustom
Lens ColorClear
LED Brightness ClassSuper/Ultra/Extreme
