12v 0807 / 0805 Micro Candle / Flickering SMD Wide Angle Pre-Wired Red LED - Ultra Bright - 5 Pack - (10v, 11v, 12v, 13v, 14v, 15v, 16v, 17v, 18v)
Description / 12v 0807 / 0805 Micro Candle / Flickering SMD Wide Angle Pre-Wired Red LED - Ultra Bright - 5 Pack - (10v, 11v, 12v, 13v, 14v, 15v, 16v, 17v, 18v)

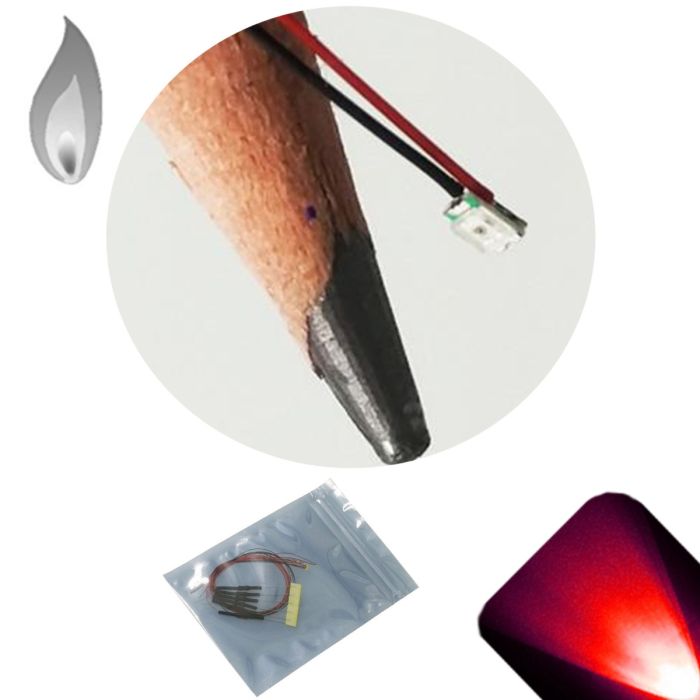

The 0805 Micro 12V Pre-Wired Red SMD LED comes ready to install — Approximately 15cm (6 inches) leads, built-in current-limiting resistor, 0805 SMD package. Connect directly to 12V DC with no resistor math or extra components.
Self-blinking: blinks automatically at ~1Hz — no oscillator or controller needed. Same wiring as a static pre-wired LED.
| Size | 0805 Micro |
| Operating Voltage | 9v-18v (Volts) |
| LED Forward Voltage | 9v-18v (volts) |
| Brightness | 325mcd |
| Wire Length | Approximately 15cm (6 inches) |
| Color | Red |
| Resistor | Built-in — no external resistor needed |
Designed for:
- model railroad (HO/N/Z scale), LEGO lighting, dollhouse miniatures, and diorama builds
- power indicator
- Fits all standard 0805 LED holders, panel bezels, and dashboard clips
- Polarity: red wire = positive (+), black wire = negative (−)
Sold in packs of 5 individual pre-wired SMD LEDs. Each quantity = 1 pack of 5 LEDs. For example, ordering a quantity of 3 gives you 3 packs (15 LEDs total).
More Information
| Size | 0807 / 0805 Pre-Wired SMD LED |
|---|---|
| Color | Red |
| Animation Type | Flickering / Candle / Flame |
| Operating Voltage | 9v-18v (Volts) |
| Wire Length | Approximately 15cm (6 inches) |
| Resistor Built In | Yes |
| Additional Resistors Required | No |
| Luminosity/Brightness | 325 mcd |
| Forward Voltage | 9v-18v (volts) |
| Shrink Wrapped Connections | Yes |
| Current | 20mA |
| Wavelength | 620-630nm |
| Viewing Angle | 105-120 Degrees |
| Mount Style | Custom |
| Lens Color | Clear |
| LED Brightness Class | Super/Ultra/Extreme |
