0603 SMD Pink - Ultra Bright LED
In stock
- SKU
- 0603SMDPINK
- Color
- Pink
- Size
- 0603 SMD
- Buy 50 for $0.38 each and save 5%
- Buy 100 for $0.36 each and save 10%
- Buy 250 for $0.34 each and save 15%
- Buy 500 for $0.32 each and save 20%
- Buy 1000 for $0.30 each and save 25%
Description / 0603 SMD Pink - Ultra Bright LED

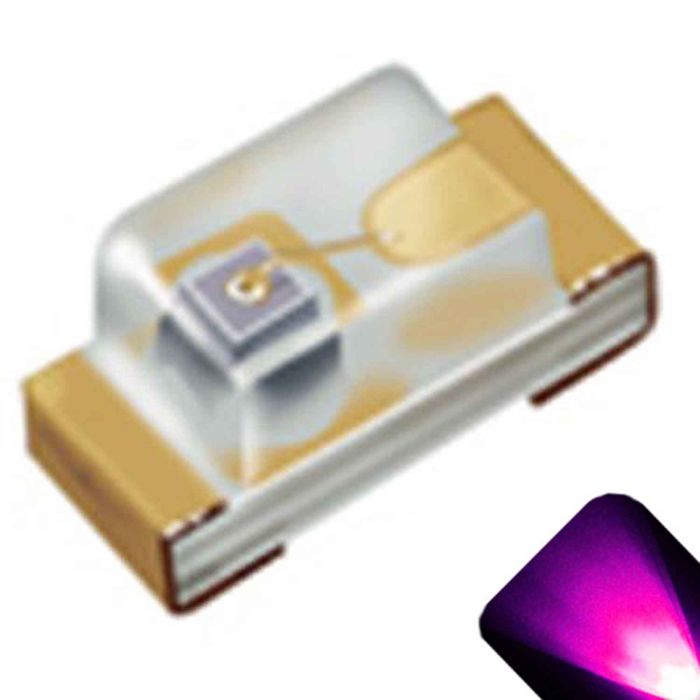

The 0603 Pink SMD LED (1.6 × 0.8mm, metric 1608) is the most widely used SMD indicator size in both hobbyist and production PCB work — small enough for tight layouts, large enough to hand-solder reliably with flux and a fine-tip iron. Pink accent color for decorative indicators and cosplay prop electronics.
| Package | 0603 (1608 metric) — SMD surface mount |
| Forward Voltage | 3.0-3.2v |
| Brightness | 200mcd |
| Viewing Angle | 120 Degrees |
| Lens | Diffused |
| Drive Current | 20mA typical |
Hand-solderable with a fine-tip iron and flux paste. Easier than 0402, still small enough for tight decoder and PCB layouts.
Common uses:

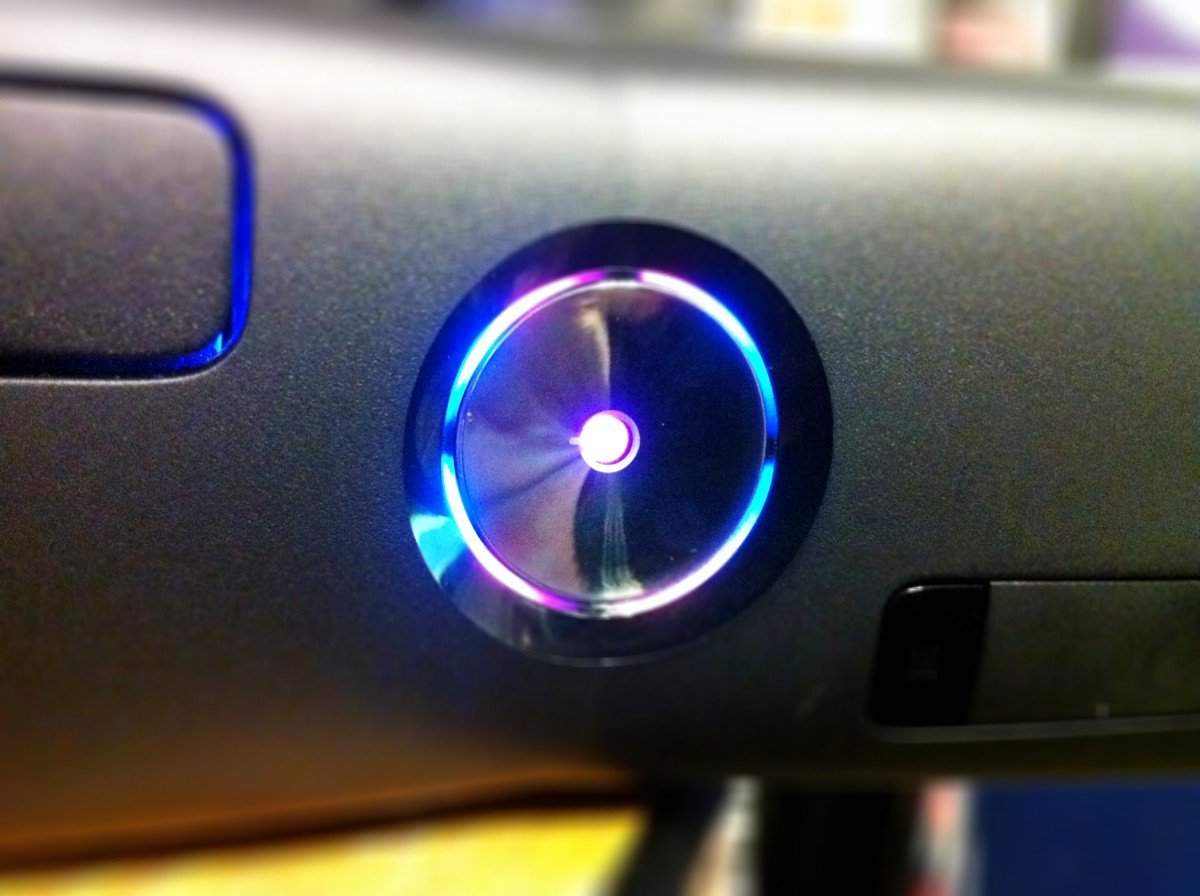

- Gaming console repair — Xbox 360/One, PS3/PS4, Wii, and Game Boy indicator LED replacement (iFixit community)
- Guitar pedal builds — Boss 2017+ models and modern stompbox PCBs use 0603 indicator LEDs (Freestompboxes, PedalPCB)
- Mechanical keyboard backlight repair — per-key indicator LEDs on custom PCBs (r/MechanicalKeyboards, Geekhack)
- N scale and HO scale DCC decoder lighting — headlights, interior lights, and function outputs
- Custom PCB indicators for ESP32/RP2040 projects, breakout boards, and open-source hardware designs
Also available: 0402 (smaller) · 0805 (larger)
Sold individually (1 LED per quantity ordered).
More Information
| Size | 0603 SMD |
|---|---|
| Color | Pink |
| Luminosity/Brightness | 200 mcd |
| Forward Voltage | 3.0-3.2v |
| Current | 20mA |
| Wavelength | N/A |
| Viewing Angle | 120 Degrees |
| Mount Style | SMD (Surface Mount Diode) |
| Lens Color | Diffused |
| LED Brightness Class | Super/Ultra/Extreme |
| Documentation Link | Documentation: 0603 / 1608 Pink SMD LED Datasheet / Specifications |
