PLCC-4 SMD Blue - Ultra Bright 1210 / 3528 LED
In stock
- SKU
- PLCC4SMDBLUE
- Color
- Blue
- Size
- PLCC4 / 3528 / 1210 LED
- Buy 50 for $0.23 each and save 4%
- Buy 100 for $0.22 each and save 8%
- Buy 250 for $0.20 each and save 17%
- Buy 500 for $0.19 each and save 21%
- Buy 1000 for $0.18 each and save 25%
Description / PLCC-4 SMD Blue - Ultra Bright 1210 / 3528 LED

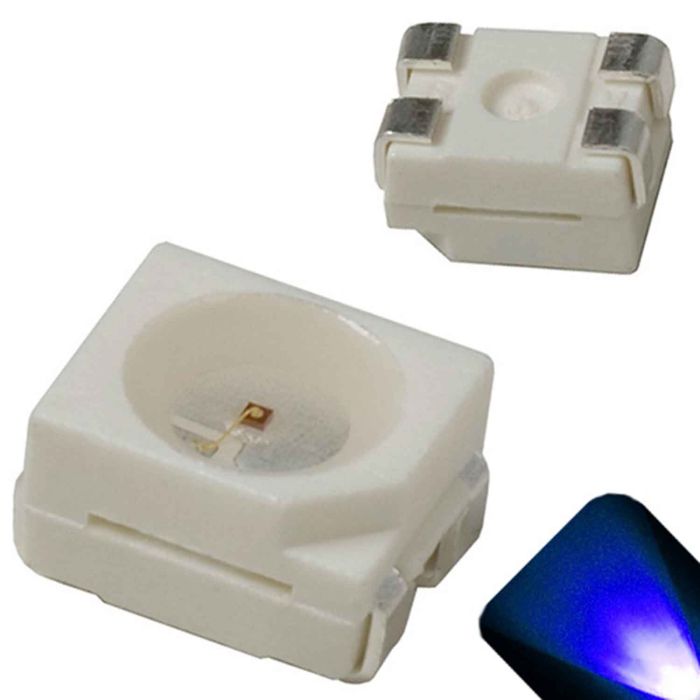

The PLCC-4 (3528) Blue SMD LED packs three LED chips into the same 3.5 × 2.8mm footprint as the PLCC-2 — significantly more output from the same board space. Four solder pads (vs two on PLCC-2) connect the three chips independently. Blue is the most commonly replaced SMD indicator color in consumer electronics — TVs, audio equipment, and appliances all use it.
| Package | PLCC-4 (3528) — 3 chips, SMD surface mount |
| Forward Voltage | 3.0-3.6v |
| Brightness | 1000mcd |
| Viewing Angle | 120 Degrees |
| Lens | Clear |
| Drive Current | 20mA typical |

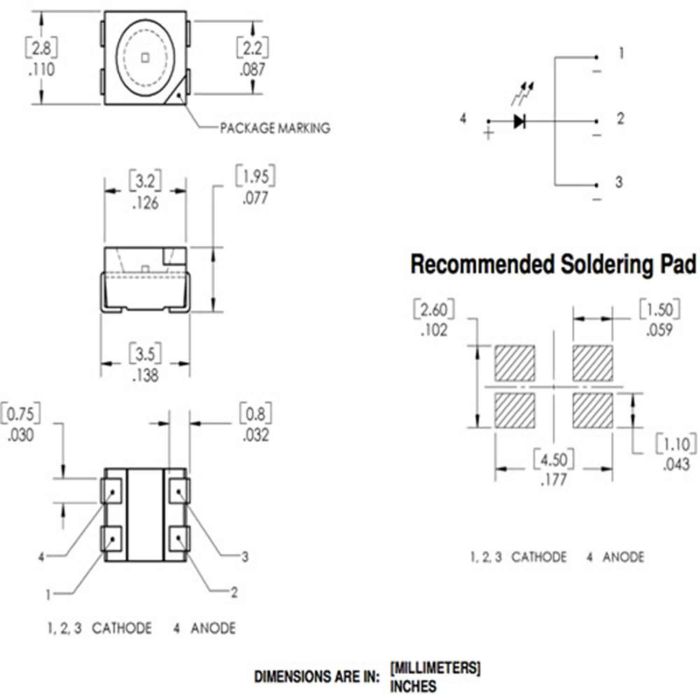

PLCC-4 vs PLCC-2: Same body size (3.5 × 2.8mm) but PLCC-4 has four pads and three internal chips vs two pads and one chip. PLCC-4 is brighter but not always a direct drop-in for PLCC-2 pads — verify your PCB footprint has four pads before ordering.
Common uses:
- Instrument cluster and HVAC backlighting upgrade — drop into PLCC-2 pads for a brightness boost (check pad compatibility — 4 pads vs 2)
- Mechanical keyboard RGB underglow and per-key backlighting — some custom keyboard PCBs specify PLCC-4 for higher output
- Aquarium and reef lighting arrays — higher output per chip for DIY fixture builds
- Automotive accent lighting PCBs where maximum brightness per footprint matters
Sold individually (1 LED per quantity ordered).
More Information
| Size | PLCC4 / 3528 / 1210 LED |
|---|---|
| Color | Blue |
| Luminosity/Brightness | 1000 mcd |
| Forward Voltage | 3.0-3.6v |
| Current | 20mA each Chip/Diode - 3 Chips/Diodes |
| Wavelength | 468-470 nm |
| Viewing Angle | 120 Degrees |
| Mount Style | SMD (Surface Mount Diode) |
| Lens Color | Clear |
| LED Brightness Class | Super/Ultra/Extreme |
| Documentation Link | Documentation: PLCC-4 / 3528 Blue SMD LED Datasheet / Specifications |
