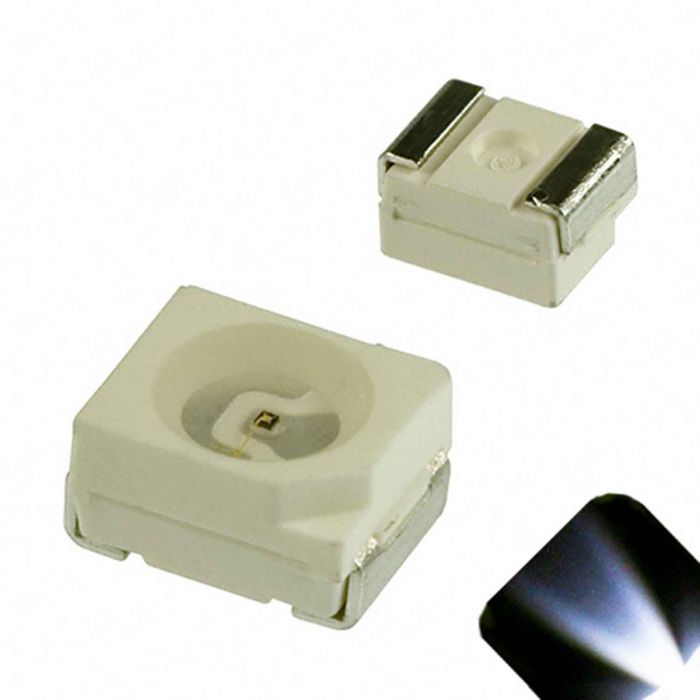

PLCC-2 SMD Cool / Clear White - Ultra Bright 1210 / 3528 LED
In stock
- SKU
- PLCC2SMDCOOLWHITE
- Color
- Cool / Clear White
- Size
- PLCC2/3528 - 1210 LED
- Buy 50 for $0.23 each and save 4%
- Buy 100 for $0.22 each and save 8%
- Buy 250 for $0.20 each and save 17%
- Buy 500 for $0.19 each and save 21%
- Buy 1000 for $0.18 each and save 25%
Description / PLCC-2 SMD Cool / Clear White - Ultra Bright 1210 / 3528 LED
The 3528 (PLCC-2) Cool White SMD LED is the standard footprint for automotive instrument cluster backlighting, HVAC control panels, and T10/194 wedge bulb replacement boards. If you’re relighting a car dashboard, this is almost certainly the LED you need.
| Package | 3528 — SMD surface mount |
| Forward Voltage | 3.0-3.2v |
| Brightness | 2300mcd |
| Viewing Angle | 120 Degrees |
| Lens | Diffused |
| Drive Current | 20mA typical |
Also known as: PLCC-2, 1210, 3528. All three names refer to the same 3.5 × 2.8mm two-pad package. If your vehicle cluster or repair guide specifies any of these, this is the correct LED.
Common uses:

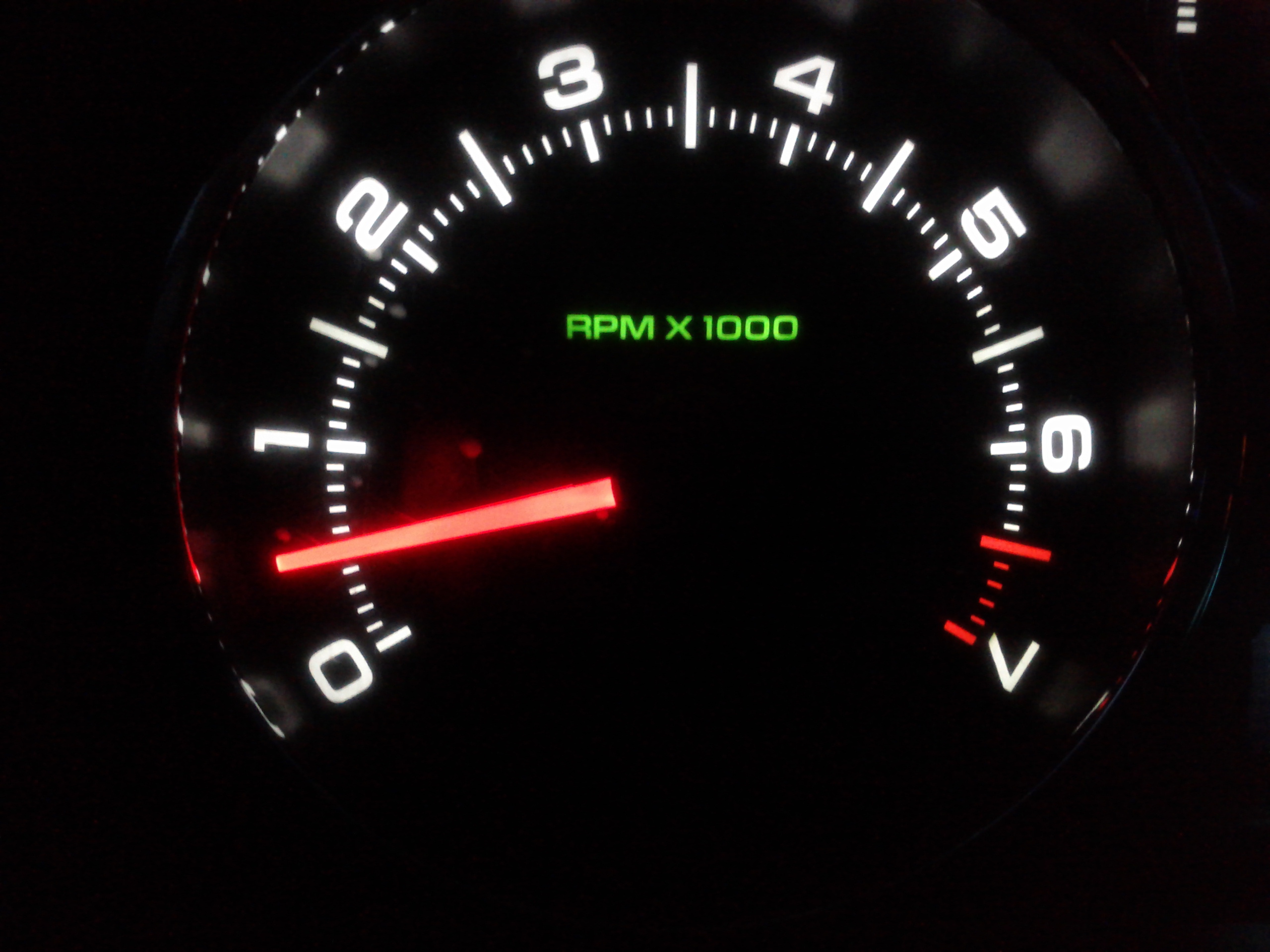

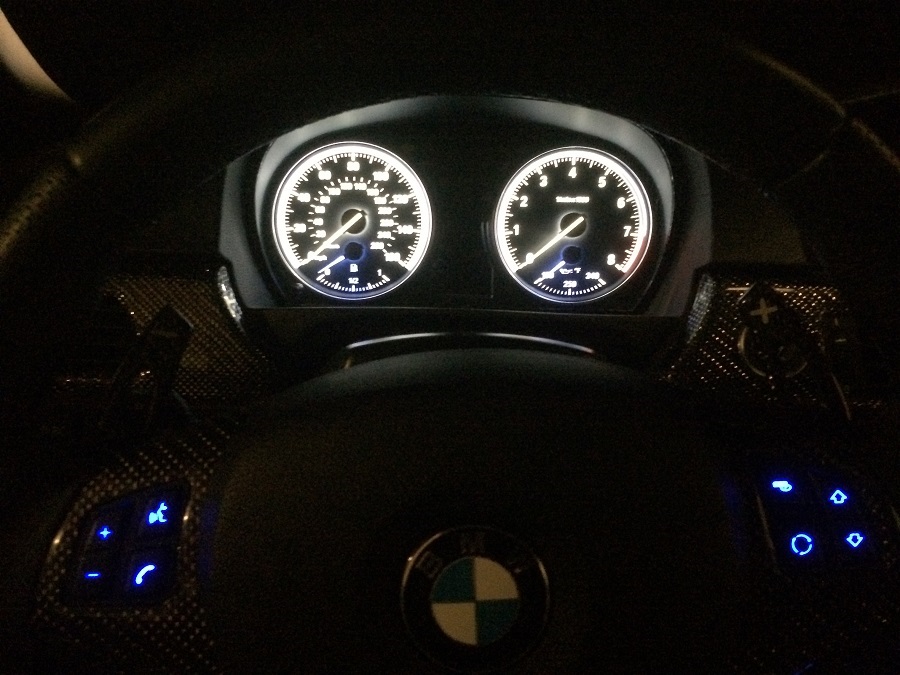

- Automotive instrument cluster backlighting — the #1 use case. Drop-in for GM Silverado/Sierra/Tahoe, Honda Civic/Accord, Toyota Camry/Tacoma, Nissan, Dodge, Mazda, and most pre-2015 vehicles. GMTruck Club, Honda-Tech, and DIYMobileAudio forums document specific cluster LED replacements by vehicle

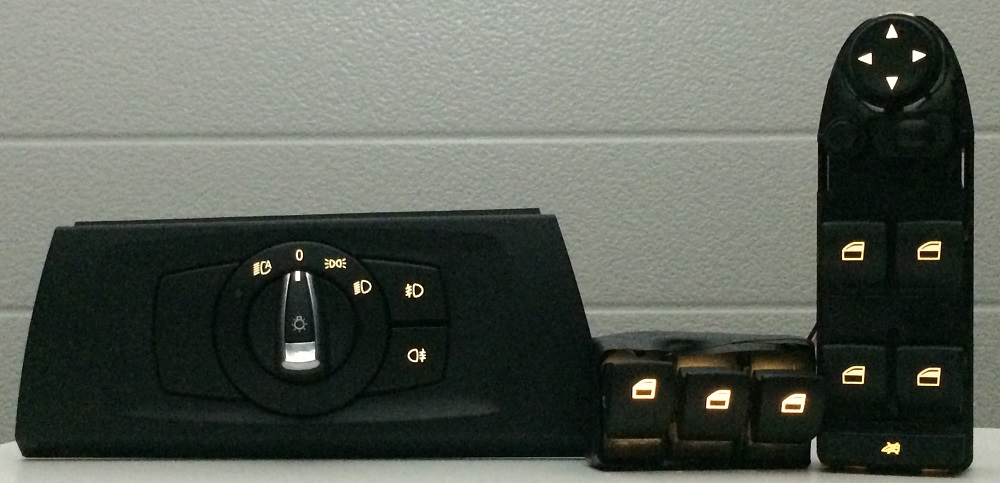

- HVAC and climate control panel backlighting — same LED size behind the A/C, heat, and fan speed buttons. Often fails alongside cluster LEDs
- Car stereo and head unit backlighting — Pioneer, Kenwood, Alpine, and Clarion aftermarket head units use PLCC-2 for button and display backlighting
- T10 / 194 wedge bulb replacement boards — build custom LED wedge replacements with 3–6 PLCC-2 LEDs on a small PCB
- TV and monitor backlight repair — some LCD panel edge-lit backlights use 3528 LEDs (ShopJimmy, YouTube repair community)
Sold individually (1 LED per quantity ordered).
More Information
| Size | PLCC2/3528 - 1210 LED |
|---|---|
| Color | Cool / Clear White |
| Luminosity/Brightness | 2300 mcd |
| Forward Voltage | 3.0-3.2v |
| Current | 20mA |
| Wavelength | N/A |
| Viewing Angle | 120 Degrees |
| Mount Style | SMD (Surface Mount Diode) |
| Lens Color | Diffused |
| LED Brightness Class | Super/Ultra/Extreme |
| Documentation Link | Documentation: PLCC-2 SMD Cool / Clear White - Ultra Bright 1210 / 3528 LED Datasheet / Specifications |
