5mm Round Top Red LED - Ultra Bright
In stock
- SKU
- 5MMROUNDTOPRED
- Color
- Red
- Size
- 5mm Round Top Clear
- Buy 50 for $0.17 each and save 6%
- Buy 100 for $0.16 each and save 11%
- Buy 250 for $0.15 each and save 17%
- Buy 500 for $0.14 each and save 22%
- Buy 1000 for $0.13 each and save 28%
Description / 5mm Round Top Red LED - Ultra Bright
The 5mm Red LED (Round Top, Clear) is the standard through-hole LED for power-on indicators, brake/tail light accents, model railroad stop signals, alarm and fault LEDs. Clear lens with a focused 20-30 Degrees beam — bright and directional, the classic DIP LED that fits every breadboard, panel bezel, and holder on the market.
The 5mm (T-1¾) is the most popular LED size in the world — the standard for breadboard prototyping, hobby projects, panel indicators, and every electronics starter kit. Fits all 5mm holders and bezels.
| Size | 5mm (T-1 3/4) |
| Forward Voltage | 1.9-2.1v |
| Brightness | 11,000-13,000mcd |
| Viewing Angle | 20-30 Degrees |
| Lens | Clear — focused beam |
| Package | T-1 3/4 through-hole DIP |
| Drive Current | 20mA typical |
Common applications
- Power-on and status indicators: The universal "on" signal. Breadboard prototyping, enclosure builds, equipment panels.
- Model railroad signals: Block signal stop aspect, grade crossing heads, yard limit indicators. Clear lens for focused, directional signal visibility.
- Automotive accent: Brake indicator, taillight accent, dashboard warning LED relamp. 12V with appropriate resistor.
- Christmas light replacement: Replace burnt-out C7/C9 string light bulbs with LEDs — cooler running, longer lasting.
- Guitar pedal indicator: Red is the standard "effect active" color across all DIY stompbox communities.

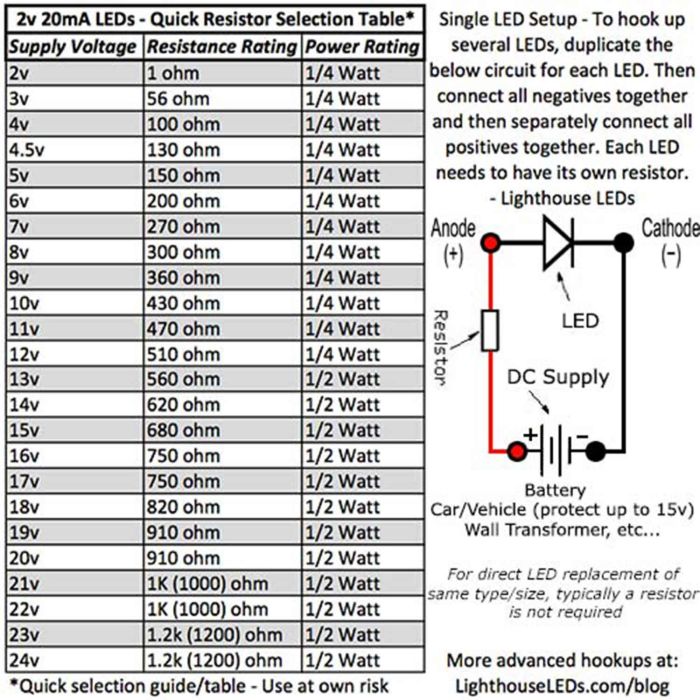

Standard T-1 3/4 through-hole footprint. Fits all 5mm LED holders, bezels, and panel-mount clips. Add a current-limiting resistor matched to your supply voltage — see our LED Resistor Calculator for the exact value.
Need a wider beam? See our 5mm Diffused Round Top LEDs (soft glow, no hotspot) or 5mm Straw Hat LEDs (120–140° wide angle).
Frequently Asked Questions
Also available: 3mm (smaller) · 8mm (larger)
Sold individually (1 LED per quantity ordered).
More Information
| Size | 5mm Round Top Clear |
|---|---|
| Color | Red |
| Luminosity/Brightness | 11,000-13,000 mcd |
| Forward Voltage | 1.9-2.1v |
| Current | 20mA |
| Wavelength | 620-630nm |
| Viewing Angle | 20-30 Degrees |
| Mount Style | Through Hole (DIP) |
| Lens Color | Clear |
| LED Brightness Class | Super/Ultra/Extreme |
| Documentation Link | Documentation: 5mm Round Top Red LED - Ultra Bright Datasheet / Specifications |
