3mm 12v Pre-Wired Yellow / Gold LED - Ultra Bright (10v, 11v, 12v, 13v, 14v, 15v)

Rating:
100% of 100
$0.48
In stock
SKU
12V3MMPREWIREDYELLOW

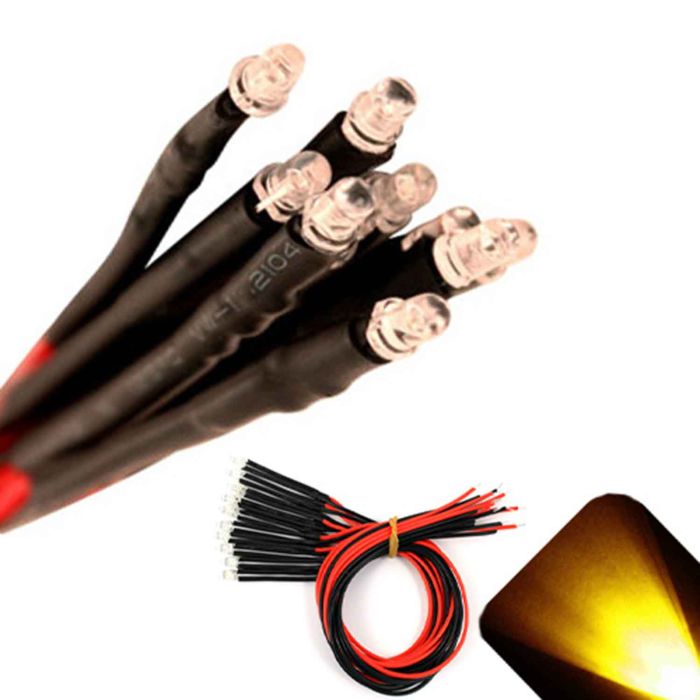

The 12v 3mm yellow / gold pre-wired LED makes it almost the easiest way to add light nearly any project.

Our pre-wired LEDs are nothing but quality. The 12v 3mm yellow / gold led puts out a nice color that is sure the illuminate your product or project. Our 3mm pre-wired leds have built in resistors so that they will work with the voltage that they are rated for. There is no need for you to add any additional resistors. The only thing you need to do is add power / ground and they will illuminate. It doesn't get much easier than that.

The 3mm pre-wired leds come with a built in resistor, all connections are heat shrinked in order to protect them and there is sufficient wire lead on all of them.

This single setup works well with the following voltages (you don't have to select a voltage when ordering): 10v, 11v, 12v, 13v, 14v and 15v. We recommend that you don't continuously run them at 15 volts, but they will take spikes as high as that without any issues at all. If you are looking for a lower voltage setup then take a look at our 9v or 6v setups that will cover the remainder of voltage ranges below 10v.

More Information
Size3mm Pre-Wired Round Top
ColorYellow/Gold
Operating Voltage10v-15v (volts) (15v Not Recommended Continuous)
Wire LengthApproximately 15cm (6 inches)
Resistor Built InYes
Additional Resistors RequiredNo
Luminosity/Brightness8,000-10,000 mcd
Forward Voltage10v-15v (volts) (15v Not Recommended Continuous)
Shrink Wrapped ConnectionsYes
Current20mA
Wavelength590-595nm
Viewing Angle20-30 Degrees
Mount StyleCustom
Lens ColorClear
LED Brightness ClassSuper/Ultra/Extreme
