2x5x7mm Rectangle Wide Angle Cool / Clear White LED
In stock
- SKU
- 2X5MMRECTANGLELEDCOOLWHITE
- Color
- Cool / Clear White
- Size
- 2x5x7mm Rectangle LED
- Buy 50 for $0.20 each and save 5%
- Buy 100 for $0.19 each and save 10%
- Buy 250 for $0.18 each and save 14%
- Buy 500 for $0.17 each and save 19%
- Buy 1000 for $0.16 each and save 24%
Description / 2x5x7mm Rectangle Wide Angle Cool / Clear White LED
The 2x5x7mm Rectangular Cool White LED is the standard replacement indicator for vintage audio receivers, ham radio equipment, and industrial control panels. The flat rectangular face sits flush behind panel cutouts and aligns perfectly with printed labels — a round LED in a rectangular indicator window looks wrong. This is the correct form factor.
Cool White is a modern cool white option for equipment where a clean, bright indicator is preferred over period-accurate warm colors.
| Size | 2x5x7mm Rectangle |
| Forward Voltage | 3.2-3.4v |
| Brightness | 9,000-12,000mcd |
| Viewing Angle | 105-115 Degrees |
| Lens | Clear |
| Package | 2-pin through-hole DIP, 0.1" (2.54mm) lead spacing |
| Drive Current | 20mA typical |
Primary applications
- Vintage audio/stereo restoration: Drop-in replacement for burnt-out indicators in Marantz (2270, 2245, 2230, 2275, 2325), Pioneer (SX-1250, SX-950, SX-750, SX-650), Sansui (G-9000, G-8000, AU-717), Kenwood (KR-9600, KR-7600), Yamaha (CR-1020, CR-820), Technics, Harman Kardon, and Realistic receivers. The 2x5x7mm rectangle is THE LED size for silver-face era hi-fi restoration. AudioKarma and HiFi Engine forums specify this exact form factor.
- Ham radio equipment: Indicator replacement for Kenwood TS-830S/TS-530S, Yaesu FT-101/FT-757, Icom IC-751/IC-745, Drake TR-7/R-7, and Collins transceivers. Mode indicators, VFO selection, and S-meter elements. QRZ.com and eHam.net communities source these LEDs regularly.
- Vintage computing: Power and drive activity LEDs on Apple II/IIe, Commodore 64/1541, IBM PC 5150/5160, and DEC VT terminals. Also modem status indicators (Hayes Smartmodem era).
- Test equipment: Front panel indicators on HP/Agilent signal generators, Tektronix oscilloscopes (2465, 2467), Fluke bench multimeters (8050A, 8060A), and Keithley instruments.
- Guitar amps and rack gear: Channel indicators on Marshall JCM800/JCM900, Mesa/Boogie Rectifier series, Peavey 5150/6505, and Fender. Also rack effects (Lexicon, TC Electronic, Eventide).
- Industrial control panels: Status indicators in PLC panels, relay logic boards, CNC machine controls, elevator panels, and HVAC annunciator boards. The flat face sits flush with panel labels.
Restorer’s note: When replacing LEDs in vintage audio equipment, check the original circuit’s current-limiting resistor value. Most receivers from the 1970s–80s were designed for 10–20mA indicator LEDs with resistors already on the board. If the original LED was incandescent, you may need to add or change the resistor.
Frequently Asked Questions
Sold individually (1 LED per quantity ordered).
More Information
| Size | 2x5x7mm Rectangle LED |
|---|---|
| Color | Cool / Clear White |
| Luminosity/Brightness | 9,000-12,000 mcd |
| Forward Voltage | 3.2-3.4v |
| Current | 20mA |
| Wavelength | N/A |
| Viewing Angle | 105-115 Degrees |
| Mount Style | Through Hole (DIP) |
| Lens Color | Clear |
| LED Brightness Class | Super/Ultra/Extreme |

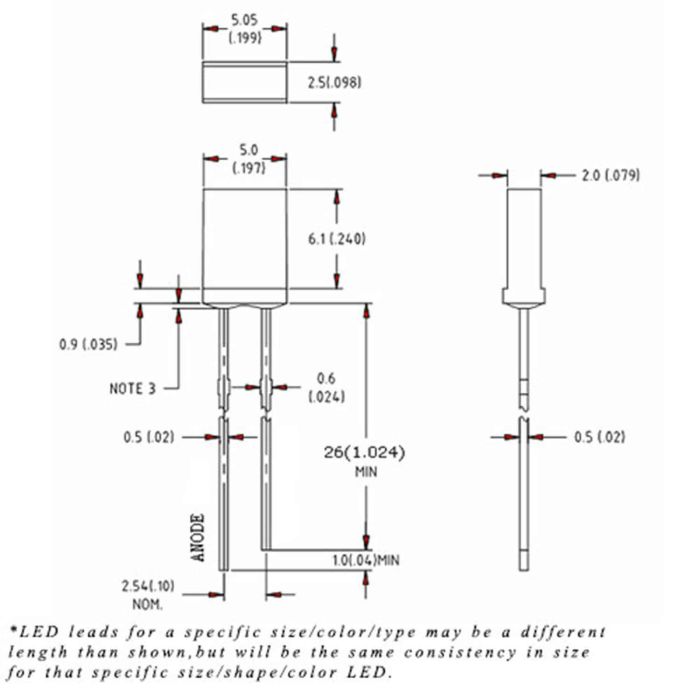

| Documentation Link | Documentation: 5mm Rectangle Cool / Clear White LED Datasheet / Specifications |
