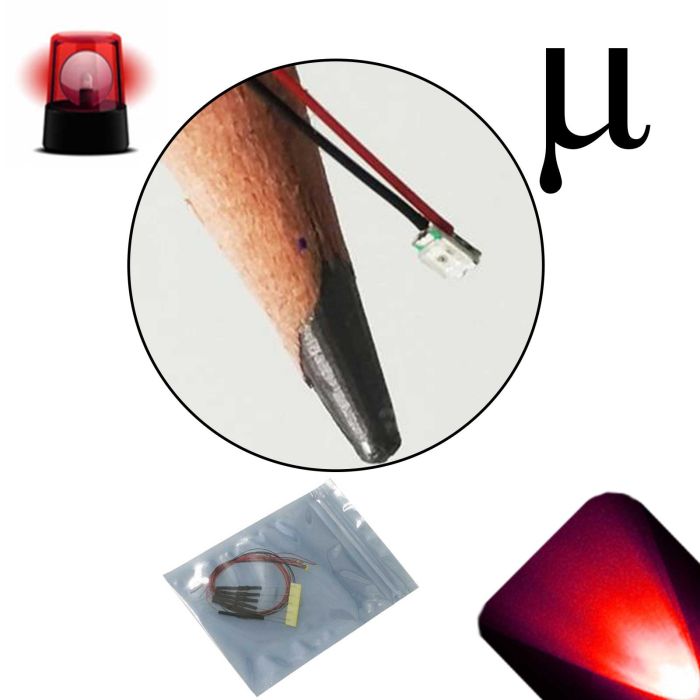

12v 0807 / 0805 Micro 1.5Hz Flashing SMD Wide Angle Pre-Wired Red LED - Ultra Bright - 5 Pack - (10v, 11v, 12v, 13v, 14v, 15v, 16v, 17v, 18v)
The 12v 0807 / 0805 Micro 1.5Hz Flashing smd wide angle red pre-wired LED makes it almost the easiest way to add light nearly any project.
Our pre-wired LEDs are nothing but quality. The 12v 0807 / 0805 Micro SMD pre-wired wide angle red led puts out a nice color that is sure the illuminate your product or project. Our 12v 0807 / 0805 Micro SMD red wide angle pre-wired leds have built in resistors so that they will work with the voltage that they are rated for. There is no need for you to add any additional resistors. The only thing you need to do is add power / ground and they will illuminate. It doesn't get much easier than that.
The 12v red 0807 / 0805 Micro SMD pre-wired leds come with a built in resistor, all connections are heat shrinked in order to protect them and there is sufficient wire lead on all of them.

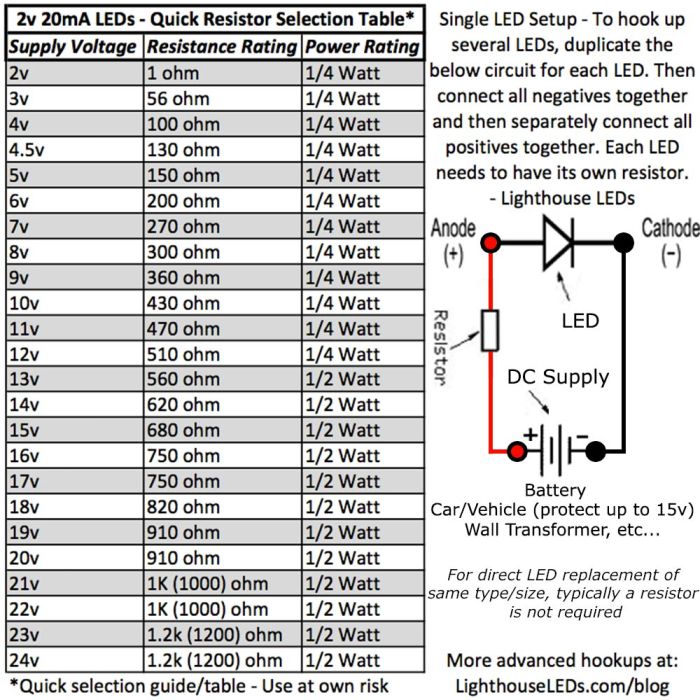

This single setup works well with the following voltages (you don't have to select a voltage when ordering): 9, 10v, 11v, 12v, 13v, 14v, 15v, 16v, 17v, and 18v. While we advertise 9v as the lowest they will work with, they still typically work well at lower voltages. If you want to optimize the light output for any specific voltage and you know what resistor you want then it is very easy to change the resistor because we have added it on to the end in this particular 0807 / 0805 Micro pre-wired led design. We have done it this way because the LED is obviously meant to be used in small or confined spaces and we don't want the resistor to get in the way. You can also ask us for suggestions on resistor selection for lower voltages or refer to our resistor charts on the specific LED product pages that will help with the optimal resistor to use with lower voltages.
These are provided in packs of 5. We typically do not believe in selling in preset packs, but in the case of the pre-wired LEDs it is best for us to package them this way for handling and ultimately it protects them during shipment.
The 0807 smd is very similar in size the to the 0805 smd led, but is a little wider to accommodate the IC that makes it flash. The LED will begin to flash as soon as you apply power to it. It will flash at a rate of 1.5Hz, which is about 90 times a minute. It will have about a 50/50 duty cycle. If you hook up more than one in parallel they will not flash in sync. They may start off that way, but will quickly get out of sync. The red color 0807 LED is a vibrant color that you can't go wrong with.
|Size||0807 / 0805 Pre-Wired SMD LED|
|Animation Type||Flashing / Blinking|
|Operating Voltage||9v-18v (Volts)|
|Wire Length||Approximately 15cm (6 inches)|
|Resistor Built In||Yes|
|Additional Resistors Required||No|
|Forward Voltage||9v-18v (volts)|
|Shrink Wrapped Connections||Yes|
|Viewing Angle||105-120 Degrees|
|LED Brightness Class||Super/Ultra/Extreme|
