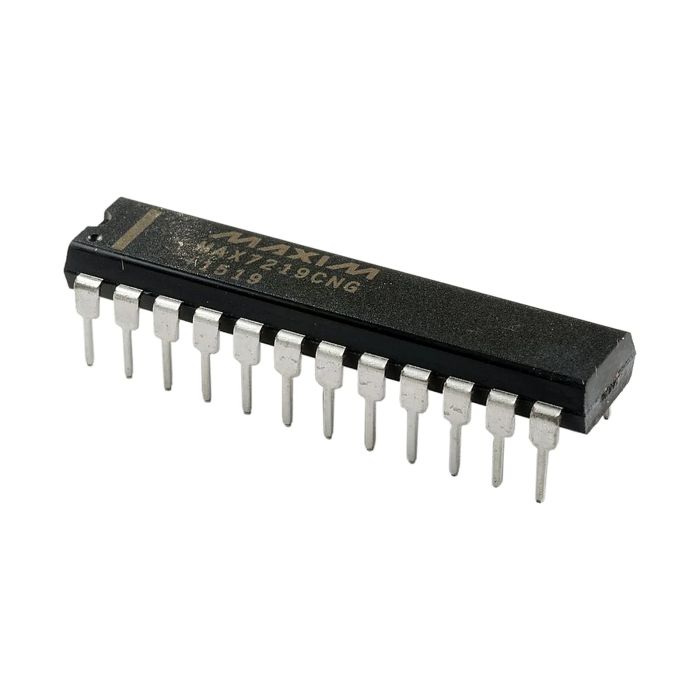

MAX7219 LED Driver IC — Drives Up to 64 LEDs via SPI, DIP-24
In stock
- SKU
- MAX7219CNG
- Color
- Red
- Material
- Silicon
- Buy 10 for $1.75 each and save 30%
- Buy 25 for $1.25 each and save 50%
Description / MAX7219 LED Driver IC — Drives Up to 64 LEDs via SPI, DIP-24

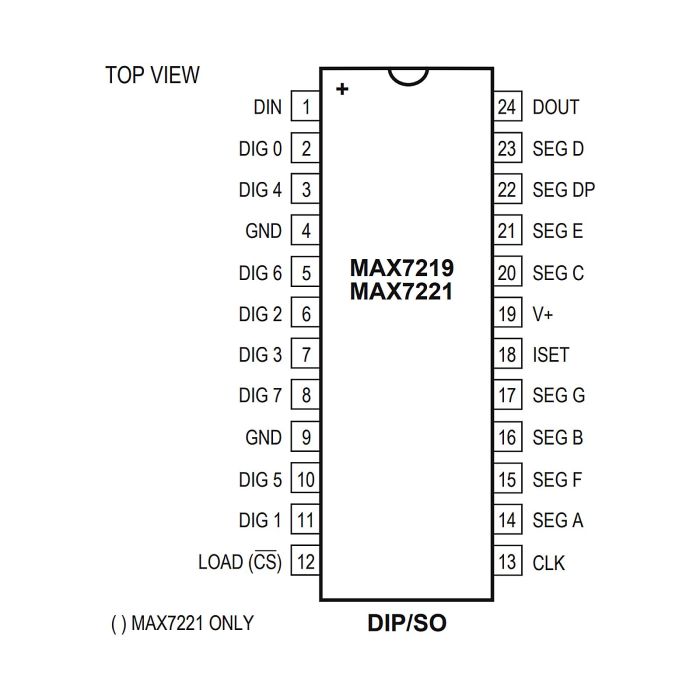

MAX7219CNG — LED driver IC that multiplexes up to 64 LEDs (8 digits x 8 segments) using SPI interface. Only 3 pins needed from a microcontroller: DIN, CLK, and LOAD/CS.
Built-in constant-current driver eliminates the need for individual current-limiting resistors — a single RSET resistor sets the drive current for all outputs. Daisy-chain multiple MAX7219 chips for 128+ LEDs.
Common uses: LED matrices, 7-segment displays, large LED arrays for model railroad layouts, holiday light controllers, and any project needing many individually controlled LEDs from minimal GPIO pins.
More Information
| Documentation Link | Documentation: MAX7219 Datasheet / Specifications |
|---|---|
| Dimensions | 30.2mm x 6.35mm (DIP-24) |
| Packing Type | Loose |
| Operating Temp. (Temperature) | 0C to 70C |
| Mount Style | DIP-24 Through Hole |
| Material | Silicon |
| Tolerance | N/A |
| Color | Red |
| Add. Tech. Specs. 1 | Max LEDs: 64 (8x8) |
| Add. Tech. Specs. 2 | Interface: SPI (3-wire) |
| Add. Tech. Specs. 3 | Supply: 4.0V-5.5V |
| Add. Tech. Specs. 4 | Max Current: 330mA |
| Add. Tech. Specs. 5 | Daisy-chainable |
