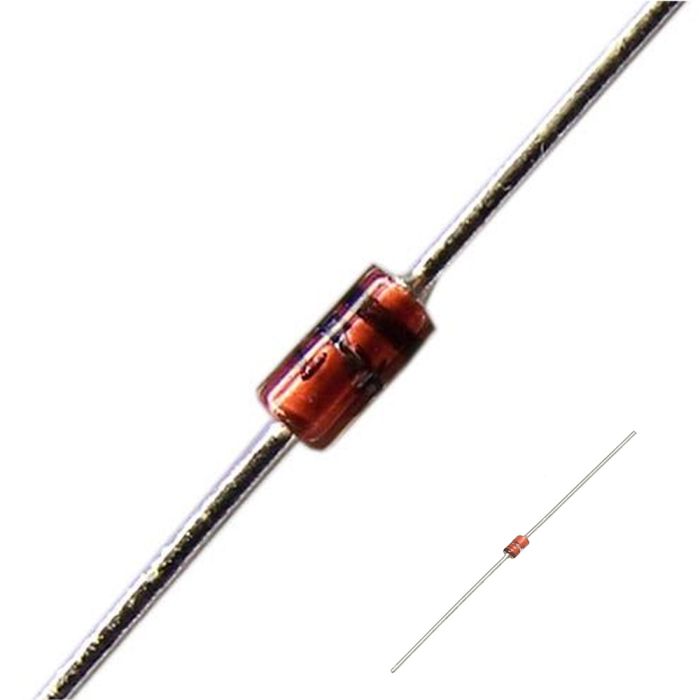

Zener Diode – 3.3v .5W Zener

In stock
  • Buy 10 for $0.14 each and save 7%
  • Buy 20 for $0.13 each and save 13%
  • Buy 50 for $0.12 each and save 20%
  • Buy 100 for $0.08 each and save 47%
  • Buy 1000 for $0.06 each and save 60%
A 3.3v 0.5w zener diode. It will allow current to flow in reverse at 3.3v
You may upload your own images that portray this specific product being used. We do ask that you do not watermark them in any way and such images will be declined. Images that are accepted may be used as product images, in tutorials, or other related articles. By uploading an image, you accept to these terms. These images may not directly represent the product on this page. The items shown may have been modified/changed and the images are shown for demonstration, ideas, and creativity only. Colors depicted in the photos may also be "skewed" from difficult nature of capturing true light colors with a camera.

Here we have a 3.3v 0.5w (watt) zener diode. If you are unfamiliar with diodes, they typically only allow current to flow in one direction. Of course, there are many different kinds and styles of diodes out there. The zener diode is special because it allows current to flow backwards or in reverse at a specific voltage and up to a certain amount. This particular zener diode will allow current to flow in the opposite direction that the diode normally freely allows current to flow when the reverse current reaches 3.3v (volts). The zener diode can reliably operate in this reverse state whereas other diodes are not typically meant to. Some textbook uses for them would be in waveform clippers, voltage shifters, and voltage regulators. Again, there is a myriad of other uses for the 3.3v 0.5w zener diode.

More Information
DimensionsApprox: 1.91 mm x 4.56 mm
Packing TypeAmmo Packed
Operating Temp. (Temperature)-65C to 200C
Mount StyleAxial - Through Hole
Tolerance5% Voltage
Add. Tech. Specs. 1Vz - Zener Voltage: 3.3V
Add. Tech. Specs. 2Pd - Power Dissipation: 500mW (0.5W)
Add. Tech. Specs. 3Zz - Zener Impedance: 28 ohms
Add. Tech. Specs. 4Test Current: 20mA
Add. Tech. Specs. 5Ir - Reverse Current: 25uA
