Isolated Dc to Dc Converter - 10V to 16V input - 12v Output - 84mA

$14.99
In stock
SKU
DCDCCONVERTER84MA12V
This is an extremely useful device for automotive applications. It will settle the voltage in your vehicle to a steady 12v for those picky LED installs.

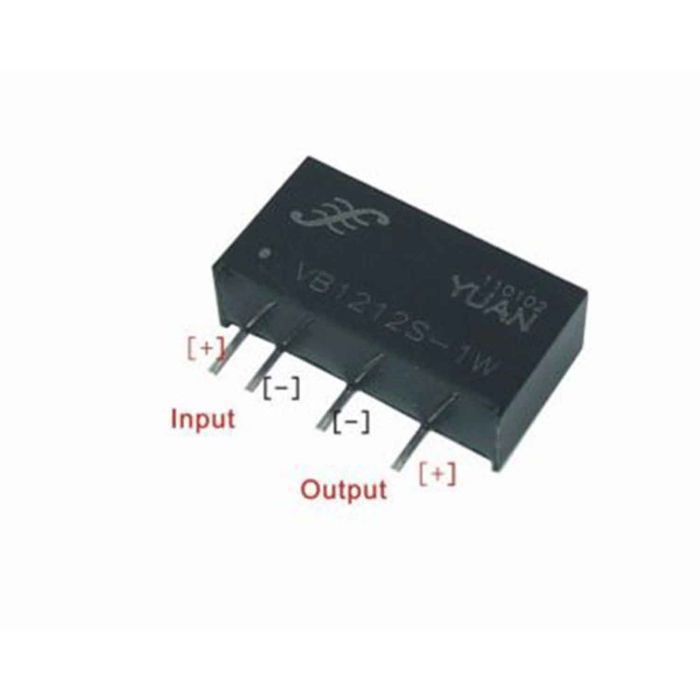

Isolated Power Module DC-DC Converter In 10-16V Out 12V

This is great for automotive application and will eliminate the constant battle with LEDs and the changing voltage in a vehicle. This is truly a great product. It will support up to 4 20mA LEDs wired "individually" or more if you wire them in series. Resistors are still required with this device, but you can calculate your resistors off of 12v since there will not be the typical voltage fluctuation.

Ideal for use with

  • Digital Current Meter, Avoid Common Ground Effect.
  • Other application that an isolation is necessary, Car, Boat, Bike etc.


Additional Features

  • Excellent Quality Power Source
  • High Power Density
  • Single Output Voltage
  • Industrial Standard Pin-Out
  • Regulated Output Voltage
  • PCB Mounting
  • Simple Install


Additional Specifications

  • Outline Dimensions: 19.60mmx6.00mmx10.00mm(Lx W x H)
  • Package: SIP
  • Input Voltage (VDC) Range: 10.8-13.2v DC
  • Nominal: 12.0
  • Max.: 16.0


Output

  • Max Current (mA)     84.0
  • Voltage (VDC)     12.0
  • Efficiency (%,Typ.)     68
More Information
CurrentMaximum 84mA (constant voltage drive)
Output Voltage12v (constant)
Input Voltage10-16 Volts DC
Drive ModeConstant Voltage
ColorN/A
