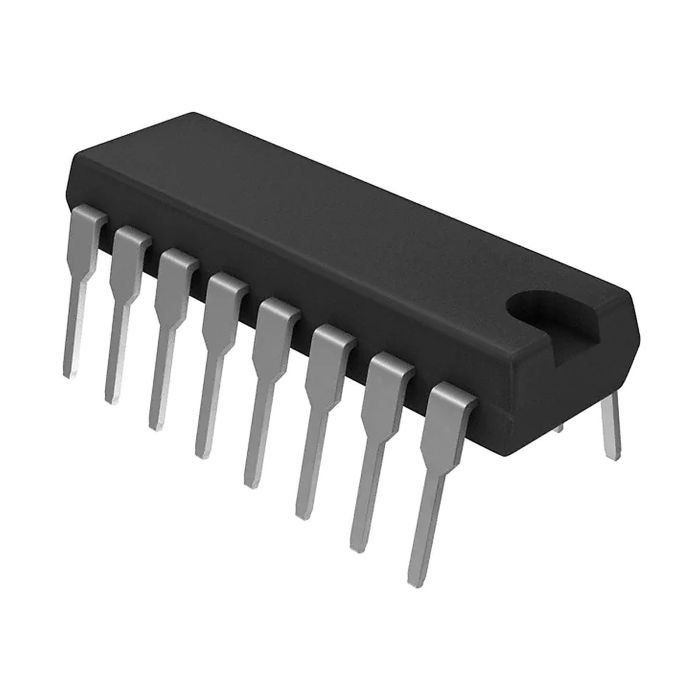

CD4017BE CMOS Decade Counter / Divider — 10 Sequential Outputs, DIP-16
In stock
- SKU
- CD4017BE
- Color
- Red
- Material
- CMOS
- Buy 10 for $0.85 each and save 32%
- Buy 25 for $0.55 each and save 56%
Description / CD4017BE CMOS Decade Counter / Divider — 10 Sequential Outputs, DIP-16

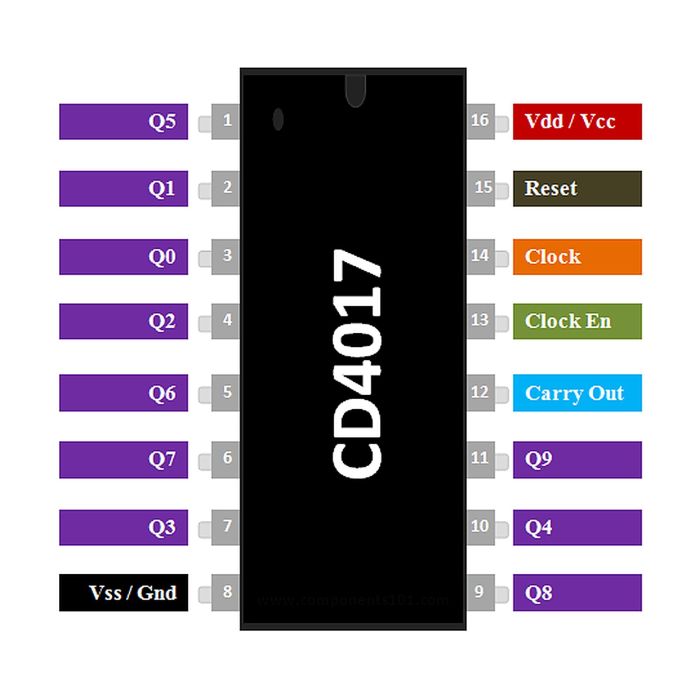

CD4017BE — CMOS decade counter/divider with 10 decoded outputs. Each clock pulse advances the active output one step (Q0 through Q9), creating a sequential walking pattern.
Pair with a 555 timer for the clock signal to build LED chasers, Knight Rider scanners, sequential turn signals, and running light displays. The 555 sets the speed, the CD4017 handles the sequencing — no microcontroller needed.
Common uses: LED chaser/scanner circuits, sequential lighting effects, decade counting, frequency division, and model railroad signal sequencing.
More Information
| Documentation Link | Documentation: CD4017BE Datasheet / Specifications |
|---|---|
| Dimensions | 20.2mm x 6.35mm (DIP-16) |
| Packing Type | Loose |
| Operating Temp. (Temperature) | -55C to 125C |
| Mount Style | DIP-16 Through Hole |
| Material | CMOS |
| Tolerance | N/A |
| Color | Red |
| Add. Tech. Specs. 1 | Outputs: 10 decoded |
| Add. Tech. Specs. 2 | Supply: 3V-15V |
| Add. Tech. Specs. 3 | Max Clock: 5.5MHz at 10V |
| Add. Tech. Specs. 4 | N/A |
| Add. Tech. Specs. 5 | N/A |
