ATtiny85-20PU 8-Bit AVR Microcontroller — DIP-8, 8KB Flash, 5 GPIO
In stock
- SKU
- ATTINY85-20PU
- Color
- Red
- Material
- Silicon
- Buy 10 for $3.50 each and save 22%
- Buy 25 for $2.75 each and save 39%
Description / ATtiny85-20PU 8-Bit AVR Microcontroller — DIP-8, 8KB Flash, 5 GPIO

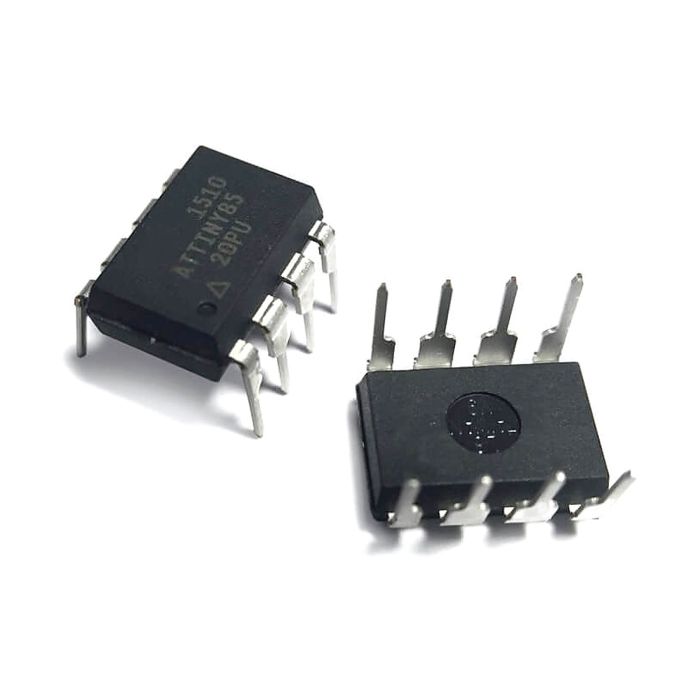

ATtiny85-20PU — 8-bit AVR microcontroller in a DIP-8 package. 8KB flash memory, 512 bytes SRAM, 5 usable GPIO pins (PB0-PB4). Runs at up to 20MHz.
The ATtiny85 is the go-to chip for small LED control projects that need more flexibility than a 555 timer but less complexity than a full Arduino. Program it using the Arduino IDE with the Digispark bootloader or a dedicated ISP programmer.
Common uses: programmable LED patterns, PWM dimming, sensor-driven lighting, replacing complex 555 timer circuits, and driving MAX7219 LED drivers via SPI.
More Information
| Documentation Link | Documentation: ATtiny85-20PU Datasheet / Specifications |
|---|---|
| Dimensions | 9.27mm x 6.35mm (DIP-8) |
| Packing Type | Loose |
| Operating Temp. (Temperature) | -40C to 85C |
| Mount Style | DIP-8 Through Hole |
| Material | Silicon |
| Tolerance | N/A |
| Color | Red |
| Add. Tech. Specs. 1 | Flash: 8KB |
| Add. Tech. Specs. 2 | SRAM: 512 Bytes |

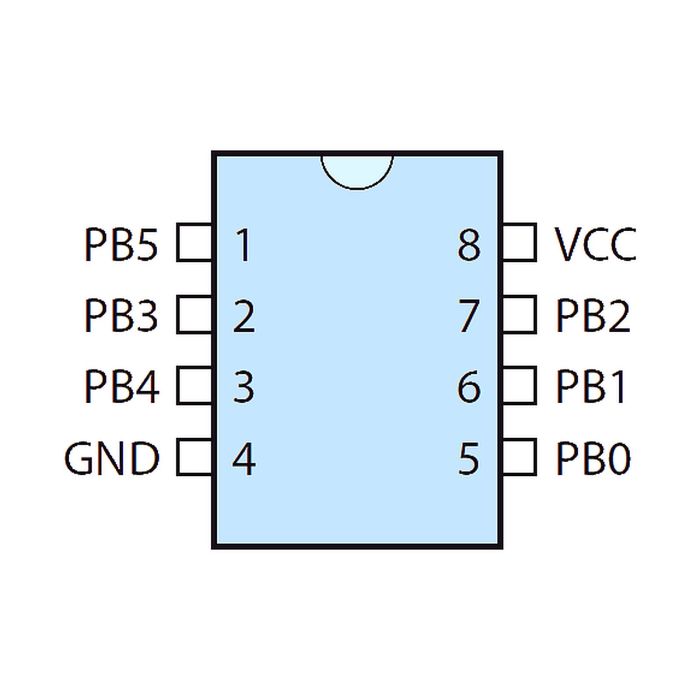

| Add. Tech. Specs. 3 | GPIO Pins: 5 (PB0-PB4) |
| Add. Tech. Specs. 4 | Clock: Up to 20MHz |
| Add. Tech. Specs. 5 | Voltage: 2.7V-5.5V |
