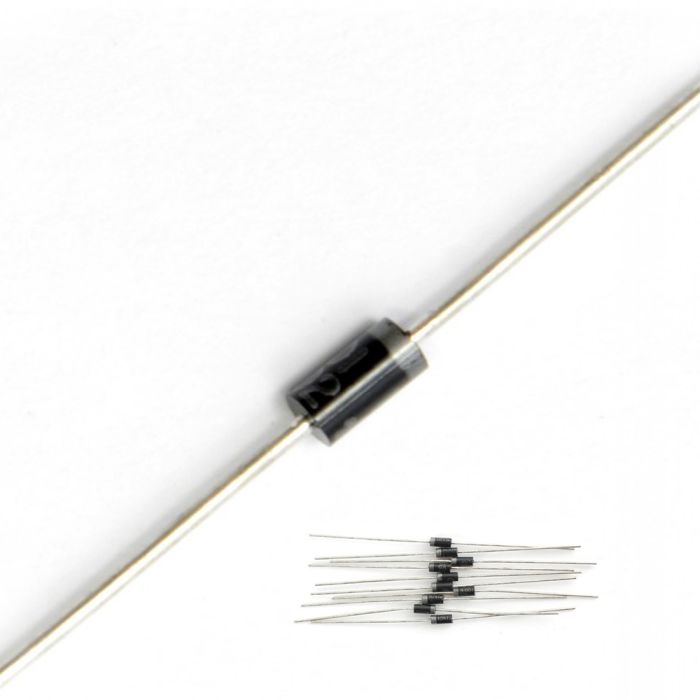

1N4001 Diode – 50V 1A

1N4001DIODE50V1A

Availability: In stock

$0.15

Quick Overview

1N4001 – 50V 1A diode to prevent reverse voltage, among many other uses.

1N4001 Diode – 50V 1A

More Views

  • Buy 10 for $0.14 each and save 7%
  • Buy 20 for $0.13 each and save 14%
  • Buy 50 for $0.12 each and save 20%
  • Buy 100 for $0.08 each and save 47%
  • Buy 1000 for $0.06 each and save 60%

Details

Here we have a general purpose diode, 1N4001. The 1N4001 is an extremely common diode used in many circuits and will surely be needed in your kit at some point, we can almost guarantee this. We have found them useful in many situations. If you are not familiar with what a diode is for then we can give you a quick explanation. This particular diode will help protect your small circuits from reverse voltage damage. Of course, there are many other uses and application for them as well. For instance, another simple example, is if you simply don't want current going a particular way in your circuit. This is an extremely easy solution.

The 1N4001 diode does have polarity. The line indicates the cathode or negative side and unmarked side is the anode or positive side. Current will flow freely through the diode from the positive through the negative side (marked with a line).

The forward voltage is the voltage drop across the diode if the voltage at the anode is more positive than the voltage at the cathode (if you connect + to the anode).

Additional Information

Size No
Dimensions Approx: 2.72mm x 5.21mm
Packing Type Ammo Packed
Operating Temp. (Temperature) -55C to 175C
Mount Style Axial - Through Hole
Material N/A
Tolerance N/A
Color N/A
Add. Tech. Specs. 1 Peak Reverse Voltage: 50V
Add. Tech. Specs. 2 Max Surge Current: 30A
Add. Tech. Specs. 3 If - Forward Current: 1A
Add. Tech. Specs. 4 Vf - Forward Voltage: 1.1V
Add. Tech. Specs. 5 Ir - Reverse Current: 5uA
