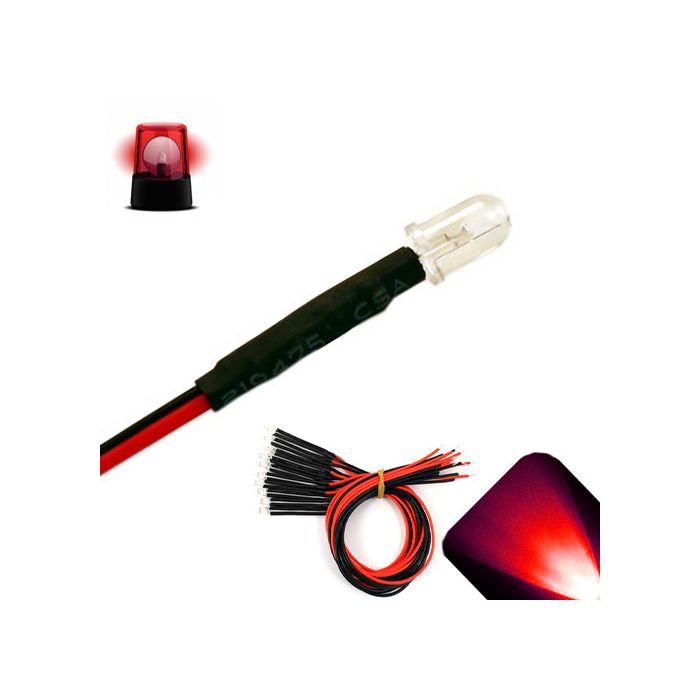

5mm 12v Pre-wired Flashing Red LED - Ultra Bright

Lighthouse LEDs 12V5MMFLASHINGPREWIREDRED

Availability: In stock

$0.48

Quick Overview

The 12v 5mm flashing red pre-wired LED makes it almost the easiest way to add light nearly any project. They will begin flashing as soon as power is hooked up.

5mm 12v Pre-wired Flashing Red LED - Ultra Bright

More Views

Details

Our pre-wired flashing LEDs are nothing but quality. The 12v 5mm red led puts out a nice color that is sure the illuminate your product or project. Our 5mm pre-wired leds have built in resistors so that they will work with the voltage that they are rated for. There is no need for you to add any additional resistors. The only thing you need to do is add power / ground and they will illuminate. It doesn't get much easier than that.

The 5mm pre-wired leds come with a built in resistor, all connections are heat shrinked in order to protect them and there is sufficient wire lead on all of them.

This is the flashing series of our 12v pre-wired leds. They will flash at the given rate as soon as power is hooked up to them, there is no need for any additional hardware (besides power) to make them flash.

Additional Information

Size 5mm Pre-Wired Round Top 12v Flashing
Color Red
Animation Type Flashing On/Off / 1-2Hz
Operating Voltage 12v (volts)
Wire Length Approximately 15cm (6 inches)
Resistor Built In Yes
Additional Resistors Required No
Luminosity/Brightness 11,000-13,000 mcd
Forward Voltage 12v (volts)
Shrink Wrapped Connections Yes
Current 20mA
Wavelength 620-630nm
Viewing Angle 20-30 Degrees
Mount Style Custom
Lens Color Clear
LED Brightness Class Super/Ultra/Extreme
