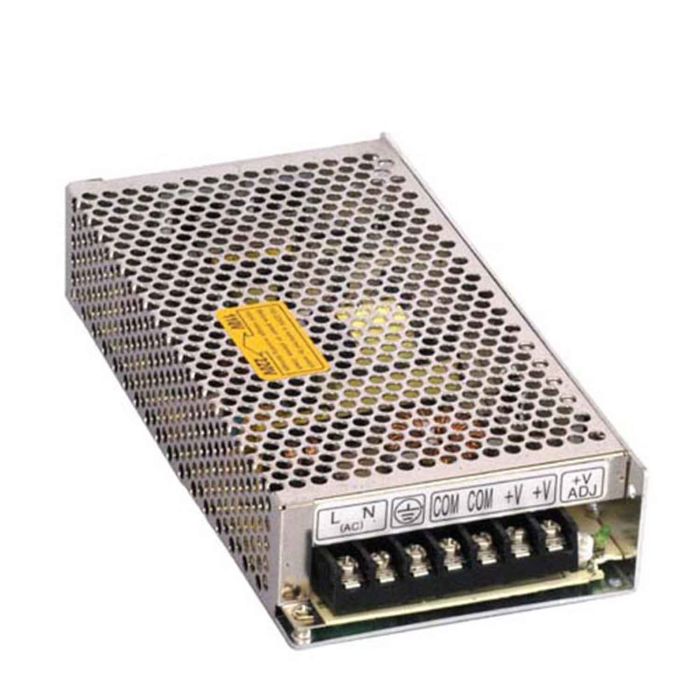

12v 8.5A LED Power Supply - AC to DC - 100 Watts

12v8.5ALEDPowerSupply

Availability: In stock

$49.99

Quick Overview

12v 8.5A LED Power Supply - AC to DC - 100 Watts

12v 8.5A LED Power Supply - AC to DC - 100 Watts

More Views

Details

A high quality power supply that takes AC (the power in your house, United States) and converts it to 12v DC, a very common and usable power source for powering leds or other projects. With this particular power supply you must wire up a plug to the appropriate connectors on the power supply. It is very simple. If you are looking for something more plug and play we have other power supplies that you simply plug into the wall as well, but they are more limited on how much current they can handle. This style is much more common for higher current outputs. These power supplies can be referred to as switching power supplies and constant voltage.

If you wire a "single" led at a time to this power supply (all in parallel) you can run about 318 leds off of this power supply. Here is how we figured this number. If you think of a single led consuming 20mA and the fact that this power supply can offer 8.5A (8500mA) then you can divide out the numbers. We recommend that you run the power supplies at only 75% of their max capacity for longevity purposes, for your project and leds.

(8500mA/20mA)*.75 = 318.75 LEDs*

Please note that if you use leds that aren't 20mA this number will change. There are also other ways to wire them up as well that will allow different numbers. Please see the differences in wiring leds up in series vs. parallel. For all practical purposes if you don't have much experience with wiring leds and want to get things lit up quickly just wire them all up as suggested above.



1. 105oC Output capacitor

2. AC input power suitable for the world

3. High efficiency and low operation temperature

4. Soft-start current can reduce the AC input impact effeciticly

5. With short-circuit and overload protection

6. Compact size, light weight

7. 100% full-load burn-in test

8. Installed with EMI filter, minimum wave

ModelS-100-12
DC output voltage 12V
Output voltage range(Note:2)±1%
Rated output current8.5A
Output current range0-8.5A
Wave and noise(Note:3)150mV
Inlet stability(Note:4)±0.3%
Load stability(Note:5)±0.3%
DC output power102W
Efficiency81%
Input current2.4A/115V 1.2A/230V
AC inrush currentCold-start current 30A/115V 60A/230V
Leakage current<1mA/240VAC
Overload protection105%~150%150%~200%105%~150%
Type: Output shutdown Reset: Recycle AC ON/OFF
Temperature coefficient±0.03%/°c(0~50°c)
Setup, rise , hold up time200ms,100ms, 30ms
Vibration10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltageInput and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC
Working temperature and humidity -10°c~+60°c(Refer to output derating curve), 20%~90%RH
Weight0.65Kgs
Safety standardsMeet UL 1012 requirementNot apply forr the mark
EMC standardsMeet FCC PART 15 J Conduction class B

Note:                                                                                                                                                                      1. The testing condition for the paramenter above is: 230VAC input, rated load, 25°c 70% RH. Temperature.

2. Error: include the setting error, line stability and load stability.(Note:5)

3. Wave test: adopting "A12" double wire for 20MHz, and 0.1UF&47UF capacitor short-circuit for interrupting.

4. Inlet voltage stability test: when is over load, the lowest voltage of inlet is up to the highest voltage.

5. Load stability test: The load is from 0% to 100%

*These numbers are based off of quick calculations, please be sure your power supply can handle your projects. These numbers are meant for demonstration purposes and we take no responsibility with what you do with them.
