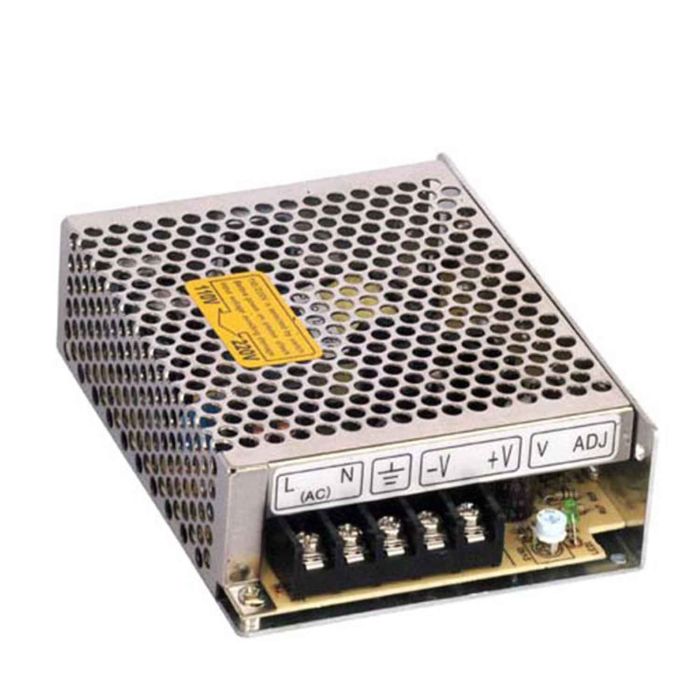

12v 3A LED Power Supply - AC to DC - 35 Watts

12v3ALEDPowerSupply

Availability: In stock

$29.99

Quick Overview

12v 3A LED Power Supply - AC to DC - 35 Watts

12v 3A LED Power Supply - AC to DC - 35 Watts

More Views

Details

A high quality power supply that takes AC (the power in your house, United States) and converts it to 12v DC, a very common and usable power source for powering leds or other projects. With this particular power supply you must wire up a plug to the appropriate connectors on the power supply. It is very simple. If you are looking for something more plug and play we have other power supplies that you simply plug into the wall as well, but they are more limited on how much current they can handle. This style is much more common for higher current outputs. These power supplies can be referred to as switching power supplies and constant voltage.

If you wire a "single" led at a time to this power supply (all in parallel) you can run about 112 leds off of this power supply. Here is how we figured this number. If you think of a single led consuming 20mA and the fact that this power supply can offer 3A (3000mA) then you can divide out the numbers. We recommend that you run the power supplies at only 75% of their max capacity for longevity purposes, for your project and leds.

(3000mA/20mA)*.75 = 112.5 LEDs*

Please note that if you use leds that aren't 20mA this number will change. There are also other ways to wire them up as well that will allow different numbers. Please see the differences in wiring leds up in series vs. parallel. For all practical purposes if you don't have much experience with wiring leds and want to get things lit up quickly just wire them all up as suggested above.

1)100% full load burn-in test
2)Universal AC input: 110/220± 20%
3)Fixed switching frequency at 47-63Hz
4)Protections: Short circuit/Overload/Over voltage
5)Approvals: CE
6)Size: 129*98*38mm
7)2 years warranty



Specification         12v-3A
DC output     12V  3A
Wave and noise  50mVp-p
Inlet stability     ±0.5%
Load stability     ±0.5%
Efficiency        76%
AC input voltage range 85-132VAC/170-264VAC  47-63Hz
AC Inrush currentCold-start current  18A/115V  36A/230V
OverLoad protection         105%-150% hiccup mode,auto-recovery
Setup,rise,hold up time200ms,100ms,30ms at full load and 230VAC
Withstand voltage  I/P-O/P:3Kv    I/P-FG:1.5KV   O/P-FG:0.5KV   1minute
Isolation resistanc I/P-O/P   IP/FG   OP-FG:500VDC/100M
Working temperature-10ºC—+50ºC
Safety StandardsDesign refer to GB4943,UL60950,EN60950
EMC Standards Design refer to GB9254,EN55022 Class B
Weight0.4Kg



*These numbers are based off of quick calculations, please be sure your power supply can handle your projects. These numbers are meant for demonstration purposes and we take no responsibility with what you do with them.
