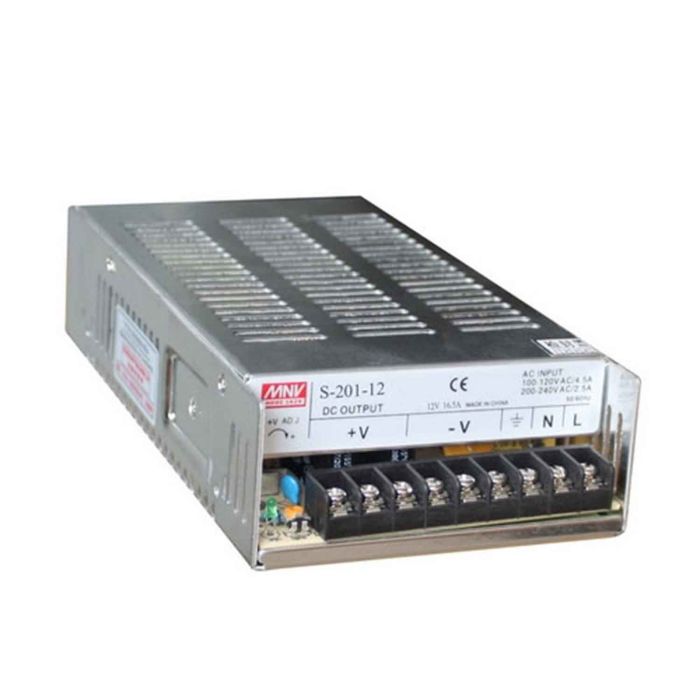

12v 16.5A LED Power Supply - AC to DC - 200 Watts

12v 16.5A LED Power Supply - AC to DC - 200 Watts

More Views

Details

A high quality power supply that takes AC (the power in your house, United States) and converts it to 12v DC, a very common and usable power source for powering leds or other projects. With this particular power supply you must wire up a plug to the appropriate connectors on the power supply. It is very simple. If you are looking for something more plug and play we have other power supplies that you simply plug into the wall as well, but they are more limited on how much current they can handle. This style is much more common for higher current outputs. These power supplies can be referred to as switching power supplies and constant voltage.

If you wire a "single" led at a time to this power supply (all in parallel) you can run about 618 leds off of this power supply. Here is how we figured this number. If you think of a single led consuming 20mA and the fact that this power supply can offer 16.5A (16,500mA) then you can divide out the numbers. We recommend that you run the power supplies at only 75% of their max capacity for longevity purposes, for your project and leds.

(16,500mA/20mA)*.75 = 618.75 LEDs*

Please note that if you use leds that aren't 20mA this number will change. There are also other ways to wire them up as well that will allow different numbers. Please see the differences in wiring leds up in series vs. parallel. For all practical purposes if you don't have much experience with wiring leds and want to get things lit up quickly just wire them all up as suggested above.

  • 105oC Output capacitor
  • AC input power suitable for the world
  • High efficiency and low operation temperature
  • Soft-start current can reduce the AC input impact effecticly
  • With short-circuit and overload protection
  • Compact size, ligh weight
  • 100% full-load burn-in test
  • Installed with EMI filter, minimum wave

Model 12V- 16.5A
DC output voltage12V
Output voltage range(Note:2)±1%
Rated output current16.5A
Output current range0-16.5A
Wave and noise(Note:3)150mVp-p
Inlet stability(Note:4)±0.5%
Load stability(Note:5)±0.5%
DC output power198W
Efficiency80%
Input current3.6A/115V 1.8A/230V
AC inrush current25A/115V50A/230V
Leakage current<3.5mA/240VAC
Overload protection105%~150% Type: pulsing hiccup shutdown Reset: auto recovery
High-temperature protectionERH3≥90°c output shutdown
Temperature coefficient±0.03%/°c(0~50°c)
Setup, rise , hold up time200ms,100ms, 20ms
Vibration10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltageInput and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC
Working temperature and humidity -10°c~+60°c(Refer to output derating curve), 20%~90%RH
Weight0.9Kgs
Safety standardsDesign ferer to UL 1950
EMC standardsDesign refer to FCC Part15 J Part15J classA

Note:                                                                                                                                                                1. The testing condition for the parameter above is: 230VAC input, rated load, 25°c 70% RH.Temperatuer.                                                                                                                                            2. Error: include the setting error, line stability and load stability.(Note:5).

3.Wave test: adopting "A12" double wire for 20 MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.                                                                                                                                                    4. Inlet voltage stability test: wht is overload, the lowest voltage of inlet is up to the highest voltage.

5. Load stability test: The load is from 0% to 100%

*These numbers are based off of quick calculations, please be sure your power supply can handle your projects. These numbers are meant for demonstration purposes and we take no responsibility with what you do with them.
